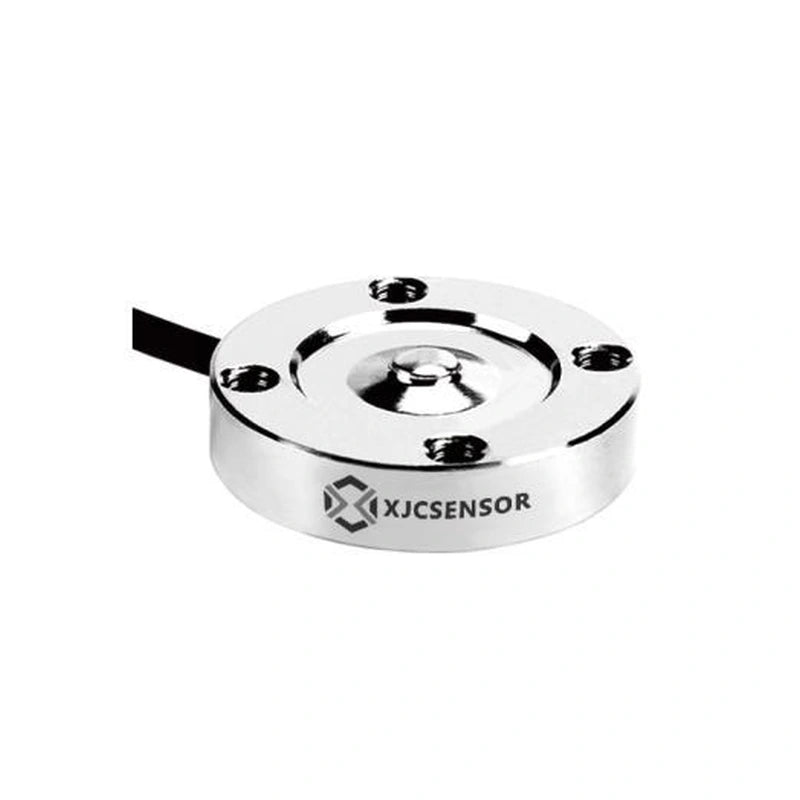

XJCSENSOR X-C01-20-H5 Low-Profile Button Load Cell, Ø20 × 5 mm flange-mount, 5–100 kg
By XJCSENSOR
Model: X-C01-20-H5
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-C01-20-H5 is a low-profile button load cell (Ø20 × 5 mm), available from 5kg to 100kg, with mV/V (0.5–1.5 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 kg
- Capsule structure with robust pressure-bearing design and simplified installation
- Stainless steel construction
- Small size
- High response frequency
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg; 100kg |
|---|---|
| Output | mV/V (0.5–1.5 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.5% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.5% F.S./10 °C / ≤0.5% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 350±5 Ω (1000±100 Ω) / 350±5 Ω (1000±100 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø20 × 5 (body 4.5); Ø3 button, SR15 |
| Mounting | 4×M2.5 through EQS on Ø16.5 PCD |
| Connection | Ø2×4 m |
Capacity options
5kg; 10kg; 20kg; 50kg; 100kg
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
