XJCSENSOR X-B78 Long Plate Compression Load Cell, 20 t
By XJCSENSOR
Model: X-B78
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

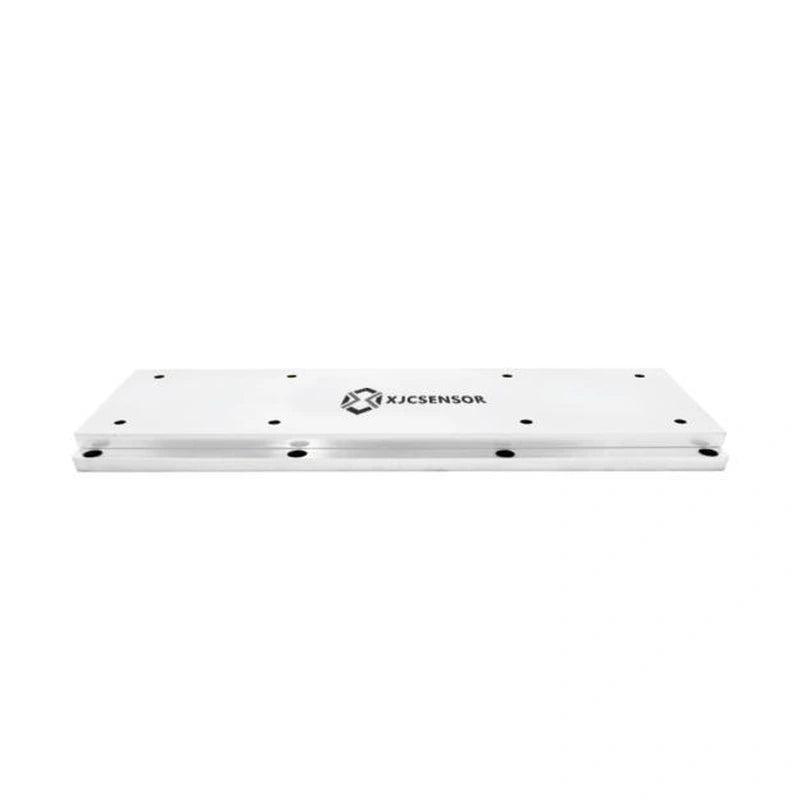

The XJCSENSOR X-B78 is a long plate compression load cell (760 × 190 mm), rated 20t, with mV/V (0.8–1.2 mV/V rated output) strain-gauge output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–20 t
- Robust pressure-bearing structure with simplified installation
- High precision and high stability
Specifications
| Capacity | 20t |
|---|---|
| Output | mV/V (0.8–1.2 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 5–10 VDC (max 10 VDC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Alloy steel |
| Dimensions | 760 × 190 (170) × 25; 45 overall height |
| Mounting | 8×Ø10 through with Ø30 depth 25 (bottom); 10×Ø9 through with Ø15 depth 9; 600 / 700 / 200 / 350 pitches |
| Connection | Ø5×5 m |
Capacity options
20t
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).
