Product details
Overview

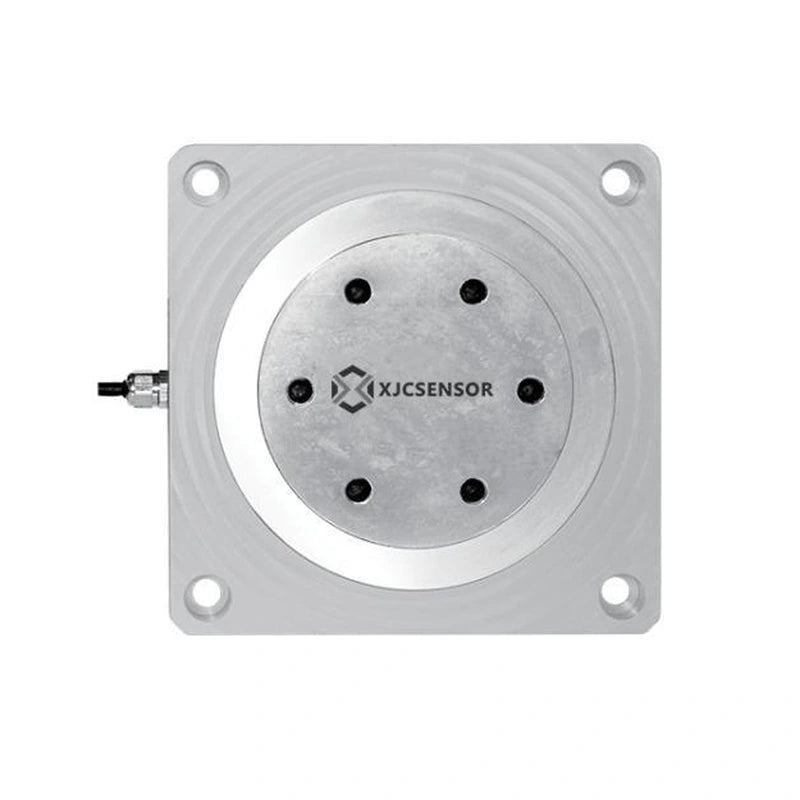

The XJCSENSOR X-B-L150-W150-H16.8 is a low-profile platform load cell (150 × 150 × 16.8 mm), available from 0.5t to 5t, with mV/V (2.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–5 t
- Shear beam structure with robust pressure-bearing design and simplified installation
- High precision and high stability
- Alloy steel
- Compact, low installed height
- High response frequency
Specifications
| Capacity | 0.5t; 1t; 2t; 5t |
|---|---|
| Output | mV/V (2.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.5% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 750±50 Ω / 700±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Alloy steel |
| Dimensions | 150 × 150 × 16.8; Ø96 centre disc; 126 hole spacing; 4×C5 corners |
| Mounting | 6×M8 through EQS on Ø70 PCD; 2×M8 (64 spacing); 4×Ø14 depth 9.5 / 4×Ø9.5 through corner holes |
| Connection | Ø4×4 m |
Capacity options
0.5t; 1t; 2t; 5t
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
