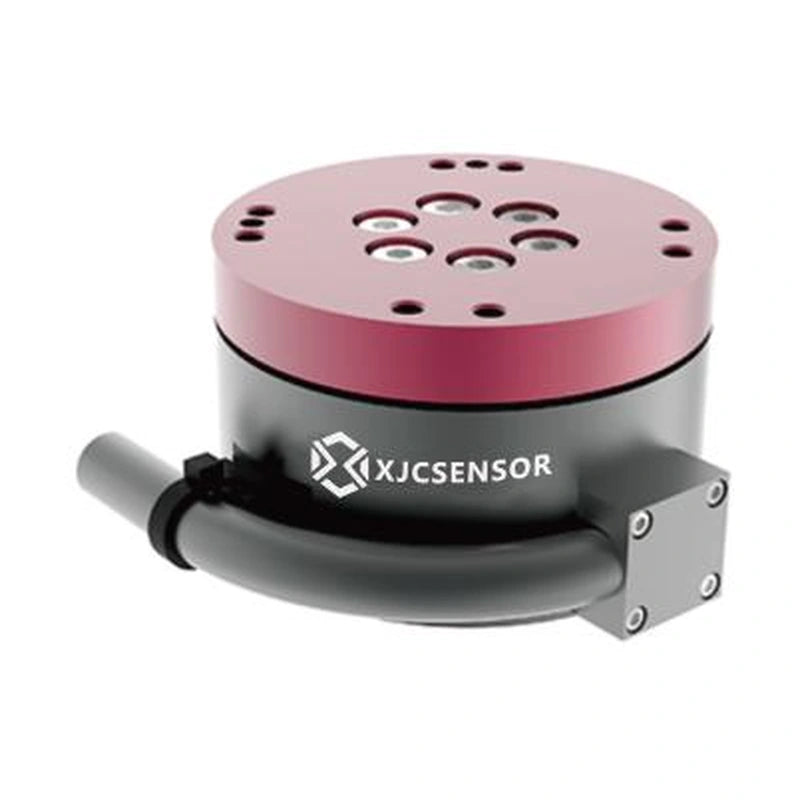

XJCSENSOR X-6A-XD60-H37-B 6-Axis Force/Torque Sensor, Ø60 mm, RS485
By XJCSENSOR
Model: X-6A-XD60-H37-B
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-6A-XD60-H37-B is a 6-axis force/torque sensor (Ø60 × 37 mm), rated 200N/200N/200N and 10Nm/10Nm/10Nm (Fx/Fy/Fz; Mx/My/Mz), with RS485 output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Decoupled structure with low long-term crosstalk error and strong long-term stability
Specifications
| Capacity | 200N/200N/200N 10Nm/10Nm/10Nm |
|---|---|
| Output | RS485 |
| Nonlinearity | ≤1% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 24 VDC |
| Protection | IP63 |
| Safe / ultimate load | 300% F.S. |
| Long-term crosstalk error | ≤2% F.S. (after decoupling) |
| Operating temperature | −25~85 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Aluminum alloy |
| Dimensions | Ø60 × 37 (plus 5 mm flange; load plane 14.5) |
| Mounting | 8×M4 depth 9 on Ø51 PCD; 2×Ø3 depth 4 and 2×Ø3 depth 6 locating pins; 8×M4×20 hexagonal screws |
| Connection | Ø5×3 m |
Capacity options
| Fx | Fy | Fz | Mx | My | Mz |
|---|---|---|---|---|---|
| 200N | 200N | 200N | 10Nm | 10Nm | 10Nm |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Red 24V+; Black GND; Green RS485A+; White RS485B-.
