XJCSENSOR X-6A-D70-H25 6-Axis Force/Torque Sensor, Ø70 mm, 5 kN, RS485
By XJCSENSOR
Model: X-6A-D70-H25
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

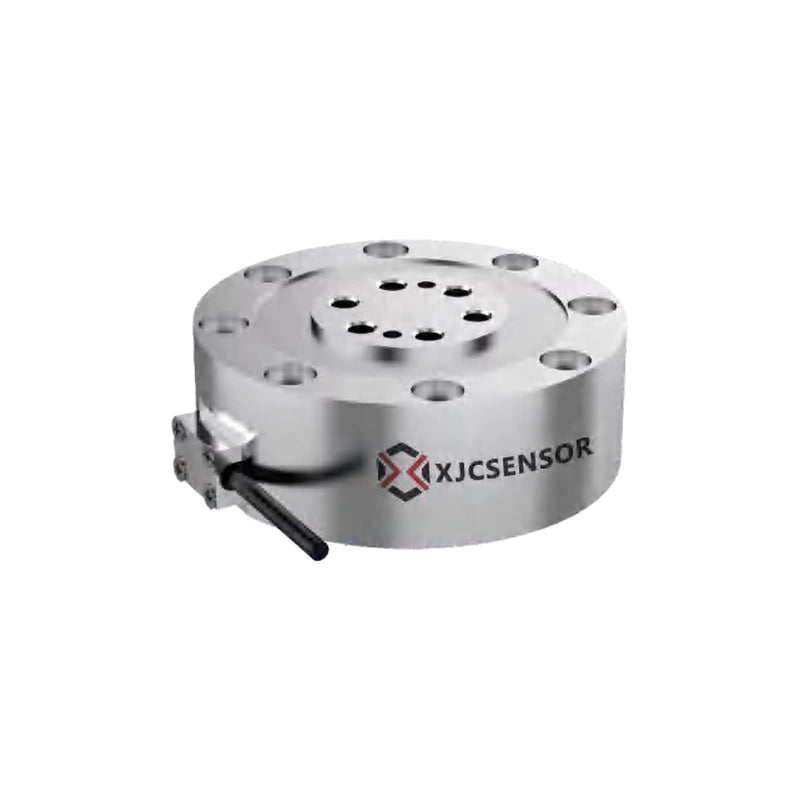

The XJCSENSOR X-6A-D70-H25 is a 6-axis force/torque sensor (Ø70 × 25 mm), rated 5000N/5000N/5000N and 200Nm/200Nm/200Nm (Fx/Fy/Fz; Mx/My/Mz), with RS485 output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Compensated strain gauge
- Decoupled structure with low long-term crosstalk error
Specifications
| Capacity | 5000N/5000N/5000N 200Nm/200Nm/200Nm |
|---|---|
| Output | RS485 |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 48 VDC |
| Protection | IP63 |
| Safe / ultimate load | 300% F.S. |
| Long-term crosstalk error | ≤3% F.S. (after decoupling) |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Stainless steel |
| Dimensions | Ø70 × 25 (body 24); Ø32 bore |
| Mounting | 6×M5 depth 10 EQS on Ø60 PCD; 8×Ø4.2 through / 8×Ø8 depth 5 EQS; 2×Ø3 depth 3 locating pins; 60±0.02 / 22±0.02 spacing |
| Connection | Ø3×7 m |
Capacity options
| Fx | Fy | Fz | Mx | My | Mz |
|---|---|---|---|---|---|
| 5000N | 5000N | 5000N | 200Nm | 200Nm | 200Nm |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Red 48V+; Black GND; Green RS485A+; White RS485B-.
