Product details
Overview

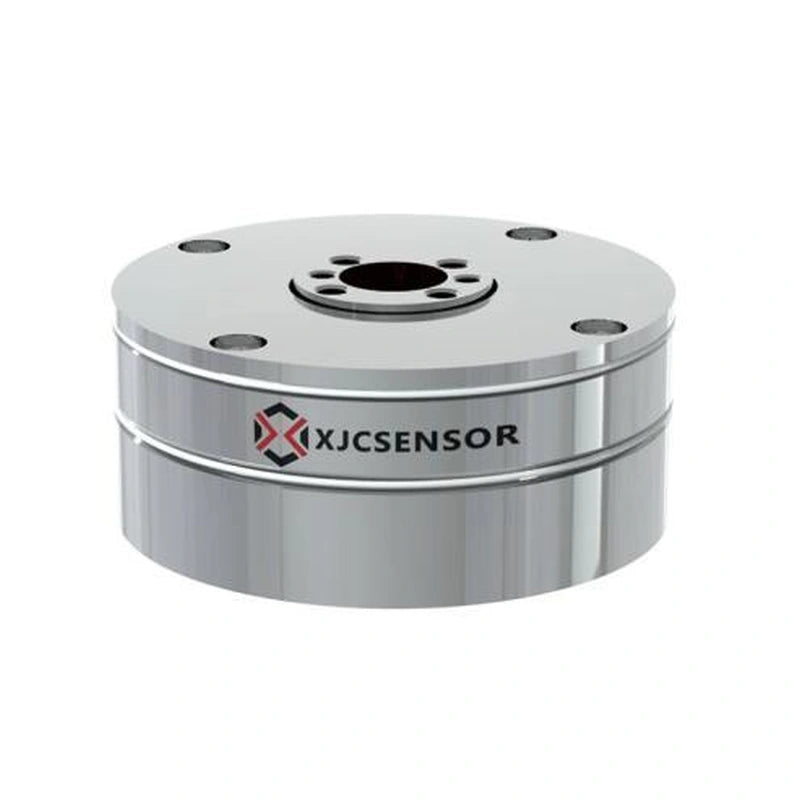

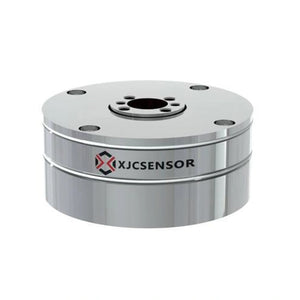

The XJCSENSOR X-6A-D62-H27-C is a 6-axis force/torque sensor (Ø62 × 27 mm), available from 100N to 1000N per axis (2Nm to 20Nm torque), with mV/V output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Compensated strain gauge
- Decoupled structure with low long-term crosstalk error
Specifications
| Capacity | 100N/100N/100N 2Nm/2Nm/2Nm; 200N/200N/200N 4Nm/4Nm/4Nm; 500N/500N/500N 10Nm/10Nm/10Nm; 1000N/1000N/1000N 20Nm/20Nm/20Nm |
|---|---|
| Output | mV/V (0.3–1.0 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 300% F.S. |
| Long-term crosstalk error | ≤3% F.S. (after decoupling) |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Stainless steel |
| Dimensions | Ø62 × 27 (body 26); Ø12 through bore; load plane 10 |
| Mounting | 4×M4 depth 8 EQS on Ø53 PCD (base) and on Ø17 PCD (top); 2×Ø3 depth 3 locating pins |
| Connection | Ø4.5×0.5 m + 14-pin plug + Ø4.5×7 m |
Capacity options
| Fx | Fy | Fz | Mx | My | Mz |
|---|---|---|---|---|---|
| 100N | 100N | 100N | 2Nm | 2Nm | 2Nm |
| 200N | 200N | 200N | 4Nm | 4Nm | 4Nm |
| 500N | 500N | 500N | 10Nm | 10Nm | 10Nm |
| 1000N | 1000N | 1000N | 20Nm | 20Nm | 20Nm |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
PIN1 Exc+ Red; PIN2 Exc- Black; PIN3 Fx+ Yellow; PIN4 Fx- Black; PIN5 Fy+ Blue; PIN6 Fy- Black; PIN7 Fz+ White; PIN8 Fz- Black; PIN9 Mx+ Yellow; PIN10 Mx- Brown; PIN11 My+ Blue; PIN12 My- Brown; PIN13 Mz+ White; PIN14 Mz- Brown.
