XJCSENSOR X-6A-D50-H17-E 6-Axis Force/Torque Sensor, Ø50 mm, IP65
By XJCSENSOR
Model: X-6A-D50-H17-E
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

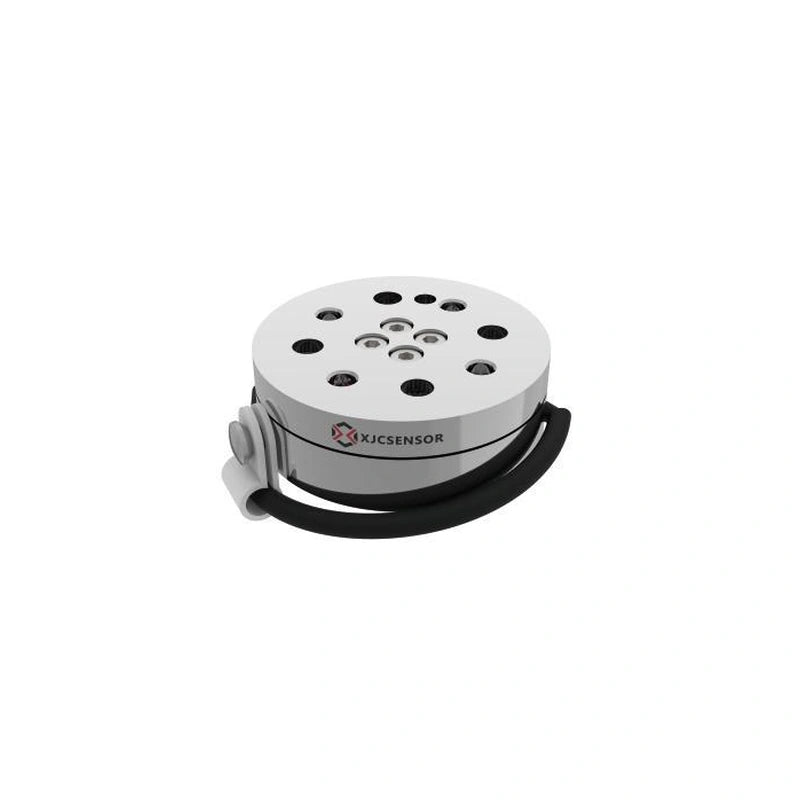

The XJCSENSOR X-6A-D50-H17-E is a 6-axis force/torque sensor (Ø50 × 17 mm), rated 250N/250N/250N and 5Nm/5Nm/5Nm (Fx/Fy/Fz; Mx/My/Mz), with mV/V output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Decoupled structure with low long-term crosstalk error and strong long-term stability
Specifications
| Capacity | 250N/250N/250N 5Nm/5Nm/5Nm |
|---|---|
| Output | mV/V (0.5–1.5 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.05% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 5 VDC |
| Protection | IP65 |
| Safe / ultimate load | 200% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Stainless steel |
| Dimensions | Ø50 × 17 |
| Mounting | 4×M5 depth 5 EQS on Ø31.5 PCD; 2×Ø4 H7 depth 4 locating pins; hexagonal screws 4×M5×10; 15.75±0.02 spacing |
| Connection | Ø4.5×7 m (first 50 cm covered with transparent silicone tube) |
Capacity options
| Fx | Fy | Fz | Mx | My | Mz |
|---|---|---|---|---|---|
| 250N | 250N | 250N | 5Nm | 5Nm | 5Nm |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
PIN1 Exc+ Red; PIN2 Exc- Black; PIN3 Fx+ Yellow; PIN4 Fx- Black; PIN5 Fy+ Blue; PIN6 Fy- Black; PIN7 Fz+ White; PIN8 Fz- Black; PIN9 Mx+ Yellow; PIN10 Mx- Brown; PIN11 My+ Blue; PIN12 My- Brown; PIN13 Mz+ White; PIN14 Mz- Brown.
