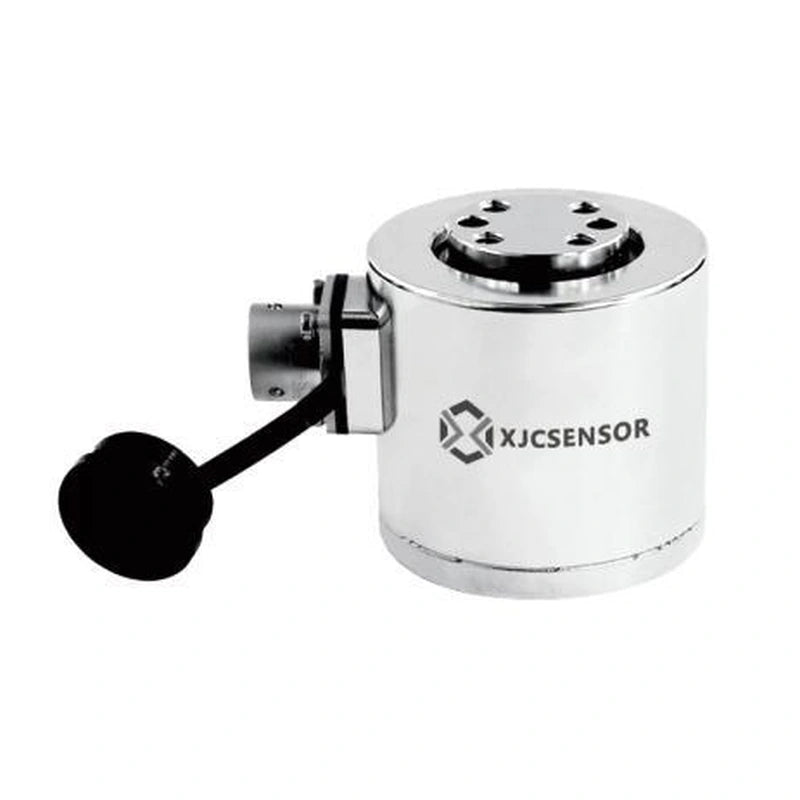

XJCSENSOR X-3A-Y46 3-Axis Force Sensor, column type, 5–50 kg
By XJCSENSOR
Model: X-3A-Y46
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-3A-Y46 is a 3-axis force sensor (Ø46 × 46 mm), available from 5kg to 50kg per axis, with mV/V output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Upper and lower flange faces; rigid, stable structure
- Low crosstalk error and strong long-term stability
Specifications
| Capacity | 5kg/5kg/5kg; 10kg/10kg/10kg; 20kg/20kg/20kg; 50kg/50kg/50kg |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤1% F.S. |
| Repeatability | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 150% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Stainless steel |
| Dimensions | Ø46 × 46 (plus 3 mm); Ø24 side connector boss |
| Mounting | 6×M4 depth 6 on Ø36 PCD; 4×M4 depth 6 EQS on Ø17 PCD; 2×Ø4 H7 depth 5.6 locating pins (both ends) |
| Connection | Ø6×5 m |
Capacity options
| Fx | Fy | Fz |
|---|---|---|
| 5kg | 5kg | 5kg |
| 10kg | 10kg | 10kg |
| 20kg | 20kg | 20kg |
| 50kg | 50kg | 50kg |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Voltage: Exc+ Red / Exc- Black. Fx: Sig+ Gray / Sig- Green. Fy: Sig+ Brown / Sig- Yellow. Fz: Sig+ White / Sig- Blue.
