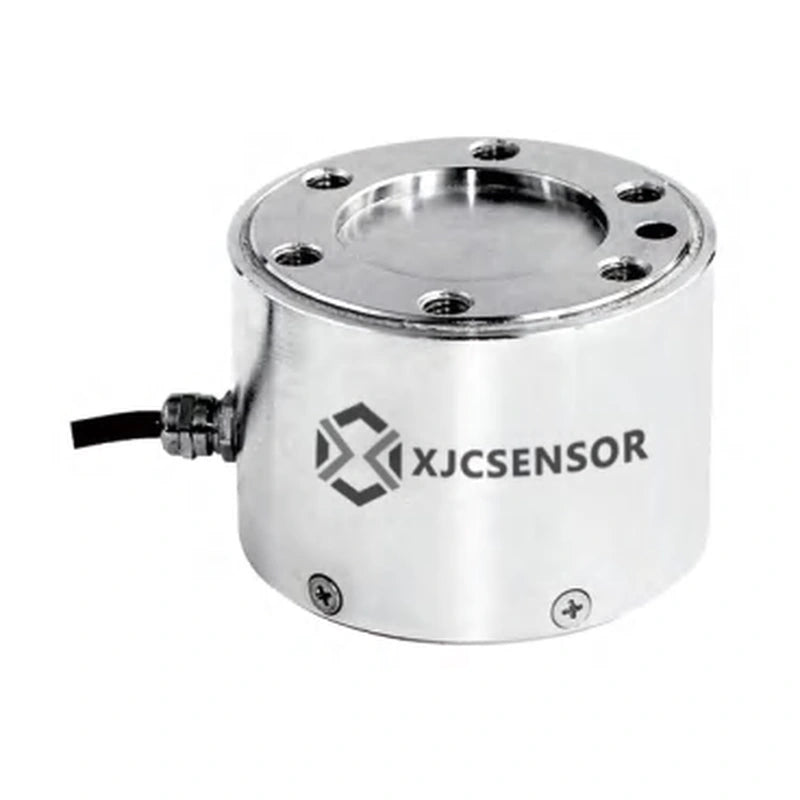

XJCSENSOR X-3A-Y100 3-Axis Force Sensor, column type, 5–50 kN
By XJCSENSOR
Model: X-3A-Y100
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-3A-Y100 is a 3-axis force sensor (Ø100 flanges mm), available from 5kN to 20kN per axis, with mV/V output.
Features
- Quick response
- Large measuring range
- High-precision resistance strain gauge measuring principle
- Upper and lower flange faces; rigid, stable structure
- Low crosstalk error and strong long-term stability
Specifications
| Capacity | 5kN/5kN/10kN; 10kN/10kN/25kN; 20kN/20kN/50kN |
|---|---|
| Output | mV/V (1.0±10% mV/V rated output) |
| Nonlinearity | ≤1% F.S. |
| Repeatability | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 150% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Stainless steel |
| Dimensions | Ø100 flanges (Ø90 body) × 72; Ø55 H7 bore |
| Mounting | 12×M10 depth 12 EQS on Ø75 PCD (both top and bottom) |
| Connection | Ø6×4 m |
Capacity options
| Fx | Fy | Fz |
|---|---|---|
| 5kN | 5kN | 10kN |
| 10kN | 10kN | 25kN |
| 20kN | 20kN | 50kN |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Voltage: Exc+ Red / Exc- Black. Fx: Sig+ Gray / Sig- Green. Fy: Sig+ Brown / Sig- Yellow. Fz: Sig+ White / Sig- Blue.
🛠
