XJCSENSOR X-3A-D62-H27-A 3-Axis Force Sensor, Ø62 mm, 500–1000 N
By XJCSENSOR
Model: X-3A-D62-H27-A
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview

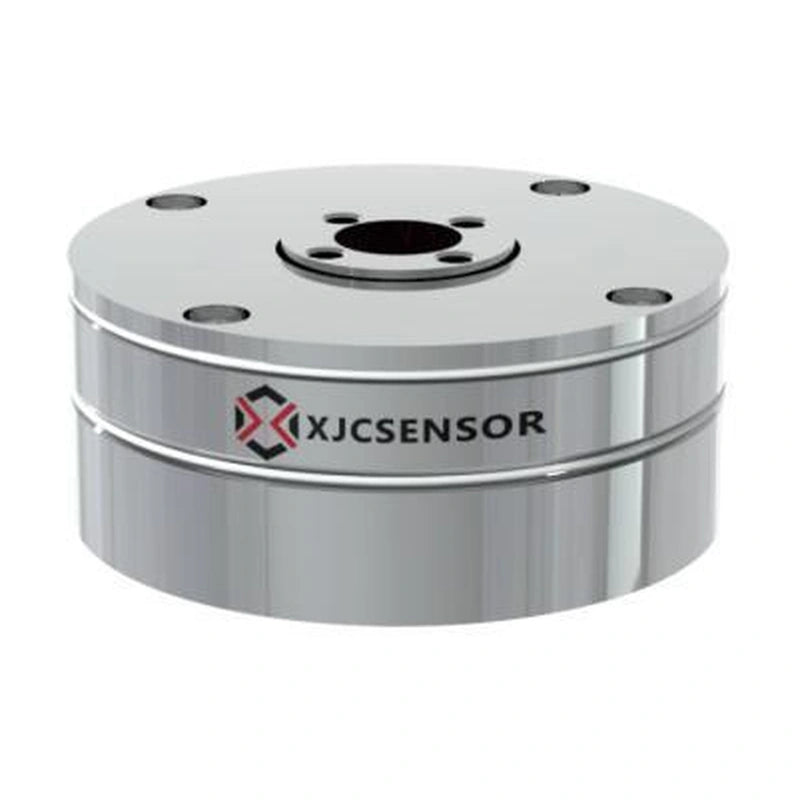

The XJCSENSOR X-3A-D62-H27-A is a 3-axis force sensor (Ø62 × 27 mm), available from 500N to 1000N per axis, with mV/V output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Decoupled structure with low long-term crosstalk error
Specifications
| Capacity | 500N/500N/500N; 1000N/1000N/1000N |
|---|---|
| Output | mV/V (0.3–1.0 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 300% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Stainless steel |
| Dimensions | Ø62 × 27 (body 26); Ø12 bore; load plane 18 |
| Mounting | 4×M4 depth 8 EQS on Ø53 PCD (base) and on Ø17 PCD (top) |
| Connection | Ø4×3 m |
Capacity options
| Fx | Fy | Fz |
|---|---|---|
| 500N | 500N | 500N |
| 1000N | 1000N | 1000N |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Power: Exc+ Red / Exc- Black. X signal: Sig+ Green / Sig- White. Y signal: Sig+ Blue / Sig- Yellow. Z signal: Sig+ Brown / Sig- Gray.
🛠
