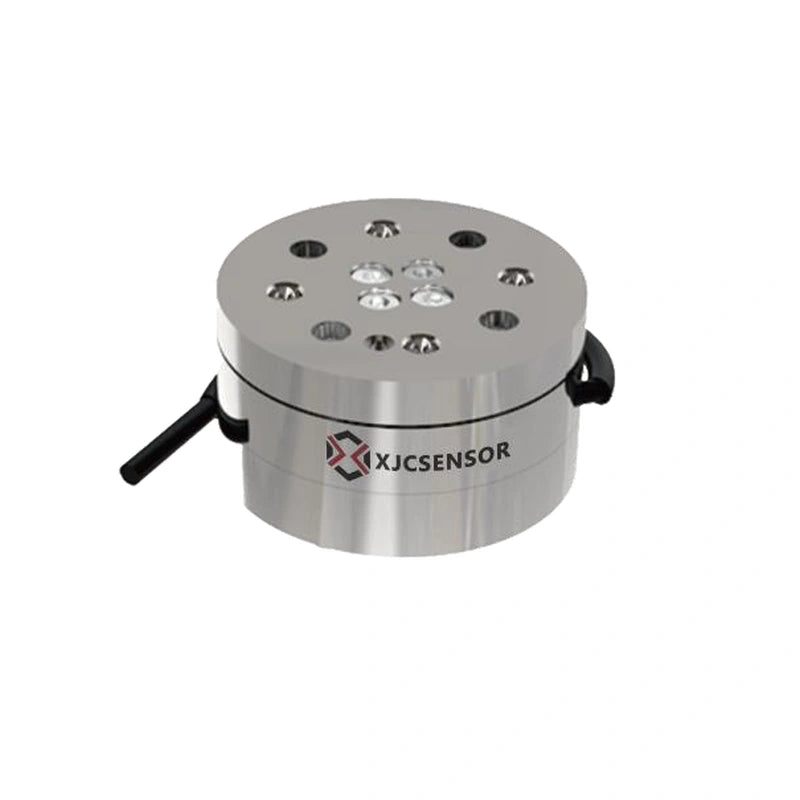

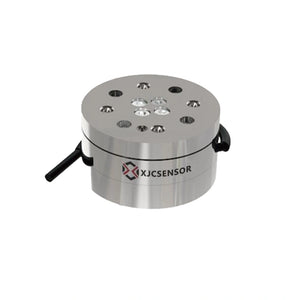

XJCSENSOR X-3A-D50-H17-B 3-Axis Force Sensor, Ø50 mm, with adapter plate
By XJCSENSOR
Model: X-3A-D50-H17-B
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-3A-D50-H17-B is a 3-axis force sensor (Ø50 × 17 mm), rated 250N/250N/250N (Fx/Fy/Fz), with mV/V output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Decoupled structure with low long-term crosstalk error and strong long-term stability
Specifications
| Capacity | 250N/250N/250N |
|---|---|
| Output | mV/V (0.5–1.5 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 200% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Stainless steel |
| Dimensions | Ø50 × 17 (plus 16 mm); adapter plate Ø50 × 12.5; load plane 12 |
| Mounting | 4×M5 depth 5 EQS on Ø31.5 PCD; 2×Ø4 H7 depth 4 locating pins; 4×M5×20 hexagon socket screws. Adapter plate: 4×Ø5.5 through, Ø5 H7 depth 7, 2×Ø4 H7 depth 3 reverse side |
| Connection | Ø3×4 m |
Capacity options
| Fx | Fy | Fz |
|---|---|---|
| 250N | 250N | 250N |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Power: Exc+ Red / Exc- Black. X signal: Sig+ Green / Sig- White. Y signal: Sig+ Blue / Sig- Yellow. Z signal: Sig+ Brown / Sig- Gray.
