XJCSENSOR X-3A-D40-H21 3-Axis Force Sensor, Ø40 mm
By XJCSENSOR
Model: X-3A-D40-H21
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview

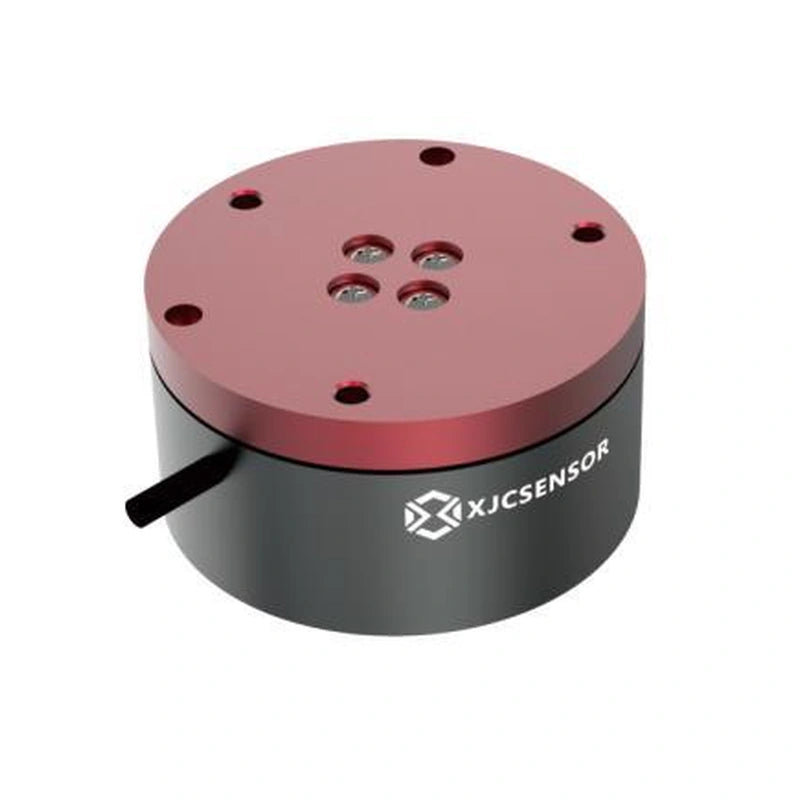

The XJCSENSOR X-3A-D40-H21 is a 3-axis force sensor (Ø40 × 21 mm), rated 150N/150N/240N (Fx/Fy/Fz), with mV/V output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Decoupled structure with low long-term crosstalk error and strong long-term stability
Specifications
| Capacity | 150N/150N/240N |
|---|---|
| Output | mV/V (0.3–1.0 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 300% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Aluminum alloy |
| Dimensions | Ø40 × 21 |
| Mounting | 3×M3×0.5 depth 5 EQS on Ø33±0.1 PCD; 2×Ø3 depth 2.5 / depth 5 locating pins |
| Connection | Ø2.4×3 m |
Capacity options
| Fx | Fy | Fz |
|---|---|---|
| 150N | 150N | 240N |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Power: Exc+ Red / Exc- Black. X signal: Sig+ Green / Sig- White. Y signal: Sig+ Blue / Sig- Yellow. Z signal: Sig+ Brown / Sig- Gray.
🛠
