Product details
Overview

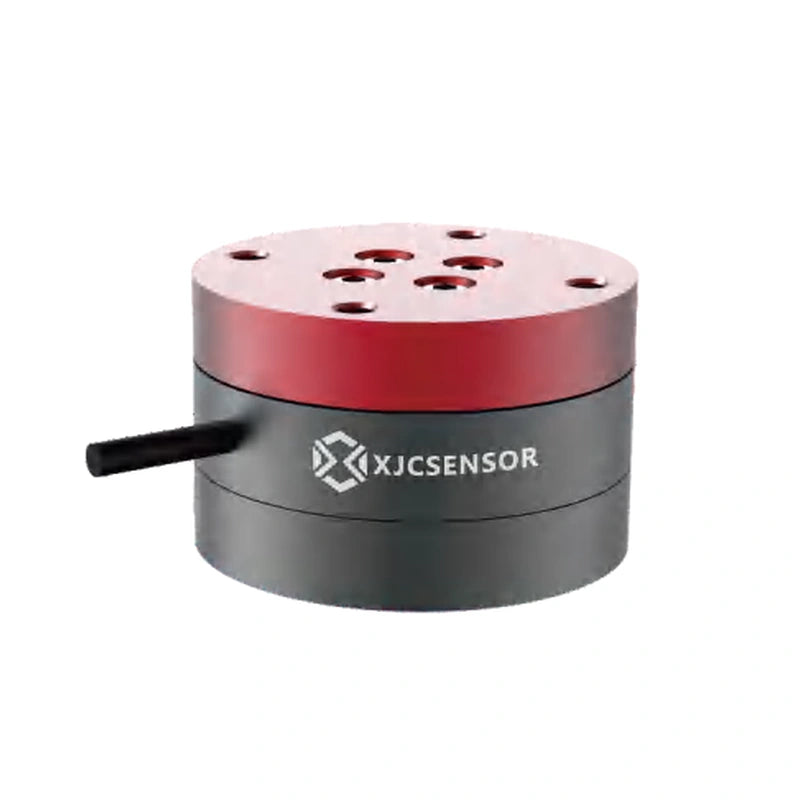

The XJCSENSOR X-3A-D30-C is a 3-axis force sensor (Ø30 × 19 mm), available from 50N to 100N per axis, with mV/V output.
Features
- Quick response
- High-precision resistance strain gauge measuring principle
- Compensated strain gauge
- Decoupled structure with low long-term crosstalk error
- Small size and low height, suited to compact installations
Specifications
| Capacity | 50N/50N/50N; 100N/100N/100N |
|---|---|
| Output | mV/V (0.3–1.0 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 150% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Aluminum alloy |
| Dimensions | Ø30 × 19; load plane 9.5 |
| Mounting | 4×M3 depth 3.5 EQS on Ø24 PCD (both faces) |
| Connection | Ø2.4×3 m |
Capacity options
| Fx | Fy | Fz |
|---|---|---|
| 50N | 50N | 50N |
| 100N | 100N | 100N |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Power: Exc+ Red / Exc- Black. X signal: Sig+ Green / Sig- White. Y signal: Sig+ Blue / Sig- Yellow. Z signal: Sig+ Brown / Sig- Gray.
