Product details
Overview

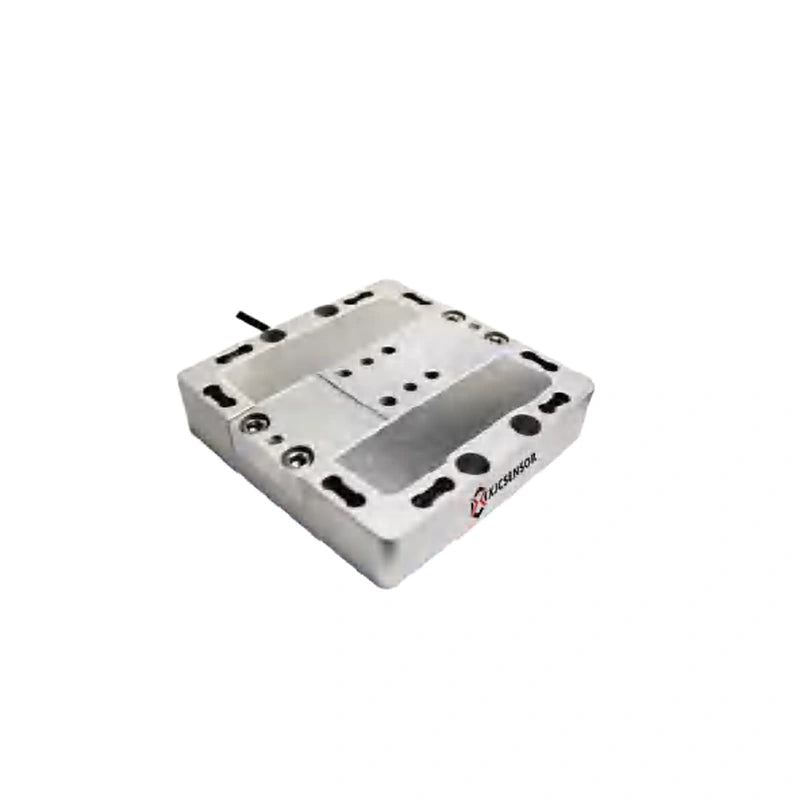

The XJCSENSOR X-3A-120 is a 3-axis force sensor (120 × 120 × 30 mm), available from 20kg to 500kg per axis, with mV/V output.
Features
- Quick response
- Small size
- High-precision resistance strain gauge measuring principle
- Three parallel-beam structure
- Low crosstalk error and strong long-term stability
Specifications
| Capacity | 20kg/20kg/20kg; 50kg/50kg/50kg; 100kg/100kg/100kg; 200kg/200kg/200kg; 500kg/500kg/500kg |
|---|---|
| Output | mV/V (0.5–1.0 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP65 |
| Safe / ultimate load | 150% F.S. |
| Long-term crosstalk error | ≤5% F.S. |
| Operating temperature | −20~80 °C |
| Insulation | ≥5000 MΩ/50 VDC |
| Material | Aluminum alloy / Stainless steel |
| Dimensions | 120 × 120 × 30 (28); side block 40 |
| Mounting | 4×Ø6.6 through / 4×Ø11 depth 12.5 counterbore; 4×M6 depth 15; 2×Ø5 H7 depth 15 and 2×Ø5 H7 depth 3 locating pins |
| Connection | Ø4.5×4 m |
Capacity options
| Fx | Fy | Fz |
|---|---|---|
| 20kg | 20kg | 20kg |
| 50kg | 50kg | 50kg |
| 100kg | 100kg | 100kg |
| 200kg | 200kg | 200kg |
| 500kg | 500kg | 500kg |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Fx: Exc+ Brown/Orange, Exc- Black/Orange, Sig+ Brown/Blue, Sig- Black/White. Fy: Exc+ Brown/Red, Exc- Black/Red, Sig+ Brown/Yellow, Sig- Black/Yellow. Fz: Exc+ Brown, Exc- Black, Sig+ Blue, Sig- White.
