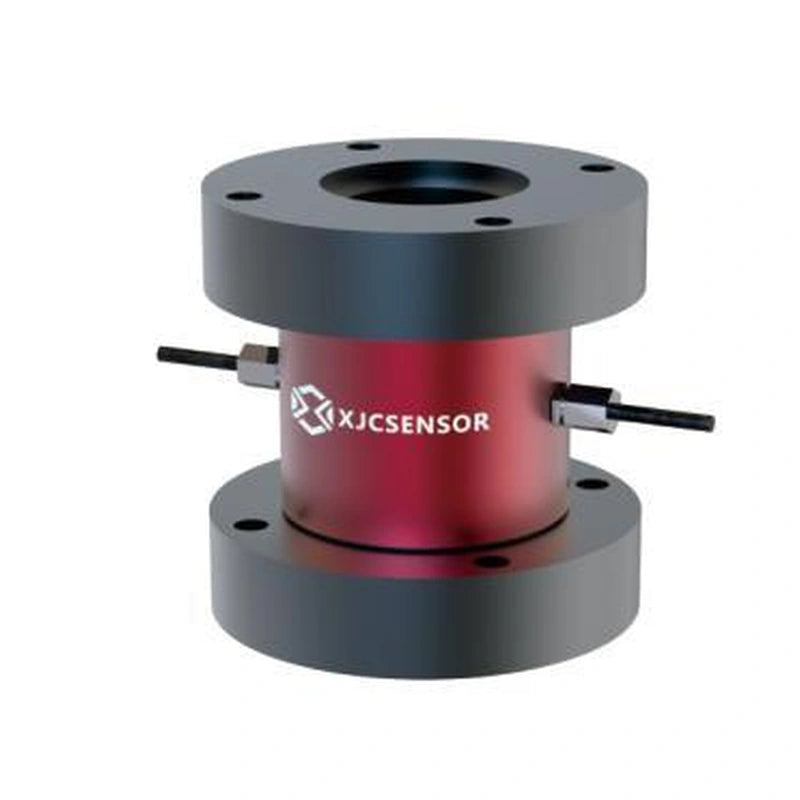

XJCSENSOR X-2A-D54-H54 2-Axis Force/Torque Sensor (Fz/Mz), Ø54 mm
By XJCSENSOR
Model: X-2A-D54-H54
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-2A-D54-H54 is a 2-axis force/torque sensor (fz/mz) (Ø54 flanges × 54 mm), rated Fz 300kg / Mz 20Nm; Fz 500kg / Mz 30Nm, with mV/V output.
Features
- High-precision resistance strain gauge measuring principle
- Two-direction (Fz/Mz) force structure
- Low crosstalk error and strong long-term stability
- Overload protection
- Rigid, stable structure
Specifications
| Capacity | Fz 300kg Mz 20Nm; Fz 500kg Mz 30Nm |
|---|---|
| Output | mV/V (0.5–1.5 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.05% F.S. |
| Zero balance | ±5% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP54 |
| Safe / ultimate load | 300% F.S. |
| Long-term crosstalk error | ≤3% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.5% F.S./10 °C / ≤0.5% F.S./10 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Material | Aluminum alloy / Stainless steel |
| Dimensions | Ø54 flanges × 54 (12.7 mm flanges); Ø21 / Ø25.5 column |
| Mounting | 8×Ø4.3 through EQS on Ø45.5 PCD (both top and bottom) |
| Connection | Ø3×3 m (2 cables) |
Capacity options
| Fz 300kg | Mz 20Nm |
| Fz 500kg | Mz 30Nm |
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Fz: Exc+ Red, Exc- Black, Sig+ Green, Sig- White. Mz: Exc+ Red, Exc- Black, Sig+ Green, Sig- White.
🛠
