Product details
Overview

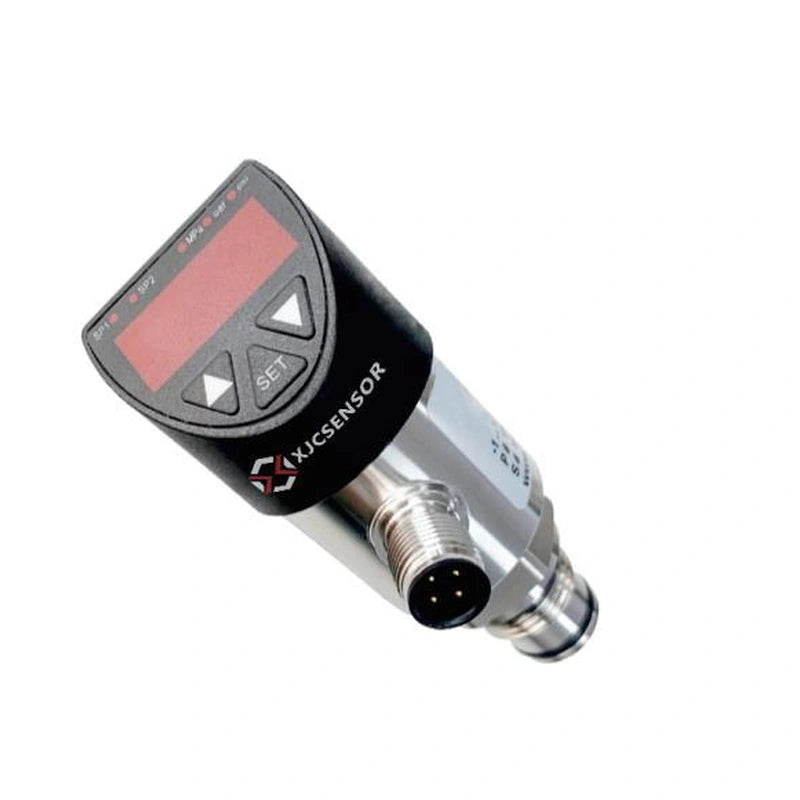

The XJCSENSOR X-100SX is a intelligent pressure switch, range −100kpa–0; 0–5kpa–1000bar, with 4–20 mA + PNP/NPN switch output.
Features
- Range −100 kPa–0 and 0–5 kPa–1000 bar
- Rotary head, 330°
- Switch output PNP or NPN
- Long-term stability, strong anti-interference
Specifications
| Range | −100kpa–0; 0–5kpa–1000bar |
|---|---|
| Output | 4–20 mA + PNP/NPN switch |
| Accuracy | ±0.25%FS; ±0.5%FS (optional) |
| Zero error | ±1%FS |
| Excitation / power supply | 10–30 VDC (2-wire); 12–30 VDC (4-wire switch) |
| Protection | IP65 |
| Operating temperature | −20~60 °C working; −20~80 °C compensated |
| Compensated temperature | −20~80 °C |
| Long-term stability | ±0.2%FS/year (not cumulative) |
| Span error | ±1%FS |
| Response time | ≤5ms |
| Temperature effect | 1.5%FS/100 °C |
| Shock | EC 68-2-32 procedure 1 |
| Vibration | 40g, 20–2000Hz |
| Weight | About 200g |
| Fatigue life | Designed for more than 100 million cycles |
| Certification | CE, RoHS |
| Switch output | PNP, NPN 4-wire |
| Proof / burst pressure | Vacuum 5.0× / 10.0×FS; 5–100 kPa 2.0× / 5.0×FS; 200 kPa–100 bar 2.0× / 3.0×FS |
| Material | SS304, SS316L contact parts |
| Dimensions | Ø38 head; max 100 high; Ø17.5 thread; Ø50.5 clamp option |
| Mounting | G1/4, G1/2, 1/4NPT, 1/2NPT, M14×1.5, M20×1.5 |
| Connection | M12×1 aviation plug 5-pin; standard 3 m 5-core cable |
Ordering guide
Model code: X-100SX-①②③④⑤
| ① | ② | ③ | ④ | ⑤ |
|---|---|---|---|---|
| Pressure type | Range | Process connection | Switch type | Accuracy |
| (blank) gauge; A absolute | K kPa; B bar; M MPa | 2G G1/4; 4G G1/2; 2N 1/4NPT; 4N 1/2NPT; 14M M14×1.5; 20M M20×1.5 | 2PNP 2-way PNP; 2NPN 2-way NPN | (blank) ±0.5%FS; 2 ±0.25%FS |
Applications
Hydraulic and pneumatic equipment, pump sets and other industrial control applications.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
