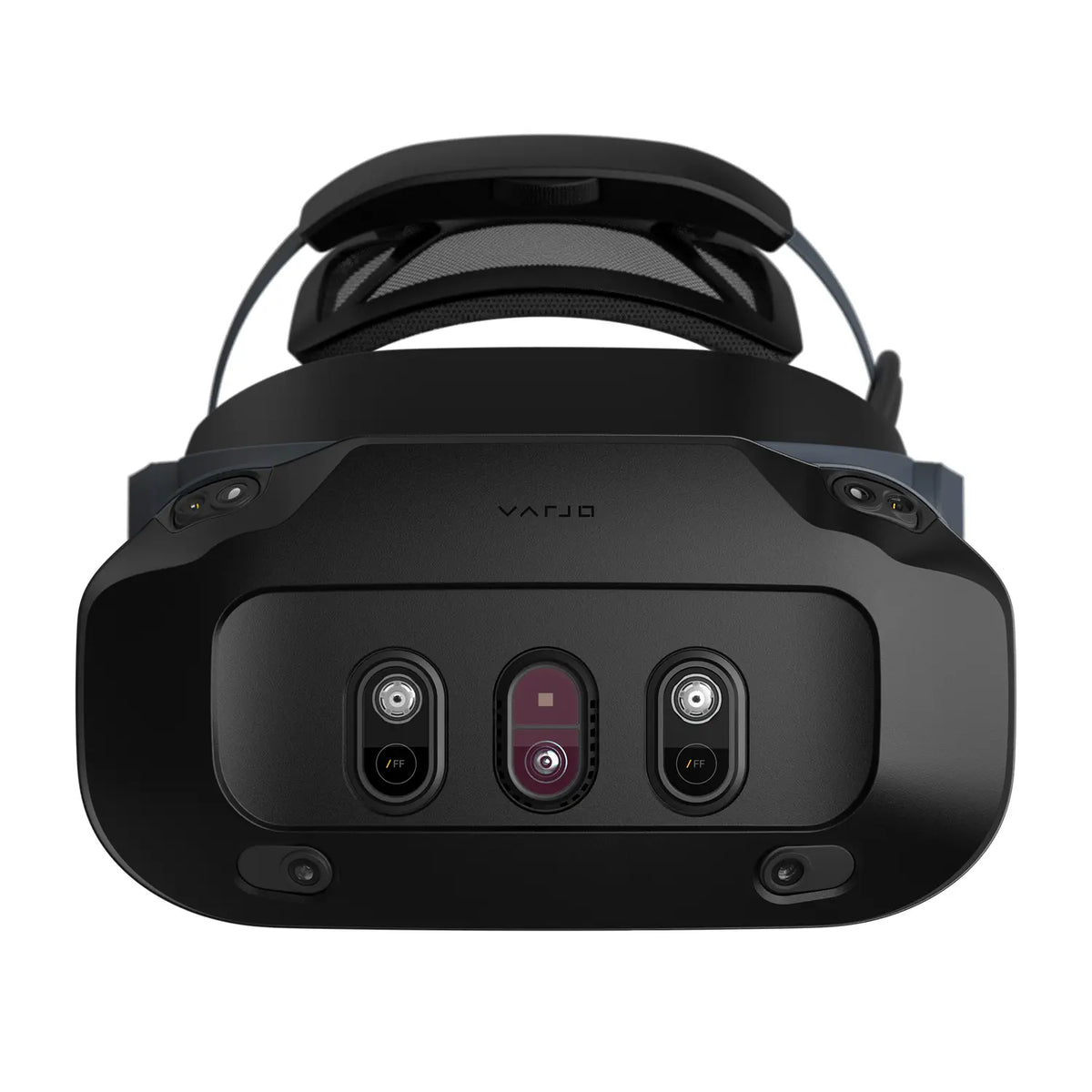

Varjo XR-4 Fixed Focus (2026) | Outside-in (SteamVR / Base Station Tracking)

The Varjo XR-4 Fixed Focus Edition (2023) is a professional-grade mixed reality headset built for teams that need exceptional visual fidelity and reliable mixed reality performance for industrial and enterprise workflows. It’s especially well-suited for use cases where the primary focus is on high-quality virtual content—such as design reviews, automotive and aerospace simulation, product development, medical training, and advanced data visualization.

With high-resolution mini-LED displays, full-dome aspheric optics, integrated eye tracking, and LiDAR-based depth sensing, XR-4 Fixed Focus delivers a clear, stable MR experience for daily professional use—without the autofocus passthrough system found in the Focal Edition.

Please note: this product can only be sold to an organization/business. A valid EIN / TAX ID is required.

A Varjo account and active software license are required.
Every XR-4 user must have a Varjo account and an active Varjo software license. Read more here.

• Exceptional Visual Fidelity: Dual 4K-by-4K mini-LED displays deliver sharp detail and excellent color accuracy for professional simulation and MR workflows.
• Full-Dome Optics: Full-dome aspheric lenses provide a wide 120° × 105° field of view with consistent clarity across the scene.
• Fixed Focus Passthrough: Mixed reality passthrough is designed for stable viewing without gaze-driven autofocus (for autofocus passthrough, see XR-4 Focal Edition).
• Advanced Sensor Fusion: Integrates 300 kpx LiDAR depth sensing with 200 Hz eye tracking for responsive MR interaction.
• Professional-Ready Tracking: Inside-out tracking is supported, with optional SteamVR outside-in tracking available for environments requiring maximum positional accuracy.
• Collaboration-Ready Audio: Integrated spatial audio with dual noise-cancelling microphones supports team training and multi-user collaboration.

• Display & Resolution: Dual mini-LED displays, 3840 × 3744 per eye, 200 nits brightness, 98% sRGB / 96% DCI-P3 color gamut.
• Field of View: 120° × 105°.
• Refresh Rate: 90 Hz.
• Mixed Reality: Dual 20 MP passthrough cameras (fixed focus).
• XR Depth: 300 kpx LiDAR, up to 7 m range.
• Eye Tracking: Integrated 200 Hz gaze tracking with one-degree accuracy.
• Comfort & Wearability: Zero-gravity comfort system, replaceable cushions, automatic IPD adjustment (56–72 mm).
• Weight: 665 g headset + 356 g headband.
• Tracking: Inside-out tracking supported; optional SteamVR™ outside-in tracking available.
• Audio: Integrated spatial audio speakers, dual noise-cancelling microphones, 3.5 mm audio jack.

System Requirements

The XR-4 series is designed for professional software running on Windows PCs and leverages NVIDIA graphics performance. Please confirm your PC meets the XR-4 system requirements or browse Varjo-ready computers.

• Processor: 8-core CPU (e.g., Intel Core i7-12700K, Intel Xeon w3-2435, AMD Ryzen 7 2700X or better)
• Graphics Card (GPU): NVIDIA RTX A5000, Quadro RTX 6000, GeForce RTX 4070, RTX 3080, RTX 2080 Ti
• Memory (RAM): 32 GB
• Storage Space: 2 GB free
• Connectivity: 1 × DisplayPort 1.4, 1 × USB-C (10 Gbps), plus required USB connectivity per setup
• Operating System: Windows 10 (64-bit) or Windows 11

• Varjo XR-4 mixed reality headset
• (2) Varjo Controllers
• Headset adapter
• 3-port charger
• Power plugs (EU, UK, US, AUS, KOR)
• Charging cables (USB-C connector, 1.5 m)
• Display cable (DisplayPort connector, 5 m)
• Data cable (USB-C connector, 5 m)

Standard Configuration

• Core XR-4 Fixed Focus experience with professional mixed reality performance.
• Ideal for design reviews, simulation, visualization, and daily enterprise MR use.
• Includes XR-4 headset and Varjo Controllers.

Enterprise & Maintenance Services (Optional)

• Optional service packages may be available for organizations that require onboarding, priority support, and lifecycle services.
• Recommended for large deployments and mission-critical programs.

SteamVR Outside-in Tracking (Optional)

• Factory configuration for environments that require maximum positional accuracy (e.g., cockpits, simulators, motion platforms).
• Uses external base stations for precise tracking performance.

Outside-in SteamVR tracking uses external base stations to track headset position and orientation with extremely high precision. This is recommended for advanced simulator environments where consistent tracking accuracy is essential.
