Motion Capture

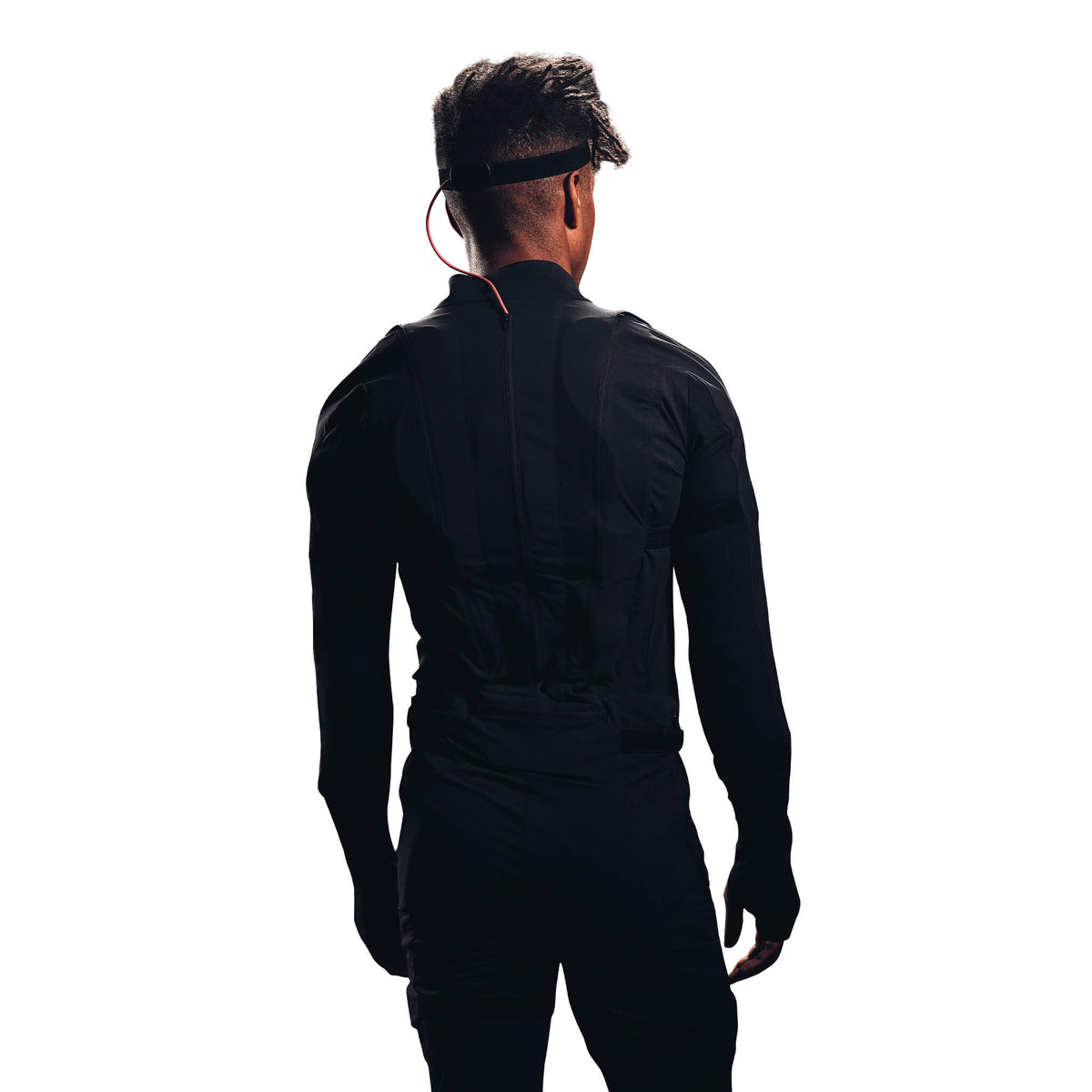

Smartsuit Pro II (Standalone) — Size S
By Rokoko
The Smartsuit Pro II is Rokoko's wireless inertial motion capture suit. 9DOF IMU sensors report body motion at 200 fps with ±1 degree orientation accuracy, with no cameras, no capture volume and nothing to occlude. The Standalone version can be combined with Smartgloves for finger tracking; for plug-and-play glove use, Rokoko recommends the Glove Ready version.
Compatible with Windows · macOS
From$ 2,639.25
Volume, education and public-sector pricing available on request
Your Configuration
Total
Quantity
Ships within 15-30 days
- A USB power bank is not included. Rokoko recommends a 5V/3A USB-A power bank — supplying more than 5V can damage the hardware.
- Rokoko covers the cost of a size swap within 30 days of initial delivery.
- Knoxlabs can quote the suit together with gloves, Coil Pro, Rokoko Studio licences and deployment support.
🛠
Deployment Expertise
XR specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Features
- 200 FPS INERTIAL CAPTURE—9DOF IMU sensors on a hub deliver ±1° 3D orientation accuracy at 200 frames per second — no cameras, no optical occlusion, no volume to build.
- UNTETHERED TO 100 M—Capture wirelessly over WiFi with up to 100 m of tracking range, and a built-in WiFi hotspot so you can shoot offline or outdoors.
- SENSOR FUSION 2.0—Rokoko's Sensor Fusion 2.0 reduces drift across long takes, with elevation tracking supported.
- POWER BANK RUNTIME—A standard 10,000 mAh USB power bank gives roughly 6+ hours of continuous capture — about an hour for every 1,000 mAh. Power bank not included.
- FOUR SIZES, WASHABLE TEXTILE—S, M, L and XL. The suit textile is washable once the electronics are removed, which matters for shared studios and teaching labs.
Technical Specifications
Everything you need to know about tracking, performance, connectivity, and deployment hardware.
Tracking & Motion Capture
- Sensor Type
- 9 degrees-of-freedom (9DOF) IMU sensors connected to a hub
- 3D Orientation Accuracy
- ± 1°
- Frame Rate
- 200 fps
- Drift Reduction
- Sensor Fusion 2.0
- Elevation Tracking
- Supported
- Occlusion
- None — inertial, no cameras required
Connectivity
- Connection
- WiFi, untethered
- Tracking Range
- Up to 100 m
- Offline Capture
- Built-in WiFi hotspot for offline and outdoor use
- USB
- Firmware upgrade and hardware setup only — WiFi is required to complete setup
Power
- Power Source
- USB power bank (not included)
- Recommended Power Bank i
- 5V / 3A USB-A
- Runtime
- Approx. 6+ hours from a 10,000 mAh power bank (roughly 1 hour per 1,000 mAh)
Physical & Support
- Sizes
- S, M, L, XL
- Textile
- Washable — electronics must be removed first
- Warranty
- 1 year
- Returns
- 30-day return window
- Size Swap
- Covered by Rokoko within 30 days of initial delivery
Product details
Overview
Wireless, camera-free inertial body motion capture for animation, virtual production, games, research, and previsualization. This listing is the Standalone configuration in size S.
Core capabilities
- 9DOF IMU sensor system with a 200 fps sensor frame rate.
- Real-time Wi-Fi streaming with up to 100 m range in suitable network conditions.
- Sensor Fusion 2.0 for reduced drift, improved walk and run tracking, and stronger magnetic-interference handling.
- Removable electronics and washable, stretch textile.
Standalone configuration
The Standalone suit tracks hand and wrist movement with built-in sensors. Smartgloves can be used separately, but the Glove Ready configuration provides the direct USB-C connection intended for plug-and-play body-and-finger capture.
What you need
- A Windows or macOS computer running Rokoko Studio.
- A Wi-Fi network or the suit's built-in hotspot.
- A 5V/3A USB-A power bank; the battery is not included.
Official Rokoko product supplied by Knoxlabs.
Need More Than Hardware?
Knoxlabs also handles the deployment.
Device setup
MDM enrollment
Asset tagging
Shipping coordination
User onboarding
XR deployment consulting
FAQ
What's in the box?
Rokoko lists the Standalone package as: a breathable textile suit with pre-installed sensors and hub, a pair of textile gloves with embedded sensors, four USB power cables (two long, two short), and a protective travel case.
Do I need a power bank?
A USB power bank is not included. Rokoko recommends a 5V/3A USB-A power bank — supplying more than 5V can damage the hardware. A standard 10,000 mAh bank gives roughly 6+ hours of continuous capture.
What is the difference between Standalone and Glove Ready?
The Glove Ready version replaces the suit's built-in hand sensors with USB-C ports so Rokoko Smartgloves connect directly. The Standalone version can still be combined with Smartgloves, but Rokoko recommends Glove Ready for a plug-and-play glove workflow. Rokoko's own bundles ship the Glove Ready version.
How do I choose a size?
Rokoko publishes measurement charts for both suits and gloves in its support centre. Suits are not made in custom sizes and are not produced for body heights under 155 cm (5 ft 1 in). Rokoko covers the cost of a size swap within 30 days of initial delivery, so order the closest fit and exchange if needed.
Does it need a camera setup or a dedicated space?
No. The suit is inertial, so there is no capture volume to build and no line-of-sight to maintain. It runs untethered over WiFi with up to 100 m of tracking range, and includes a built-in WiFi hotspot for offline or outdoor shoots.
Can Knoxlabs provision and deploy this for us?
Yes. Knoxlabs handles device setup, software installation, asset tagging and deployment coordination so the kit arrives ready to use. We also support ongoing provisioning and technical support for multi-seat rollouts.
Do you offer volume, education or government pricing?
Yes. Volume pricing is available for multi-unit orders, and we support education and public-sector procurement including quotes, POs and net terms. Request a quote and our team will scope it with you.
