Motion Capture

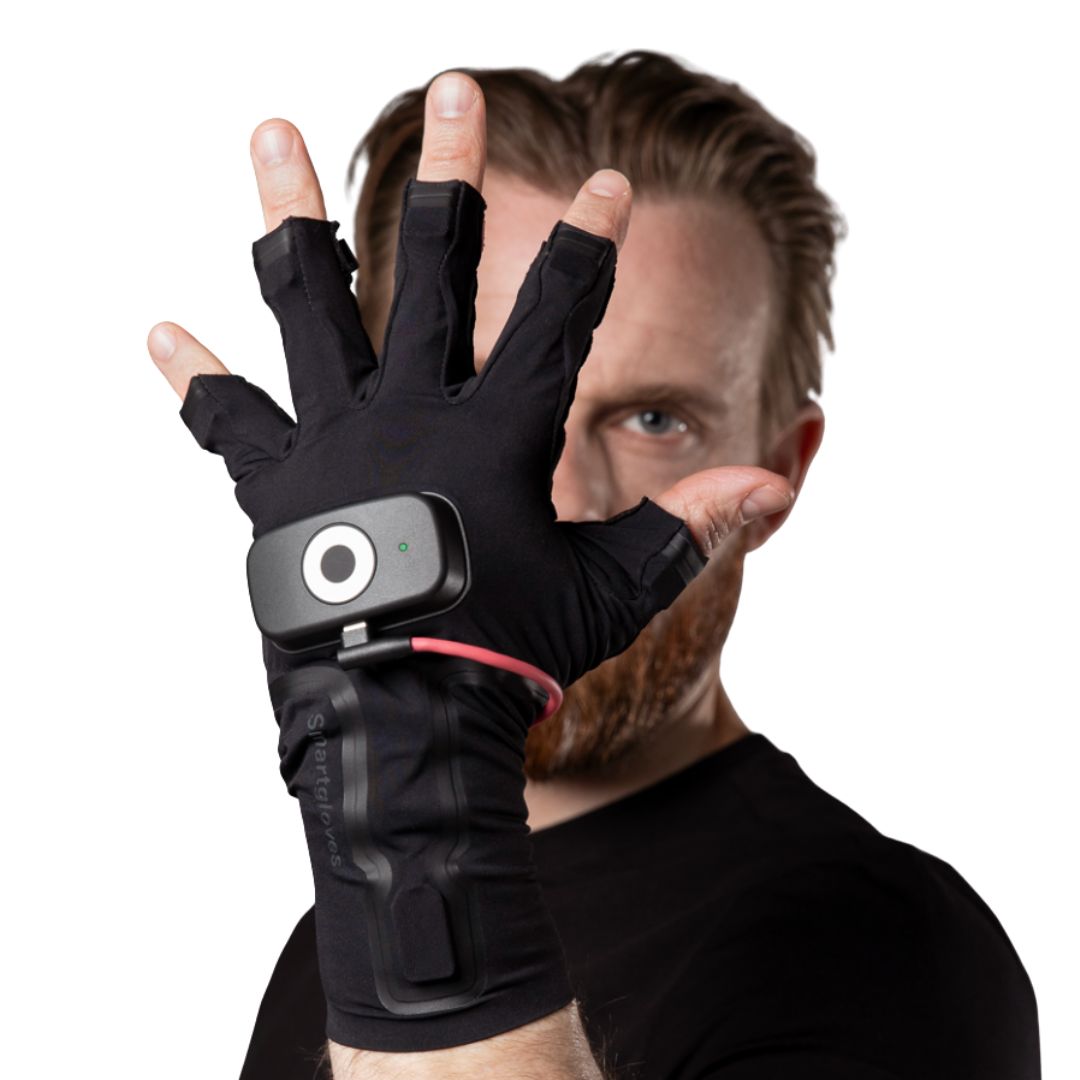

Smartgloves II — Size M
By Rokoko
Smartgloves II capture hand and finger motion using hybrid IMU and EMF sensor fusion — seven sensors per glove producing 39 degrees of freedom, or 45 when paired with Coil Pro. They stream into Rokoko Studio over WiFi with up to 100 m of range and export to BVH, FBX and CSV, with plugins for Maya, MotionBuilder and Siemens Jack.
Compatible with Windows · macOS
From
Original price
Current price$ 1,995.00
Save $ -1,995.00
Pricing on request
Volume, education and public-sector pricing available on request
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
Ships within 15-30 days
- A USB power bank is not included. Rokoko recommends a 5V/3A USB-A power bank — supplying more than 5V can damage the hardware.
- A WiFi router is not included. Rokoko covers the cost of a size swap within 30 days of initial delivery.
- Coil Pro, suits and Rokoko Studio licences can be quoted together with the gloves.
Product details
Overview
Professional hand and finger motion-data gloves for animation, virtual production, robotics, teleoperation, research, and machine-learning workflows. This listing is size M.
Capture performance
- IMU capture rate: 250 Hz; max streaming rate: 83 Hz, for responsive, low-latency finger and hand poses.
- Stable raw motion data designed to reduce cleanup in object interaction, gesture, and first-person-hand capture.
- Improved runtime and durability for repeated production use.
- Works with Rokoko Studio and can feed supported 3D and robotics pipelines.
System compatibility
Use Smartgloves II on their own or connect them directly to a Smartsuit Pro II Glove Ready for coordinated full-body and finger capture. A computer running Rokoko Studio is required; suit and software subscription upgrades are not included unless stated.
Official Rokoko product supplied by Knoxlabs.
Features
- HYBRID IMU + EMF SENSING—Seven sensors per glove combine inertial and electromagnetic sensing, so finger tracking does not depend on cameras or line of sight.
- 39 DoF — 45 WITH COIL PRO—A 25+ DoF skeletal model with 39 degrees of freedom of output, rising to 45 when a Coil Pro supplies absolute position.
- CAPTURE & STREAMING RATES—IMU capture rate: 250 Hz; max streaming rate: 83 Hz. EMF sampling at 96 kHz, with accelerometers to 8G.
- UNTETHERED TO 100 M—WiFi 2.4 and 5 GHz (802.11 b/g/n) with up to 100 m of range — the gloves travel with the performer.
- PIPELINE-READY EXPORT—Stream or export to BVH, FBX and CSV, with plugins for Maya, MotionBuilder and Siemens Jack. Rokoko lists ROS and ROS2 plugins as on the roadmap.
Technical Specifications
Product specifications, requirements, and deployment details.
Tracking & Motion Capture
- Sensors per Glove
- 7
- Sensing Technology
- Hybrid IMU + EMF sensor fusion
- Output Degrees of Freedom
- 39 DoF (45 DoF with Coil Pro)
- Skeletal Model
- 25+ DoF
Performance
- IMU Capture / Max Streaming Rate
- 250 Hz capture; 83 Hz max streaming
- Magnetometer Rate
- 83.33 Hz
- EMF Sampling Rate
- 96 kHz
- Accelerometer Range
- Up to 8G
Connectivity
- Wireless
- WiFi 2.4 / 5 GHz, 802.11 b/g/n
- Range
- Up to 100 m
Power
- Power Consumption
- 260 mA
- Power Source
- USB power bank (not included) — 5V / 3A recommended
- Battery Life
- 50% longer than the previous generation
Physical & Support
- Sizes
- S, M, L, XL
- Warranty
- 1 year
- Returns
- 30-day refund guarantee
- Size Swap
- Covered by Rokoko within 30 days of initial delivery
Software & Export
- Software
- Rokoko Studio
- Export Formats
- BVH, FBX, CSV
- Plugins
- Maya, MotionBuilder, Siemens Jack
- ROS / ROS2
- On Rokoko's development roadmap — not yet shipping
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
What's in the box?
Rokoko lists: one pair of textile gloves with embedded sensors, two long USB power cables, and a protective travel case. A battery/power bank and a WiFi router are not included.
Do the gloves work without a suit?
Yes — the gloves stream to Rokoko Studio on their own. Paired with a Smartsuit Pro II they contribute full-body hand data, and Rokoko notes the suits derive global position data only when paired with Smartgloves and a Coil Pro.
Do I need a Coil Pro?
No, but it changes what you get. Coil Pro adds absolute EMF-based position, taking glove output from 39 to 45 degrees of freedom and removing positional drift. Rokoko requires Smartgloves for Coil Pro to establish position at all.
Can I use these for robotics data collection?
Rokoko markets Smartgloves II for robotics, with streaming and export to BVH, FBX and CSV and plugins for Maya, MotionBuilder and Siemens Jack. Rokoko lists ROS and ROS2 plugins as on its development roadmap rather than currently shipping — confirm your pipeline requirements with us before ordering.
How do I choose a size?
Rokoko publishes measurement charts for both suits and gloves in its support centre. Suits are not made in custom sizes and are not produced for body heights under 155 cm (5 ft 1 in). Rokoko covers the cost of a size swap within 30 days of initial delivery, so order the closest fit and exchange if needed.
Can Knoxlabs provision and deploy this for us?
Yes. Knoxlabs handles device setup, software installation, asset tagging and deployment coordination so the kit arrives ready to use. We also support ongoing provisioning and technical support for multi-seat rollouts.
Do you offer volume, education or government pricing?
Yes. Volume pricing is available for multi-unit orders, and we support education and public-sector procurement including quotes, POs and net terms. Request a quote and our team will scope it with you.
