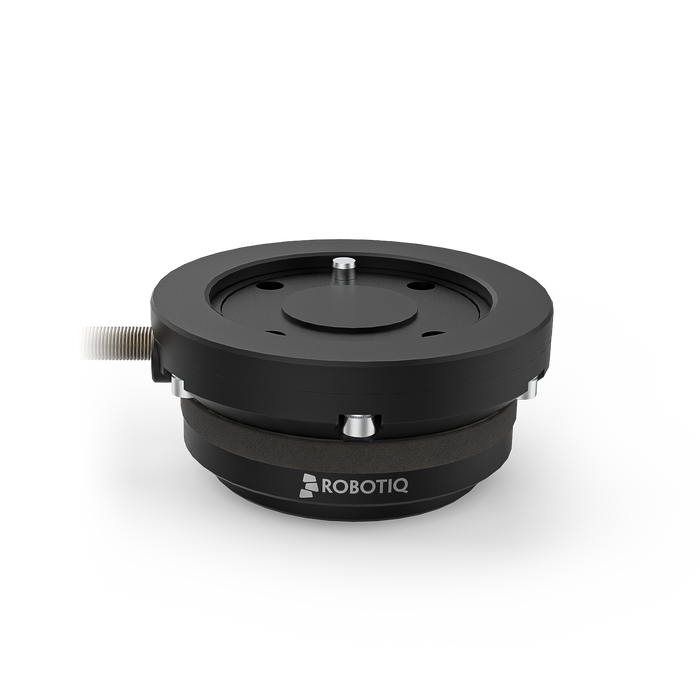

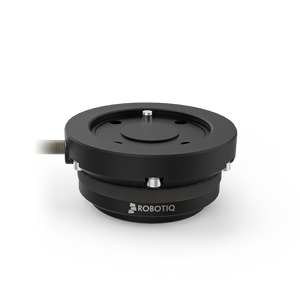

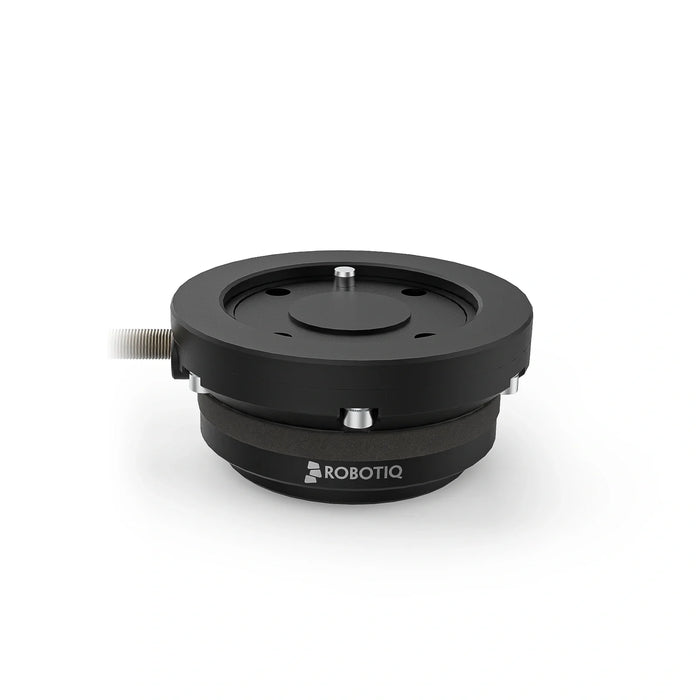

Robotiq FT 300-S Force Torque Sensor
By Robotiq
A six-axis wrist-mounted sensor for force-sensitive assembly, insertion, finishing and contact-data collection. The FT 300-S measures forces up to ±300 N and torques up to ±30 Nm at 100 Hz.
From
Original price
Current price
Pricing on request
Pricing on request. Final configuration, included items and lead time are confirmed with your quote.
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:Pricing on request
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Confirm robot model, mounting, coupling, cables and included components with your quote.
- Availability and lead time are confirmed by Knoxlabs.
Product details
Overview
A six-axis wrist-mounted sensor for force-sensitive assembly, insertion, finishing and contact-data collection. The FT 300-S measures forces up to ±300 N and torques up to ±30 Nm at 100 Hz.
Specifications
- Six-axis wrist-mounted force and torque sensing
- Force measuring range: ±300 N on Fx, Fy and Fz
- Torque measuring range: ±30 Nm on Mx, My and Mz
- Data output rate: 100 Hz
- Overload capacity: 500%, subject to the combined-load limit in the manual
- Sensor weight: approximately 0.44 kg
- IP65; Modbus RTU over RS-485
Respect the combined force and torque overload limits. Refer to the model-specific manual for operating limits.
Integration requirements
Confirm the robot mounting adapter, cabling, power, communication interface and controller software with Knoxlabs. Adding force measurement does not by itself enable force control: the robot controller and application must support the intended behavior. Robotiq states that periodic calibration is not required over the sensor’s life; follow the manual for zeroing, installation and operation.
Configuration and availability
Tell Knoxlabs your robot brand and model, mounting interface, application, quantities and required delivery date. The quote will specify the gripper or sensor, coupling, fingertips, cables and software required for your setup. Robot compatibility depends on mechanical mounting, communication and integration support. Price, included items and lead time are confirmed with your quote.
Documentation and CAD
🛠
