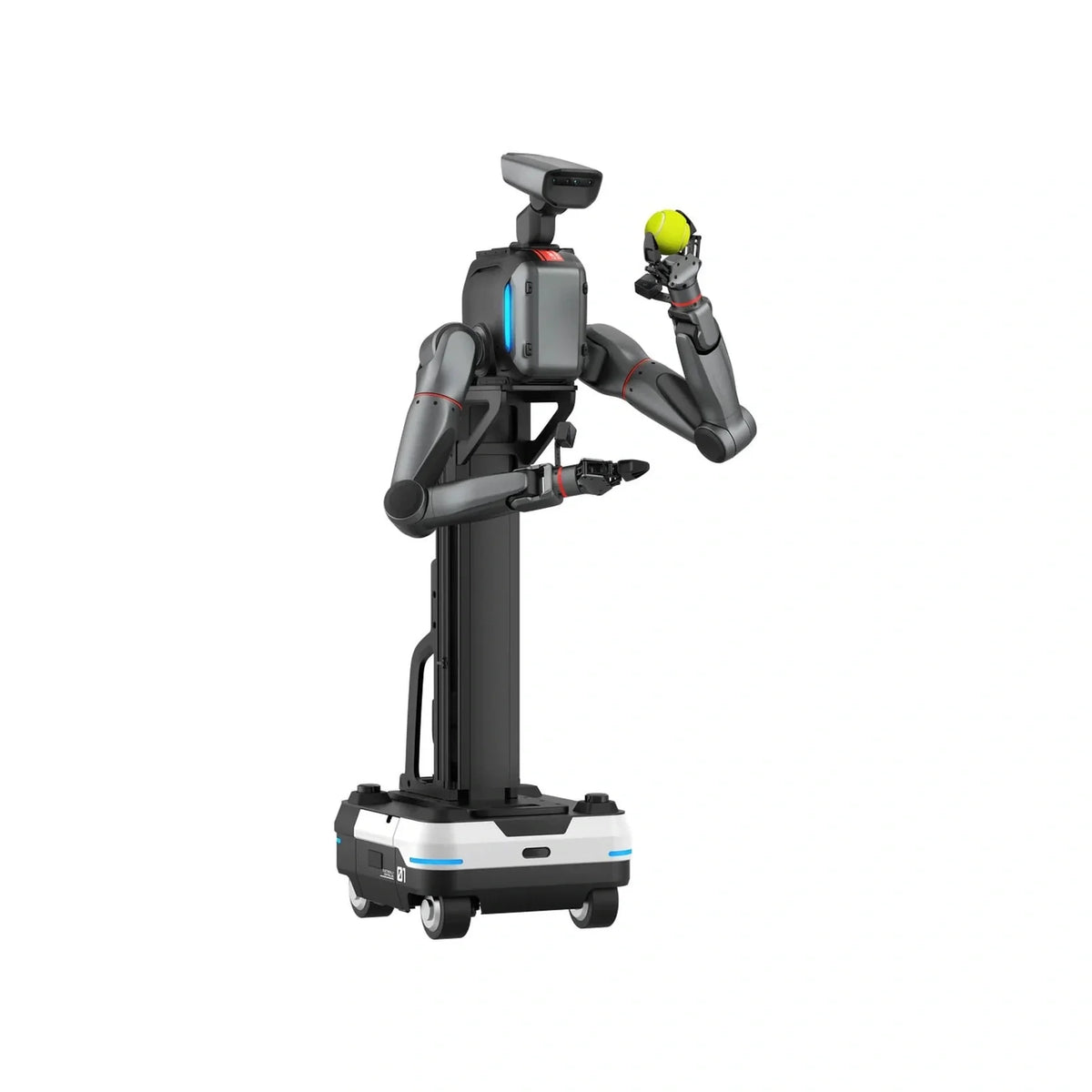

LimX TRON 2 Dual-Arm Mobile Robot - EDU Edition
A mobile dual-arm TRON 2 platform for teleoperation, mobile manipulation, inspection, embodied-AI data collection, research, and advanced education.
From$ 34,999.99
Pricing on request
US freight/customs: $4,200 per robot at checkout; international delivery by quote.
Bundle: Bundle #4 - Dual-Arm Mobile Robot
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
Ships within 5-10 days
- Payment in full is required before supplier shipment.
- US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout.
- Supplier Bundle #4, EDU Edition.
- US Wi-Fi setup is required. Review the FCC documentation and model-specific supplier instructions below.
Product details
Overview
A mobile dual-arm TRON 2 platform for teleoperation, mobile manipulation, inspection, embodied-AI data collection, research, and advanced education.
- Two 7-DoF robotic arms combined with a mobile base
- Up to 5 kg maximum end-effector load per arm; 3 kg in extended configurations
- Designed for mobile manipulation and practical task research
- Supports Python, C++, ROS 1, ROS 2, SDK, and simulation workflows
- Expandable with grippers, dexterous hands, perception, and external compute
Integration note: LimX has tested BrainCo hands. Tesollo, MANUS, SenseGlove, and other third-party integrations require configuration-specific engineering and validation.
Ordering and delivery
Available to order from the supplier. Availability and dispatch timing are reconfirmed after order; no immediate shipment is promised.
Supplier Bundle #4, EDU Edition.
US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout.
Payment in full is required before shipment. Optional commissioning, training and integration services are quoted separately.
Bundle #4 contents
- 1 TRON2 base body with two upper arms
- 2 forearm extremities with closed-status grippers
- 1 head with power, data and USB 3.2 camera cables
- 1 Meta Quest VR kit: headset, two controllers, data cable, adapter and manual
- Three-in-One installation tool kit
- Dual-arm lifting stand with installation hardware
- Customized LimX dual-arm mobile chassis with installation hardware
Bundles #2 and #3 are not upgradeable to the Three-in-One configuration. Choose Bundle #1 for manipulation and mobility in one package.
FCC documentation and US setup
Supplier-provided FCC Part 15 Subpart B documentation identifies TRON2 Dual-Arm, model TRON2-B-DA-EDU-US, report N26091006501E, dated September 28, 2026. It applies to the tested configuration; it does not establish wireless-radio approval or coverage for every bundle or add-on. Per the distributor's October 14 guidance, disable the factory Wi-Fi and install your own compliant network hardware for US deployment. Confirm the supplier's model-specific setup instructions before use.
Download FCC declaration (PDF) · Download FCC EMC test report (PDF)
Features
- Two 7-DoF robotic arms combined with a mobile base
- Up to 5 kg maximum end-effector load per arm; 3 kg in extended configurations
- Designed for mobile manipulation and practical task research
- Supports Python, C++, ROS 1, ROS 2, SDK, and simulation workflows
- Expandable with grippers, dexterous hands, perception, and external compute
Technical Specifications
Product specifications, requirements, and deployment details.
Mechanical
- Arms
- 2
- Single arm dof
- 7
- Max end effector load per arm kg
- 5
- Extended load per arm kg
- 3
- Max end effector speed m s
- 5
- Repeat positioning accuracy mm
- ±0.5
- Form
- mobile dual-arm
Compute & sensors
- Development compute
- Intel Core Ultra module option
- Storage
- 2 TB on development module
- Sensors
- waist RGBD camera, IMU, head RGBD camera, wrist RGBD cameras
Power & battery
- Battery voltage v
- 46.8
- Battery capacity ah
- 9
- Max battery power w
- 2800
- Replaceable battery
- Yes
Software & interfaces
- SDK languages
- Python, C++
- Operating systems
- Linux, Ubuntu 20.04 reference environment, Windows low-level SDK availability
- Middleware & frameworks
- ROS 1, ROS 2, WebSocket JSON API
- Simulators
- NVIDIA Isaac Sim, MuJoCo, Gazebo
- Communication interfaces
- Ethernet, USB 3.0, EtherCAT, RS485, CAN FD reported at end-effector; details pending
- Power interfaces
- 12V output, 24V output, 48V output, External power input
Integration requirements
- Details
LimX reports a tested BrainCo hand configuration, but the exact Revo2 edition and mounting package must be confirmed. Tesollo requires a custom wrist adapter, separate computer, power validation, payload review, and software integration. MANUS and SenseGlove are feasible SDK-based input candidates but have not been fully validated on TRON 2.
Validated integrations
- Products
- BrainCo Revo2 Basic Dexterous Hands
Related robotics products
Bundle #4 contents
- Included
- 1 TRON2 base body with two upper arms
- Included
- 2 forearm extremities with closed-status grippers
- Included
- 1 head with power, data and USB 3.2 camera cables
- Included
- 1 Meta Quest VR kit: headset, two controllers, data cable, adapter and manual
- Included
- Three-in-One installation tool kit
- Included
- Dual-arm lifting stand with installation hardware
- Included
- Customized LimX dual-arm mobile chassis with installation hardware
FCC documentation and US setup
- Tested model
- TRON2-B-DA-EDU-US
- Declaration
- FCC declaration (PDF)
- Test report
- N26091006501E (PDF)
- US deployment
- Supplier-provided FCC Part 15 Subpart B documentation identifies TRON2 Dual-Arm, model TRON2-B-DA-EDU-US, report N26091006501E, dated September 28, 2026. It applies to the tested configuration; it does not establish wireless-radio approval or coverage for every bundle or add-on. Per the distributor's October 14 guidance, disable the factory Wi-Fi and install your own compliant network hardware for US deployment. Confirm the supplier's model-specific setup instructions before use.
Ordering and delivery
- Configuration
- Supplier Bundle #4, EDU Edition.
- Availability
- Available to order from the supplier. Availability and dispatch timing are reconfirmed after order; no immediate shipment is promised.
- Freight and customs
- US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout.
- Payment
- Payment in full before shipment
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
How is this configuration supplied?
Supplier-fulfilled configuration. Payment in full is required before shipment. Availability and dispatch timing are confirmed after order. Optional setup, training and third-party integrations are quoted separately.
How much are shipping and customs?
US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout. The supplier's freight/customs charge already includes customs duties; those duties are not added a second time to the robot price.
Which TRON 2 bundle is this?
Bundle #4 - Dual-Arm Mobile Robot, EDU Edition. The four bundles are separate complete purchase configurations. Bundles #2 and #3 are not upgradeable to Bundle #1.
What FCC documentation is available?
Supplier-provided FCC Part 15 Subpart B documentation identifies TRON2 Dual-Arm, model TRON2-B-DA-EDU-US, report N26091006501E, dated September 28, 2026. It applies to the tested configuration; it does not establish wireless-radio approval or coverage for every bundle or add-on. Per the distributor's October 14 guidance, disable the factory Wi-Fi and install your own compliant network hardware for US deployment. Confirm the supplier's model-specific setup instructions before use.
