Robotic Gripper

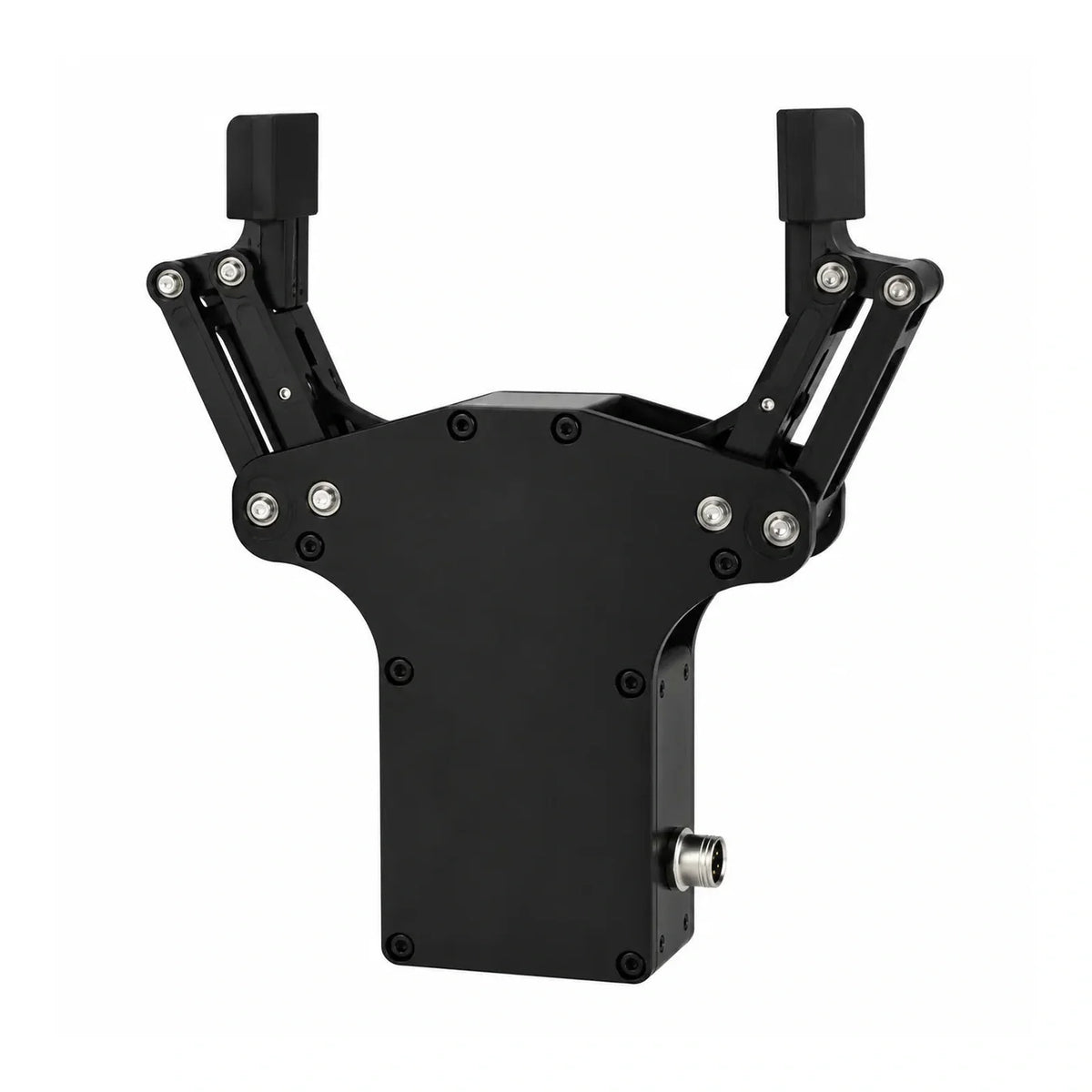

Inspire Robots EG2-4C2 Electric Gripper
An electric gripper for stronger gripping force, with adjustable force and RS485 control.
From$ 1,103.63
Pricing on request
Price shown is for the selected configuration. Shipping is calculated separately.
Configuration: EG2-4C2 / RS485
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
Ships within 15-30 days
- Sold as one hand or one device, not a left/right pair. Select the complete configuration; confirm mounting, power, cabling and control software before deployment.
- Availability and lead time are confirmed before fulfillment.
Product details
Overview
An electric gripper for stronger gripping force, with adjustable force and RS485 control.
Selected configuration: EG2-4C2 / RS485.
Applications
Object-handling experiments that favor gripping force over the faster 4B2 closing time.
Key specifications
- 0–20 N grip force
- 70 mm full stroke
- 231 g
Integration and what's included
Sold as one electric gripper. Confirm mounting, rated power supply, cables and RS485 control before integration.
One EG2-4C2 gripper in the ordered configuration. Mounting adapters, controller, power supply and cables are not promised unless itemized in the order.
Photographs illustrate the model family. The ordered device follows the selected configuration.
Ordering and support
Confirm availability, lead time, exact packing list, revision-specific datasheet and warranty terms with Knoxlabs before deployment. Shipping is calculated separately.
Features
- 0-20N continuously controllable grip force
- 70mm full stroke on both sides
- 1.3s full-stroke closing time
- Power-off self-locking holds grip with no power draw
- RS485 control with a separate DC power supply
- IP40 rated for industrial and lab environments
Technical Specifications
Product specifications, requirements, and deployment details.
EG2-4B2 vs EG2-4C2
- EG2-4B2 grip force
- 0-15 N
- This model's grip force
- 0-20 N
- EG2-4B2 closing time
- 0.85 s
- This model's closing time
- 1.3 s
- This model's best for
- Force, heavier payloads
Full specifications
- Control interface
- RS485
- Full stroke
- 70 mm, both sides
- Weight
- 231 g
- Grip force
- 0-20 N
- Force repeatability
- ±1 N
- Positioning repeatability
- ±0.5 mm
- Full-stroke closing time
- 1.3 s
- Maximum speed
- 70 mm/s
- Operating voltage
- DC 24V ±10%
- Peak current
- 0.7 A
- Protection level
- IP40
- Self-locking
- Power-off self-locking
What's in the box
- Primary device
- One EG2-4C2 gripper in the ordered configuration. Mounting adapters, controller, power supply and cables are not promised unless itemized in the order.
- Accessories
- Confirm the order-specific packing list before fulfillment.
EG2-4B2 vs EG2-4C2
- EG2-4B2 grip force
- 0-15 N
- This model's grip force
- 0-20 N
- EG2-4B2 closing time
- 0.85 s
- This model's closing time
- 1.3 s
- This model's best for
- Force, heavier payloads
Full specifications
- Control interface
- RS485
- Full stroke
- 70 mm, both sides
- Weight
- 231 g
- Grip force
- 0-20 N
- Force repeatability
- ±1 N
- Positioning repeatability
- ±0.5 mm
- Full-stroke closing time
- 1.3 s
- Maximum speed
- 70 mm/s
- Operating voltage
- DC 24V ±10%
- Peak current
- 0.7 A
- Protection level
- IP40
- Self-locking
- Power-off self-locking
Who it is for
- Details
Object-handling experiments that favor gripping force over the faster 4B2 closing time.
Setup & deployment
- Details
Confirm configuration and mounting, use the rated power supply, wire the selected communication bus, and validate a safe motion and force envelope using the matching manufacturer documentation.
Resources & documents
- Details
Manufacturer reference: https://en.inspire-robots.com/ . Confirm the revision-specific datasheet, CAD and control documentation before integration.
Configuration notes
- Details
Sold as one hand or one device, not a left/right pair. Select the complete configuration; confirm mounting, power, cabling and control software before deployment.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
Is this a pair?
This listing is for one device; confirm the exact order contents.
Is it plug-and-play with my robot?
No universal drop-in compatibility is promised. Confirm mechanical mounting, power, interface, cabling and control software for your robot revision.
What is included and when will it ship?
Confirm the packing list and lead time with Knoxlabs. Availability is not inferred from the ability to place an order; optional equipment is separate unless itemized.
