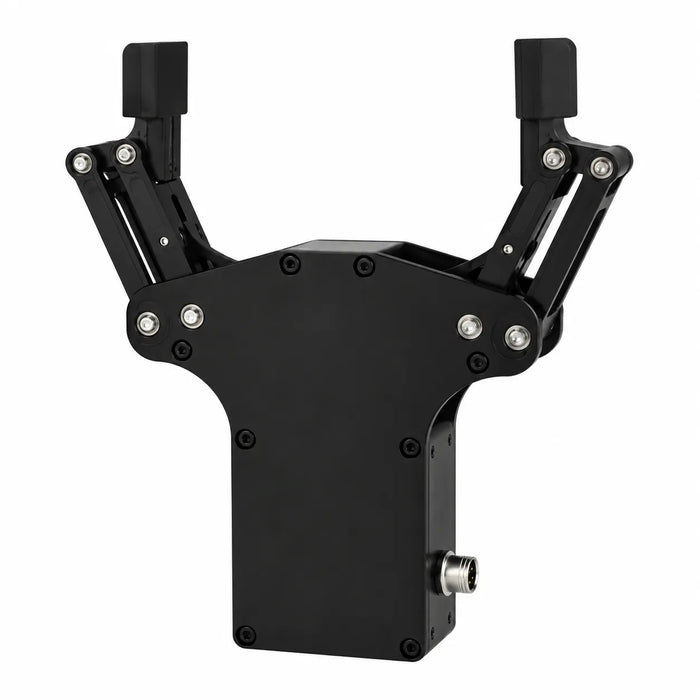

Inspire Robots EG2-4C2 Electric Gripper

The EG2-4C2 is Inspire Robots' higher-force electric gripper — sharing the same compact linear mechanical linkage architecture as the EG2-4B2 but delivering 0–20N grip force, 33% stronger than the 4B2. It combines precise force and position control, a large 70mm full stroke, and power-off self-locking in a 231g package, all over a single RS485 connection.

Where the EG2-4B2 prioritizes speed, the EG2-4C2 prioritizes force — trading a slightly longer 1.3s closing time for the additional grip strength needed in heavier payload handling, firmer part assembly, and demanding industrial tasks. Power-off self-locking holds the grip position when power is cut — no energy draw, no part drop. IP40 rated for standard industrial and laboratory environments.

• 0–20N grip force — 33% stronger than the EG2-4B2; continuously controllable across the full range with ±1N repeatability
• 70mm full stroke (both sides) — large opening range accommodates varied part sizes
• Power-off self-locking — holds grip position without power; no energy draw, no part drop on power loss
• Linear mechanical linkage design — integrated controller, force and position control in a single compact unit
• ±0.5mm positioning repeatability — consistent, reliable part placement across cycles
• 231g — lightweight for minimal impact on robot arm payload budget
• RS485 control — single-cable integration with any RS485-compatible robot arm or controller
• IP40 protection — rated for standard industrial and laboratory environments

• Heavy payload pick-and-place — 20N grip force handles denser, heavier parts where the 4B2 would slip
• Precision machining and assembly — firm, repeatable grip for structural components and fasteners
• New energy industry handling — battery cells, modules, and energy components requiring secure grip
• Automotive parts handling — reliable grasping of heavier structural and mechanical components
• Biomedical laboratory automation — force range covers both delicate consumables at low force and heavier equipment at high force
• Unmanned retail and vending — power-off self-locking retains grip during power interruptions
• Industrial sorting and loading — continuous force control adapts to varied part weights on the same line

• Control: RS485-compatible robot controllers and PLCs
• Robotic arms: Universal Robots (UR), Kinova, UFactory xArm, Franka, and other RS485-compatible arms
• Operating environment: IP40 — standard industrial and laboratory settings
• Power: DC 24V ±10%
