Motion Capture
Full Performance Capture (Headcam) — Suit S / Gloves M
By Rokoko

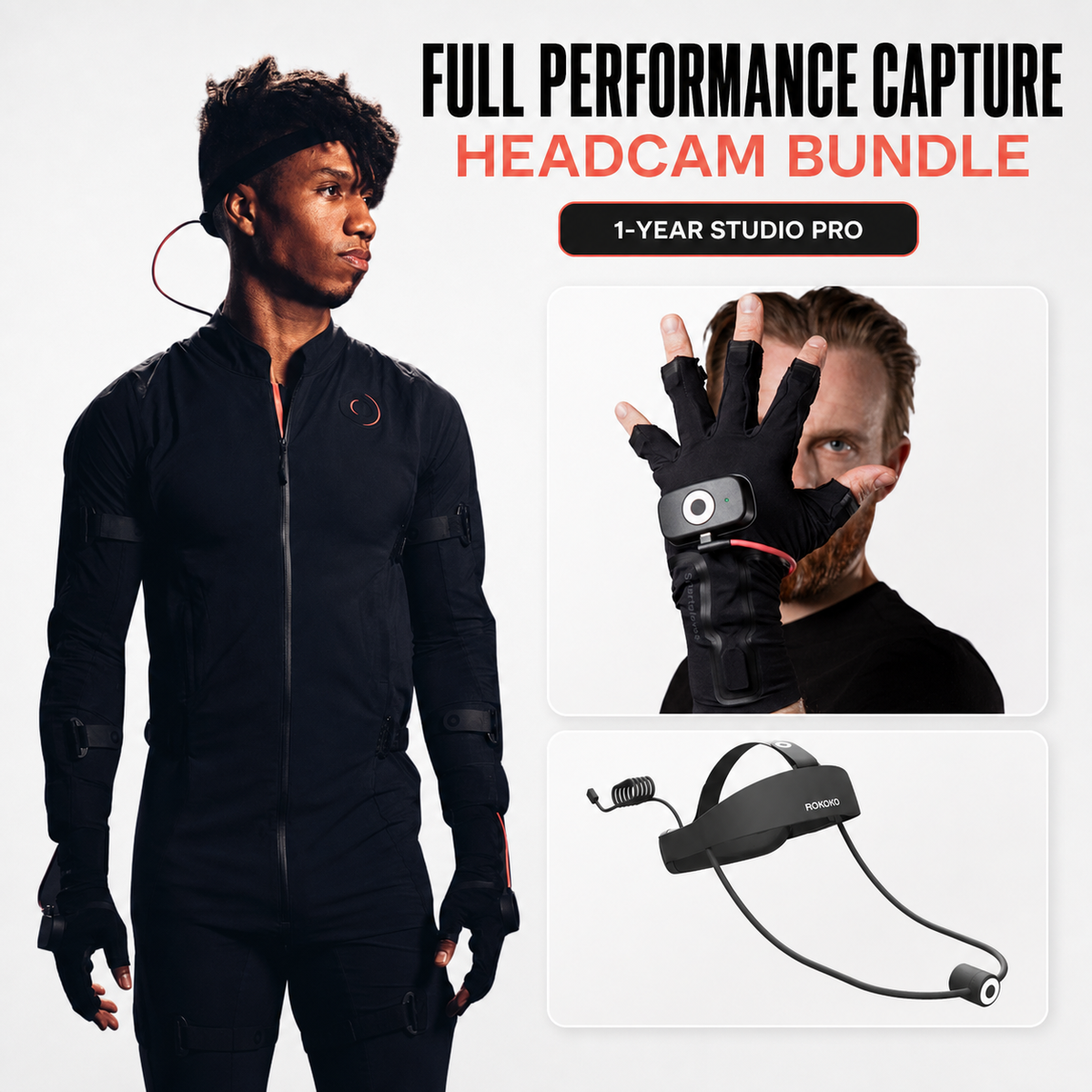

Rokoko's complete performance capture package: a Smartsuit Pro II (Glove Ready) for the body, Smartgloves II for the hands, a Headcam for the face, and a one-year Rokoko Studio Pro licence to run it all. Choose your suit size and glove size independently — every combination of S, M, L and XL is available.
Compatible with Windows · macOS · Android
From$ 5,169.25
Volume, education and public-sector pricing available on request
Suit size: S
Glove size: M
Your Configuration
Total
Quantity
- A USB power bank is not included. Rokoko recommends a 5V/3A USB-A power bank — supplying more than 5V can damage the hardware.
- Includes a one-year Rokoko Studio Pro licence. Multi-year licences can be quoted alongside the kit.
- Rokoko covers the cost of a size swap within 30 days of initial delivery.
🛠
Deployment Expertise
XR specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Features
- BODY, HANDS AND FACE—One kit covering all three capture layers — the Smartsuit Pro II for the body, Smartgloves II for the hands, and the Headcam for the face.
- GLOVE READY SUIT—Rokoko ships the Glove Ready suit in its bundles: USB-C ports replace the built-in hand sensors so the gloves connect straight to the suit.
- SIZE THE SUIT AND GLOVES SEPARATELY—Suit and glove sizes are chosen independently across S, M, L and XL — because hands and torsos do not scale together.
- A YEAR OF STUDIO PRO—Includes a one-year Rokoko Studio Pro licence, which is the tier that unlocks face capture, CSV export and the advanced command API.
- NO CAPTURE VOLUME NEEDED—Inertial capture over WiFi with up to 100 m of range — no cameras to rig, no volume to calibrate, and nothing to occlude.
Technical Specifications
Everything you need to know about tracking, performance, connectivity, and deployment hardware.
What's in the Kit
- Body
- Smartsuit Pro II (Glove Ready) — sizes S, M, L, XL
- Hands
- Smartgloves II — sizes S, M, L, XL
- Face
- Headcam — self-contained camera with built-in lighting and microphone, USB-C, works on Windows, macOS and Android
- Software
- Rokoko Studio Pro, 1-year licence
Suit — Smartsuit Pro II
- Sensor Type
- 9DOF IMU sensors connected to a hub
- Orientation Accuracy
- ± 1°
- Frame Rate
- 200 fps
- Range
- Up to 100 m, untethered over WiFi
- Glove Ready
- USB-C ports replace the built-in hand sensors for direct glove connection
Gloves — Smartgloves II
- Sensors per Glove
- 7 — hybrid IMU + EMF
- Output
- 39 DoF (45 DoF with Coil Pro)
- Data Rate
- 83.33 Hz output · 250 Hz IMU sampling
- Range
- Up to 100 m — WiFi 2.4 / 5 GHz
Power & Support
- Power
- USB power banks (not included) — 5V / 3A recommended
- Warranty
- 1 year
- Returns
- 30-day return window
- Size Swap
- Covered by Rokoko within 30 days of initial delivery
Product details
Overview
Smartsuit Pro II (Glove Ready), Smartgloves II, Headcam, and a 1-year Rokoko Studio Pro license.
Configuration: Suit S / Gloves M
Official Rokoko product supplied by Knoxlabs.
Fit and ordering
This is a size-specific package. Confirm both the suit and glove sizes shown above before ordering. The Headcam or Headrig configuration named in the title determines the facial-capture mount supplied.
Workflow
The package brings body, finger, and facial performance capture into one coordinated Rokoko Studio setup. A compatible computer and phone are not included.
Need More Than Hardware?
Knoxlabs also handles the deployment.
Device setup
MDM enrollment
Asset tagging
Shipping coordination
User onboarding
XR deployment consulting
FAQ
How do I choose suit and glove sizes?
They are chosen independently — pick your suit size and your glove size from the two selectors above, in any combination of S, M, L and XL. Rokoko publishes measurement charts for both in its support centre, and covers the cost of a size swap within 30 days of initial delivery.
What happens after the first year of Rokoko Studio Pro?
The included licence covers one year. After that you renew Studio Pro, or step down to a lower tier — bear in mind that face capture, CSV export and the command API sit at the Pro tier. We can quote multi-year Studio licences alongside the kit at the outset.
Do I need power banks?
A USB power bank is not included. Rokoko recommends a 5V/3A USB-A power bank — supplying more than 5V can damage the hardware. You will need power for both the suit and the gloves.
Should I add a Coil Pro?
Only if you need absolute global position. Coil Pro adds drift-free positioning via an electromagnetic field, taking glove output from 39 to 45 degrees of freedom. It requires Smartgloves, which this kit includes, so it is a clean upgrade later if you decide you need it.
Headcam or Headrig?
The Headrig mounts an iPhone with a TrueDepth camera and captures through ARKit, iOS only. The Headcam is a self-contained camera with its own optics, lighting and microphone that works on Windows, macOS and Android. This kit is the Headcam version; the other variant is also available.
Can Knoxlabs provision and deploy this for us?
Yes. Knoxlabs handles device setup, software installation, asset tagging and deployment coordination so the kit arrives ready to use. We also support ongoing provisioning and technical support for multi-seat rollouts.
Do you offer volume, education or government pricing?
Yes. Volume pricing is available for multi-unit orders, and we support education and public-sector procurement including quotes, POs and net terms. Request a quote and our team will scope it with you.
