Motion Capture
Full Performance Capture (Headcam) — Suit L / Gloves XL
By Rokoko
Rokoko's complete performance capture package: a Smartsuit Pro II (Glove Ready) for the body, Smartgloves II for the hands, a Headcam for the face, and a one-year Rokoko Studio Pro licence to run it all. Choose your suit size and glove size independently — every combination of S, M, L and XL is available.
Compatible with Windows · macOS · Android
From$ 5,169.25
Volume, education and public-sector pricing available on request
Configuration: Suit L / Gloves XL
Your Configuration
Total
Quantity
Ships within 15-30 days
- A USB power bank is not included. Rokoko recommends a 5V/3A USB-A power bank — supplying more than 5V can damage the hardware.
- Includes a one-year Rokoko Studio Pro licence. Multi-year licences can be quoted alongside the kit.
- Rokoko covers the cost of a size swap within 30 days of initial delivery.
🛠
Deployment Expertise
XR specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Features
- BODY, HANDS AND FACE—One kit covering all three capture layers — the Smartsuit Pro II for the body, Smartgloves II for the hands, and the Headcam for the face.
- GLOVE READY SUIT—Rokoko ships the Glove Ready suit in its bundles: USB-C ports replace the built-in hand sensors so the gloves connect straight to the suit.
- SIZE THE SUIT AND GLOVES SEPARATELY—Suit and glove sizes are chosen independently across S, M, L and XL — because hands and torsos do not scale together.
- A YEAR OF STUDIO PRO—Includes a one-year Rokoko Studio Pro licence, which is the tier that unlocks face capture, CSV export and the advanced command API.
- NO CAPTURE VOLUME NEEDED—Inertial capture over WiFi with up to 100 m of range — no cameras to rig, no volume to calibrate, and nothing to occlude.
Technical Specifications
Everything you need to know about tracking, performance, connectivity, and deployment hardware.
What's in the Kit
- Body
- Smartsuit Pro II (Glove Ready) — sizes S, M, L, XL
- Hands
- Smartgloves II — sizes S, M, L, XL
- Face
- Headcam — self-contained camera with built-in lighting and microphone, USB-C, works on Windows, macOS and Android
- Software
- Rokoko Studio Pro, 1-year licence
Suit — Smartsuit Pro II
- Sensor Type
- 9DOF IMU sensors connected to a hub
- Orientation Accuracy
- ± 1°
- Frame Rate
- 200 fps
- Range
- Up to 100 m, untethered over WiFi
- Glove Ready
- USB-C ports replace the built-in hand sensors for direct glove connection
Gloves — Smartgloves II
- Sensors per Glove
- 7 — hybrid IMU + EMF
- Output
- 39 DoF (45 DoF with Coil Pro)
- Data Rate
- 83.33 Hz output · 250 Hz IMU sampling
- Range
- Up to 100 m — WiFi 2.4 / 5 GHz
Power & Support
- Power
- USB power banks (not included) — 5V / 3A recommended
- Warranty
- 1 year
- Returns
- 30-day return window
- Size Swap
- Covered by Rokoko within 30 days of initial delivery
Product details
Overview

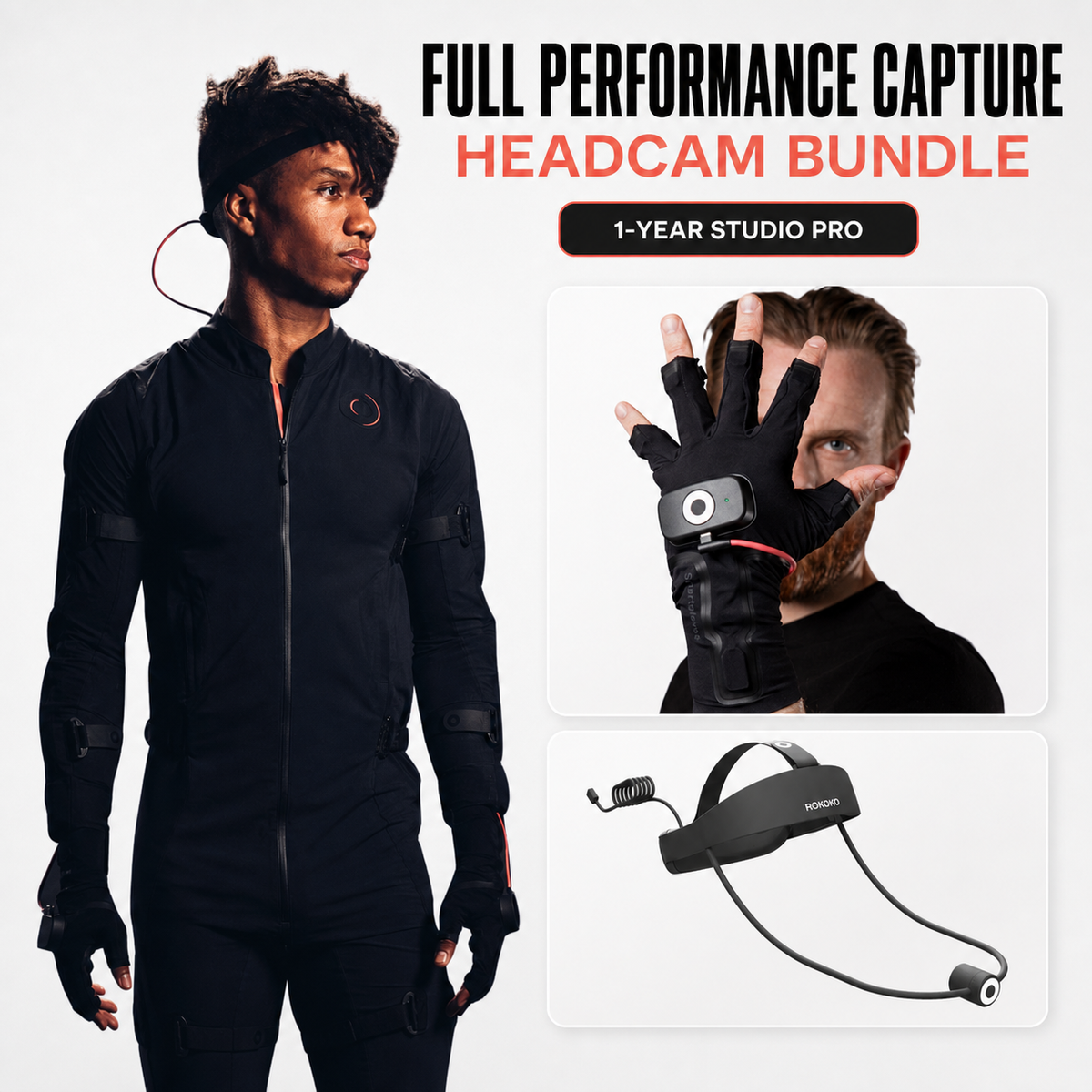

A complete Rokoko package for synchronized body, finger and facial performance capture. This listing is configured with a size L Smartsuit Pro II and size XL Smartgloves II.
Included
- Smartsuit Pro II (Glove Ready) for wireless full-body capture
- Smartgloves II for finger and hand motion
- Headcam for facial capture
- Rokoko Studio Pro — 1-year license
Headcam workflow
Headcam adds a built-in 60 fps camera, microphone and dimmable LED lighting over USB-C. It can feed Rokoko’s Android Face Capture workflow or supported third-party pipelines such as MetaHuman Animator, AccuFACE, Faceware and VSeeFace.
System requirements
- A compatible Windows or Apple-silicon macOS computer running Rokoko Studio
- A reliable Wi-Fi network for the suit and gloves
- USB power banks for the wearable hardware; batteries are not included
- A compatible phone or computer for the selected face-capture workflow
Suit and glove sizes are selected independently. Confirm both measurements before ordering; Knoxlabs can review sizing and pipeline compatibility for studio, education and research deployments.
Need More Than Hardware?
Knoxlabs also handles the deployment.
Device setup
MDM enrollment
Asset tagging
Shipping coordination
User onboarding
XR deployment consulting
FAQ
How do I choose suit and glove sizes?
They are chosen independently — pick your suit size and your glove size from the two selectors above, in any combination of S, M, L and XL. Rokoko publishes measurement charts for both in its support centre, and covers the cost of a size swap within 30 days of initial delivery.
What happens after the first year of Rokoko Studio Pro?
The included licence covers one year. After that you renew Studio Pro, or step down to a lower tier — bear in mind that face capture, CSV export and the command API sit at the Pro tier. We can quote multi-year Studio licences alongside the kit at the outset.
Do I need power banks?
A USB power bank is not included. Rokoko recommends a 5V/3A USB-A power bank — supplying more than 5V can damage the hardware. You will need power for both the suit and the gloves.
Should I add a Coil Pro?
Only if you need absolute global position. Coil Pro adds drift-free positioning via an electromagnetic field, taking glove output from 39 to 45 degrees of freedom. It requires Smartgloves, which this kit includes, so it is a clean upgrade later if you decide you need it.
Headcam or Headrig?
The Headrig mounts an iPhone with a TrueDepth camera and captures through ARKit, iOS only. The Headcam is a self-contained camera with its own optics, lighting and microphone that works on Windows, macOS and Android. This kit is the Headcam version; the other variant is also available.
Can Knoxlabs provision and deploy this for us?
Yes. Knoxlabs handles device setup, software installation, asset tagging and deployment coordination so the kit arrives ready to use. We also support ongoing provisioning and technical support for multi-seat rollouts.
Do you offer volume, education or government pricing?
Yes. Volume pricing is available for multi-unit orders, and we support education and public-sector procurement including quotes, POs and net terms. Request a quote and our team will scope it with you.
