Motion Capture
Coil Pro
By Rokoko

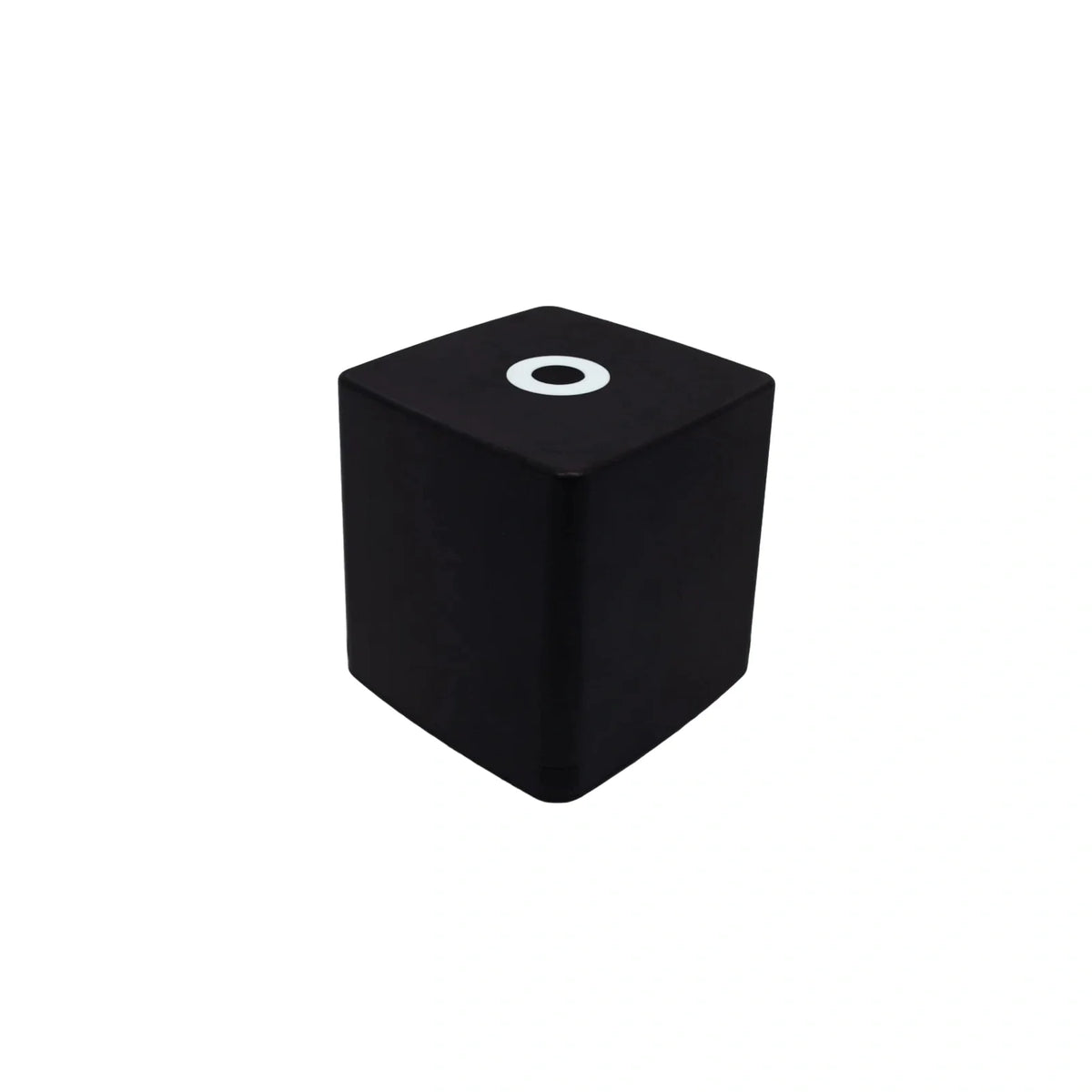

Coil Pro generates an electromagnetic field that gives Rokoko Smartgloves — and, through them, the Smartsuit Pro II — absolute global position without cameras. Rokoko describes it as hybrid EMF and IMU tracking delivering optical-grade global positioning that is drift-free and occlusion-free. Smartgloves are required; a tripod is not included.
Compatible with Windows · macOS
$ 3,444.25
Volume, education and public-sector pricing available on request
Your Configuration
Total
Quantity
- Requires Rokoko Smartgloves. Tripod is sold separately; the power supply with international adapters is included.
- Requires Rokoko Studio — not Rokoko Studio Legacy.
- Ferrous metal in the room affects the EMF field. Talk to us about a site check before you order.
🛠
Deployment Expertise
XR specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Features
- ABSOLUTE POSITION, NO CAMERAS—Coil Pro emits an electromagnetic field that gives Smartgloves true global position — Rokoko describes it as optical-grade global positioning without cameras, drift-free and occlusion-free.
- GLOVES ARE THE RECEIVER—Smartgloves establish the EMF position. Rokoko notes the Smartsuit Pro I and II derive global position data only when paired with Smartgloves, so gloves are a hard requirement.
- UP TO THREE LIVE ACTORS—Rokoko rates the system for up to three live actors for total accuracy, and warns of WiFi lag beyond that.
- MOUNTS ANYWHERE—A 1/4"-20 UNC thread at the base takes a standard tripod or a ceiling mount. The tripod is sold separately; the power supply with EU/US/UK/AU adapters is included.
- KNOW YOUR SPACE—Field strength is 0.5 µT per axis at 1 m, with a recommended minimum working distance of about 50 cm. Ferrous metal in the room affects the field — worth a site check before you commit.
Technical Specifications
Everything you need to know about tracking, performance, connectivity, and deployment hardware.
Tracking
- Technology
- Electromagnetic field (EMF) with IMU sensor fusion
- Positioning
- Absolute global position — drift-free and occlusion-free
- Signal Radius i
- Up to approx. 5 m; approx. 2–3 m recommended for optimal accuracy
- Minimum Distance
- Approx. 50 cm — closer saturates the sensors
- Field Strength
- 0.5 µT on each axis at 1 m
- Field Frequencies
- X 20,333 Hz · Y 20,667 Hz · Z 21,000 Hz
- Simultaneous Actors
- Up to 3 live actors for total accuracy
- Out of Range
- Suit falls back to IMU sensors; gloves-only locks to last known position
Physical & Power
- Weight
- 6 kg
- Dimensions
- 21 x 21 x 23 cm
- Mount
- 1/4"-20 UNC thread at the base — tripod or ceiling
- Tripod
- Not included — sold separately
- Power
- 12 VDC, max 12 W
- Power Supply
- Included, with EU / US / UK / AU adapters
Compatibility & Constraints
- Requires
- Rokoko Smartgloves — the gloves establish EMF position
- Works With
- Gloves only, or Smartgloves with Smartsuit Pro II
- Software
- Rokoko Studio (not Rokoko Studio Legacy)
- Environment
- Ferrous metal affects the field
- Feature Conflicts
- Cannot be combined with the positioning tool, treadmill filter or elevation tracking while active
- Safety Clearances
- Keep 1.5 m from guitar pickups and dynamic microphones; 2 m from hearing aids
Product details
Overview
An add-on to the Smartsuit Pro II and Smartgloves II providing absolute positioning for reduced drift and precise interactions. Tripod not included. Get the recommended tripod here .
Official Rokoko product supplied by Knoxlabs.
Need More Than Hardware?
Knoxlabs also handles the deployment.
Device setup
MDM enrollment
Asset tagging
Shipping coordination
User onboarding
XR deployment consulting
FAQ
Do I need Smartgloves to use Coil Pro?
Yes. Rokoko states the Coil Pro requires Smartgloves to establish EMF position. It can run gloves-only, or with Smartgloves plus a Smartsuit Pro II. The suits derive global position data only when paired with the gloves.
What is the actual capture range?
Rokoko publishes this inconsistently: the store page says a 2 m radius, the product page mentions both 2 m and 5 m, and the support centre says the gloves pick up the signal within a 5 m radius but recommends staying within 3 m for optimal EMF accuracy. Plan for roughly 2–3 m of high-accuracy space with signal out to about 5 m, and keep performers at least 50 cm from the unit. We are happy to review your capture space with you.
Is a tripod included?
No. The Coil Pro has a 1/4"-20 UNC thread at its base for a tripod or ceiling mount, and Rokoko sells a recommended tripod separately. The power supply with EU/US/UK/AU adapters is included.
What happens if a performer walks out of range?
With a suit, the IMU sensors take over and capture continues inertially. In a gloves-only setup, tracking locks to the last known position until the performer returns to the field.
Are there environmental restrictions?
Yes. Ferrous metal affects the field, so structural steel, metal staging and rebar-heavy floors all matter. Rokoko also advises keeping 1.5 m from guitar pickups and dynamic microphones and 2 m from hearing aids. Coil Pro cannot be combined with the positioning tool, treadmill filter or elevation tracking while it is active.
Can Knoxlabs provision and deploy this for us?
Yes. Knoxlabs handles device setup, software installation, asset tagging and deployment coordination so the kit arrives ready to use. We also support ongoing provisioning and technical support for multi-seat rollouts.
Do you offer volume, education or government pricing?
Yes. Volume pricing is available for multi-unit orders, and we support education and public-sector procurement including quotes, POs and net terms. Request a quote and our team will scope it with you.
