XJCSENSOR X-S05-25 Miniature In-line Load Cell, Ø25.4 mm, 5–100 kg
By XJCSENSOR
Model: X-S05-25
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview

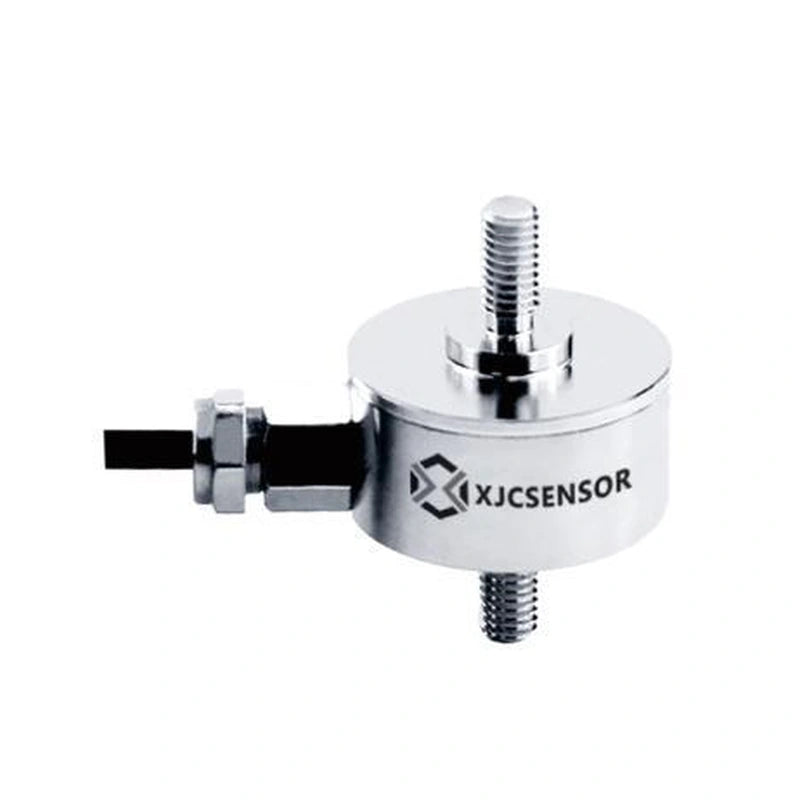

The XJCSENSOR X-S05-25 is a miniature in-line load cell (Ø25.4 × 37 mm), available from 5kg to 100kg, with mV/V (1.0±0.2 mV/V rated output) strain-gauge output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 kg
- Sealed welded construction, corrosion resistant
- Compression and tension, easy to install
- Small size
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg; 100kg |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.1% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 5–10 VDC (max 10 VDC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.1% F.S./10 °C / ≤0.1% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 750±5 Ω / 700±5 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø25.4 × 37 (F) overall; 12.5 body (D); 11.5 (C); 10.5 (E) |
| Mounting | Threaded studs A both ends, 7 long (B), 10 (H): 5–50 kg M5; 100 kg M6 |
| Connection | Ø3×4 m |
Capacity options and dimensions (mm)
| Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 5/10/20/50kg | M5 | 7 | 11.5 | 12.5 | 10.5 | 37 | 1 | 10 |
| 100kg | M6 | 7 | 11.5 | 12.5 | 10.5 | 37 | 1 | 10 |
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).
🛠
