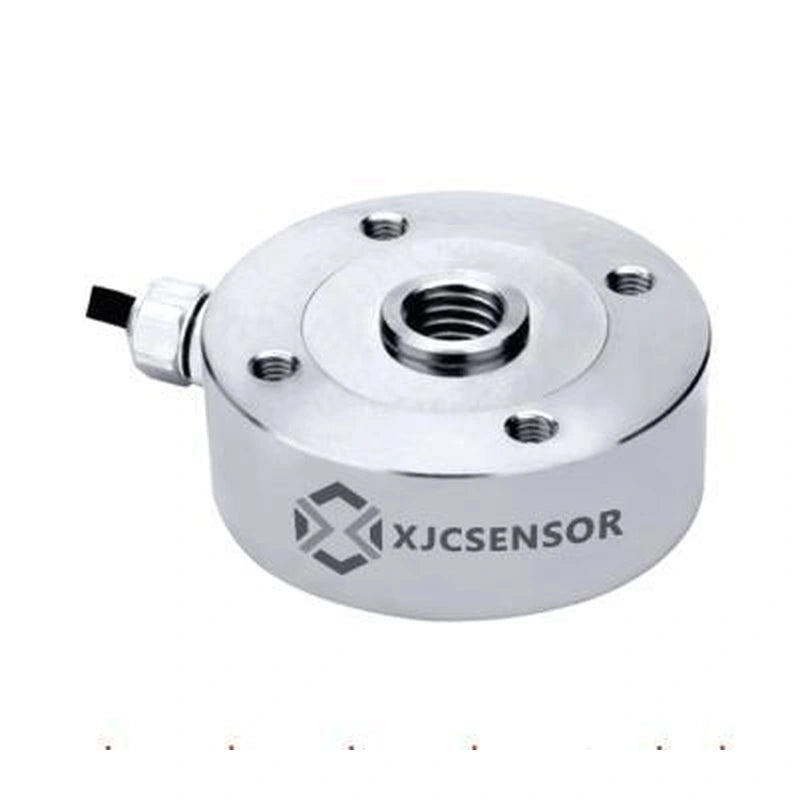

XJCSENSOR X-L11-55 Compression Load Cell, Ø55 mm, 50 kg–2 t
By XJCSENSOR
Model: X-L11-55
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-L11-55 is a compression load cell (Ø55 × 22 mm), available from 50kg to 2t, with mV/V (2.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–2 t
- Oil, moisture and corrosion resistance
- Capsule structure with robust pressure-bearing design and simplified installation
- High response frequency
Specifications
| Capacity | 50kg; 100kg; 200kg; 500kg; 1t; 2t |
|---|---|
| Output | mV/V (2.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.1% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.1% F.S./10 °C / ≤0.1% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 380±30 Ω (750±50 Ω) / 350±10 Ω (700±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Alloy steel |
| Dimensions | Ø55 × 22 (20); Ø16 boss |
| Mounting | 4×M5 through EQS on Ø41.5 PCD at 45°; M12 centre thread |
| Connection | Ø4×4 m |
Capacity options
50kg; 100kg; 200kg; 500kg; 1t; 2t
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
