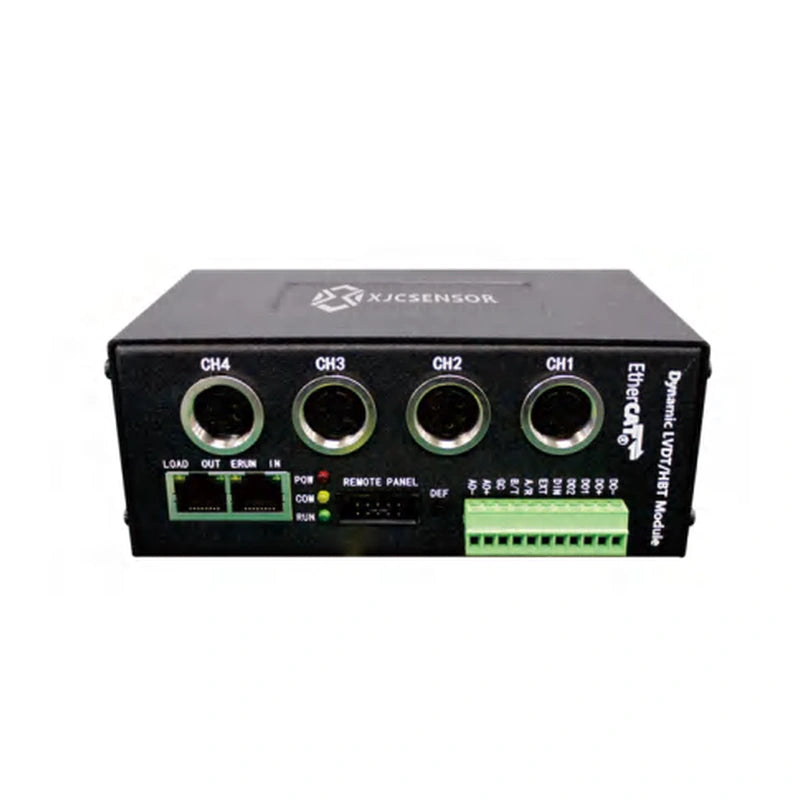

The XJCSENSOR X-E102 is a displacement ethercat module, T1: 1; T2: 2; T4: 4; T5: 5 channels, with EtherCAT + RS485 + RS232 output, powered from 24 VDC (5 VDC sensor supply).
Features
- Built-in multi-stage amplification chip with independent power supply for the sensor
- Multiple sensitivity inputs, switchable
- High speed, high transmission speed and high dynamic response frequency
- Good long-term stability and anti-interference performance
Specifications
| Channels / inputs | T1: 1; T2: 2; T4: 4; T5: 5 channels |
|---|---|
| Output | EtherCAT + RS485 + RS232 |
| Nonlinearity | 0.1%–0.05% F.S. |
| Repeatability | 0.1%–0.05% F.S. |
| Hysteresis | 0.1%–0.05% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 24 VDC (5 VDC sensor supply) |
| Operating temperature | −10~50 °C, humidity below 85% RH |
| Rated input | 0.5–14 mV/V |
| Resolution | 1/50000 |
| Sampling rate | 10, 9.6k, 19.2k |
| Display accuracy | −199,999–999,999 |
| Power | Around 5 W |
| Communication interface | Real-time Ethernet EtherCAT, RS232, RS485 |
| Material | Metal |
| Dimensions | 146 × 112 × 57.5 (body 132 × 98); DIN-rail |
| Mounting | DIN-rail |
| Connection | 4× M12 probe sockets; 2× RJ45 |
Ordering guide
Model code
| MDL | Channel | Input signal | Accuracy | Power supply | Transmitting out |
|---|---|---|---|---|---|
| X-E102 | T1: 1; T2: 2; T4: 4; T5: 5 channels | W: displacement signal | B: 0.05%; D: 0.1%–0.5% | D: 24VDC | R2: RS232; R4: RS485; Y: real-time EtherNET EtherCAT |
Applications
Dynamic LVDT/HBT displacement probes to real-time EtherCAT.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
