VR Headset

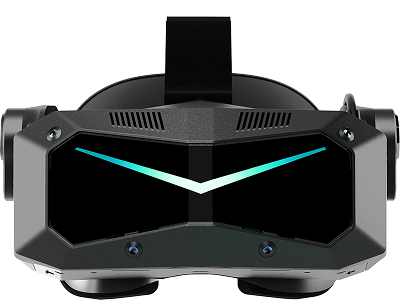

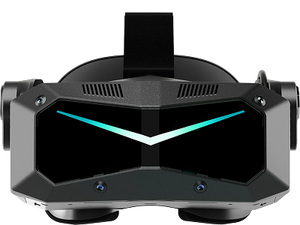

Pimax Crystal Super 57 PPD
By Pimax
The 57 PPD QLED configuration of Crystal Super prioritizes fine detail for simulation, training and visualization. It pairs 3840 × 3840 pixels per eye with a 106° horizontal field of view.
Compatible with PC VR
From$ 1,599.00
Pricing on request
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
In StockShips within 1-3 business days
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
Pimax Crystal Super 57 PPD is the sharpest QLED configuration in the Crystal Super family, built for PC VR simulation, training and visualization where fine text and distant detail matter.
Display and optics
- 3840 × 3840 resolution per eye
- 57 pixels per degree
- 106° horizontal field of view
- 72/90 Hz variable refresh rate
- QLED + MiniLED panels with local dimming
- Glass aspheric lenses
Tracking and fit
- Automatic IPD adjustment from 58–72 mm
- Dynamic Foveated Rendering 2.0
- Inside-out tracking; optional Lighthouse tracking
- Two controllers included
PC VR requirements
This is a PCVR-only headset with no onboard battery. It requires Windows 10 or 11, DisplayPort 1.4a and USB 3.0 or later.
Audio
3.5 mm interchangeable audio jack and dual microphones.
Features
- Fine detail—57 pixels per degree helps keep small text, gauges and distant objects legible.
- Local dimming—QLED and MiniLED panels improve contrast across bright and dark scenes.
- Flexible tracking—Inside-out tracking is standard; Lighthouse tracking is available as an option.
- Eye-tracked rendering—Dynamic Foveated Rendering 2.0 concentrates detail where the user looks.
Technical Specifications
Product specifications, requirements, and deployment details.
Technical specifications
- Display
- QLED + MiniLED with local dimming
- Resolution
- 3840 × 3840 pixels per eye
- Pixel density
- 57 PPD
- Horizontal field of view
- 106°
- Refresh rate
- 72 or 90 Hz
- Lenses
- Glass aspheric
- IPD
- Automatic, 58–72 mm
- Connection
- PC VR via DisplayPort
- Eye tracking
- Built in; supports dynamic foveated rendering
- Tracking
- Inside-out; optional Lighthouse expansion
- Optical engine
- Replaceable Crystal Super engine
- Audio
- 3.5 mm audio jack; dual microphones
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
How does 57 PPD differ from Ultrawide?
The 57 PPD version emphasizes central clarity at 106° horizontal FOV. Ultrawide keeps 50 PPD and expands horizontal FOV to 140°.
Does it run without a PC?
No. Crystal Super is a PC VR headset that requires a compatible Windows PC and DisplayPort connection.
