XR Controller

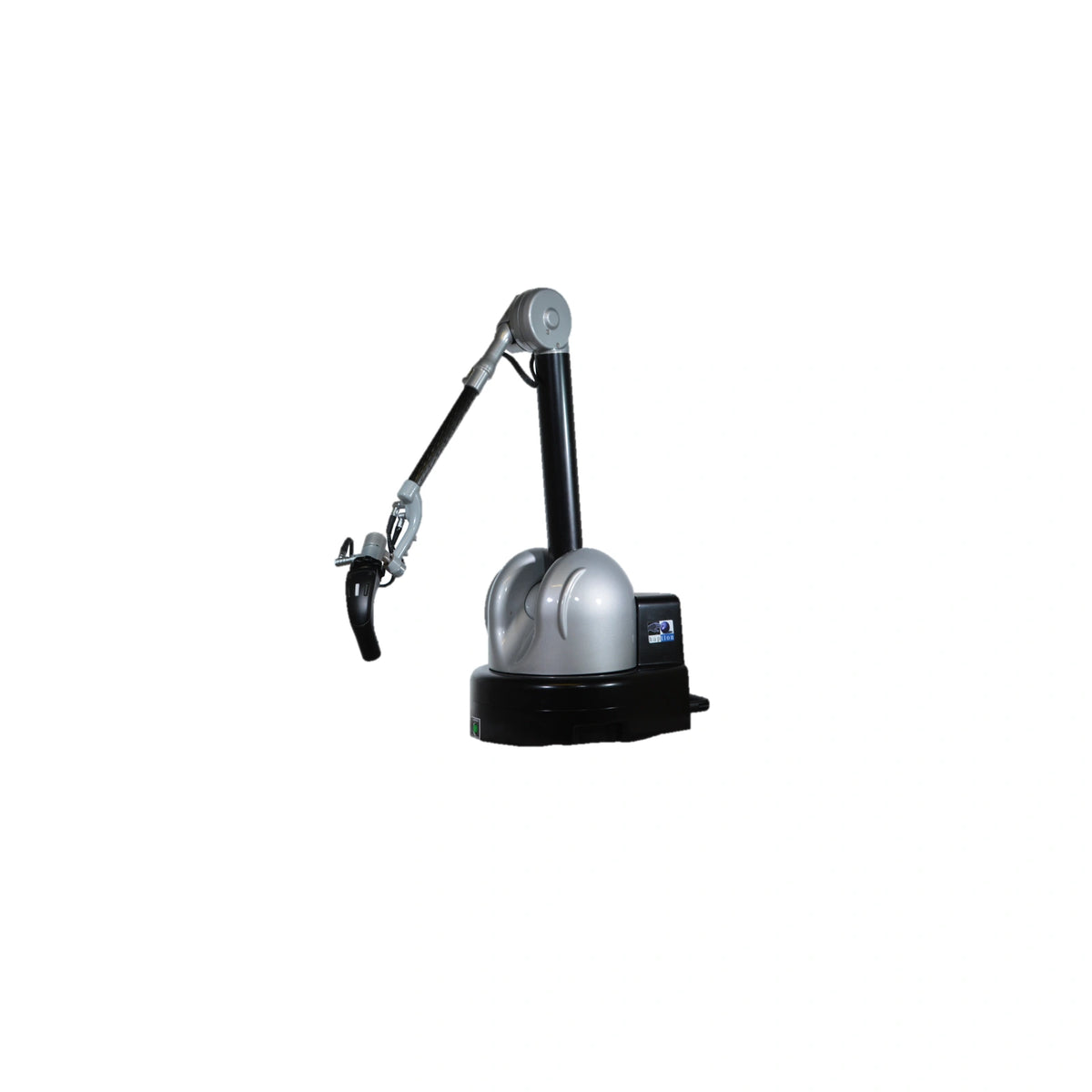

Haption Virtuose 3D RV High Force
By Haption
A large-workspace haptic device with three active force-feedback translations and passive orientation measurement for virtual prototyping and simulation. The High Force configuration increases peak and continuous translational force.
Compatible with Windows · Linux · ROS · ROS 2
Pricing and availability confirmed with your configuration quote.
Device: Virtuose 3D RV High Force
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Ships from France. Configuration and lead time are confirmed before order.
- Hardware, software and integration are itemized in the final quotation.
- Quoted hardware pricing includes an estimated import allowance. Final freight, tax and customs treatment are confirmed on quote.
Product details
Overview
A large-workspace haptic device with three active force-feedback translations and passive orientation measurement for virtual prototyping and simulation. The High Force configuration increases peak and continuous translational force.
Key capabilities
- Large workspace: Interact with digital mock-ups through a 1,313 × 640 × 954 mm translation workspace.
- Force feedback: 70 N peak and 30 N continuous force is specified at the workspace center.

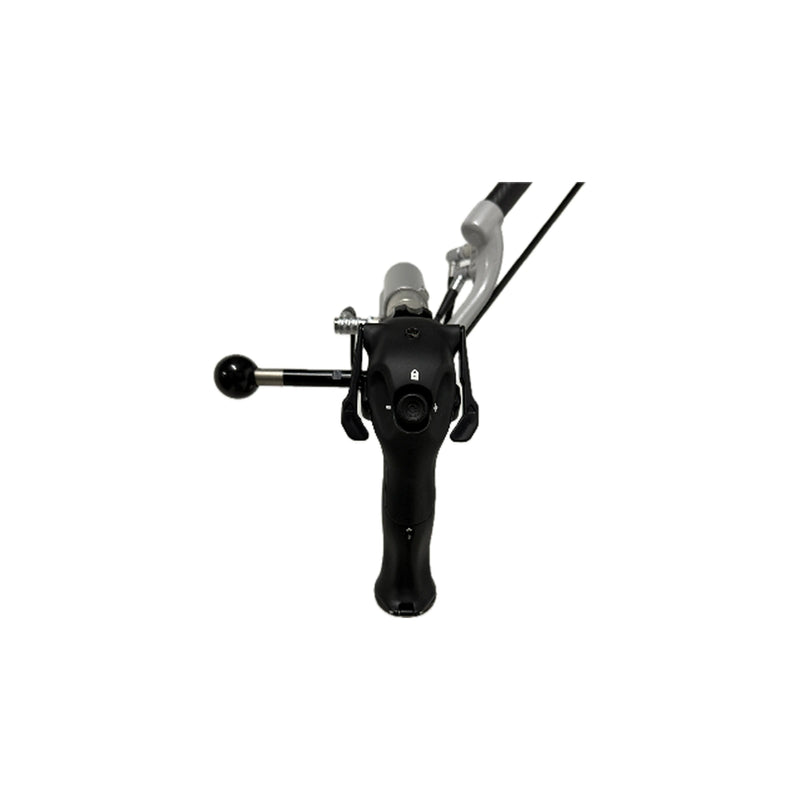

- Interchangeable handle: A tool-free removable end effector supports application-specific handles.
- Communication options: Ethernet/UDP is standard; EtherCAT is available on request.
Technical specifications
| Active feedback | 3 active translation axes; 6-axis pose measurement |
|---|---|
| Translation workspace | 1,313 × 640 × 954 mm |
| Rotation workspace | 330° × 120° × 267° |
| Peak / continuous force | 70 N / 30 N at the center of the workspace |
| Position resolution | 0.0054 mm |
| Rotation resolution | 0.35° |
| Device mass | 15 kg, plus 3.4 kg external power supply |
| Maximum translation stiffness | 5,000 N/m |
| Power consumption | 200 W average; 800 W maximum |
| Supply voltage | 100–240 VAC, 50/60 Hz, single phase |
| Control update rate | 1,000 Hz |
| Software integration | Native C/C++ interface with Windows and Linux support; ROS, ROS 2 and CHAI3D drivers are listed by Haption. Unity and Unreal integration is available through partners. Other development environments require application integration and are not assumed to include example drivers. |
| Supply route | Ships from France; availability and dispatch timing confirmed with Haption |
| Price basis | Configuration-specific quotation |
Configuration and delivery
- Ships from France. Configuration and lead time are confirmed before order.
- Hardware, software and integration are itemized in the final quotation.
- Quoted hardware pricing includes an estimated import allowance. Final freight, tax and customs treatment are confirmed on quote.
Features
- Large workspace—Interact with digital mock-ups through a 1,313 × 640 × 954 mm translation workspace.
- Force feedback—70 N peak and 30 N continuous force is specified at the workspace center.
- Interchangeable handle—A tool-free removable end effector supports application-specific handles.
- Communication options—Ethernet/UDP is standard; EtherCAT is available on request.
Technical Specifications
Everything you need to know about tracking, performance, connectivity, and deployment hardware.
Technical specifications
- Active feedback
- 3 active translation axes; 6-axis pose measurement
- Translation workspace
- 1,313 × 640 × 954 mm
- Rotation workspace
- 330° × 120° × 267°
- Peak / continuous force
- 70 N / 30 N at the center of the workspace
- Position resolution
- 0.0054 mm
- Rotation resolution
- 0.35°
- Device mass
- 15 kg, plus 3.4 kg external power supply
- Maximum translation stiffness
- 5,000 N/m
- Power consumption
- 200 W average; 800 W maximum
- Supply voltage
- 100–240 VAC, 50/60 Hz, single phase
- Control update rate
- 1,000 Hz
- Software integration
- Native C/C++ interface with Windows and Linux support; ROS, ROS 2 and CHAI3D drivers are listed by Haption. Unity and Unreal integration is available through partners. Other development environments require application integration and are not assumed to include example drivers.
- Supply route
- Ships from France; availability and dispatch timing confirmed with Haption
- Price basis
- Configuration-specific quotation
Why Teams Choose Virtuose 3D RV High Force
Choose a configuration around your application, workspace and integration requirements.
Large workspace
Interact with digital mock-ups through a 1,313 × 640 × 954 mm translation workspace.
Force feedback
70 N peak and 30 N continuous force is specified at the workspace center.
Interchangeable handle
A tool-free removable end effector supports application-specific handles.
Communication options
Ethernet/UDP is standard; EtherCAT is available on request.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need More Than Hardware?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
How do I order this configuration?
Request a quote with the application, quantity, destination and required software. Knoxlabs will confirm the exact configuration, lead time and final delivered price with Haption.
What is included?
Only the components itemized in your quote are included. Robots, displays, immersive rooms, optional sensors, SDK licenses and integration work are not included unless expressly listed.
Where does it ship from?
Hardware ships from France. Dispatch dates and delivery terms are confirmed on quote.
What warranty is available?
Haption confirmed a standard 12-month hardware warranty. Start date, exclusions and RMA handling are confirmed in the final order terms.
