Haptic Simulation Workbench
By Knoxlabs
Feel simulated contact, resistance and torque through the Desktop 6D's six-axis force-feedback handle. Use the included API to connect the device to your engineering, simulation or research application.Core Kit includes1 × Desktop 6D with analog pinch, handle button and three-button boxStandard manufacturer controller and power accessoriesIncluded Virtuose API, manufacturer drivers and demo resourcesCommissioned System addsPC suitability review, API/demo installation, device validation, setup notes and a scoped developer handover.You provide: Windows/Linux PC, display, dedicated Ethernet/Cat6, mounting surface and mains power.
Compatible with Windows · Linux · ROS · ROS 2
Configuration quote required. Commissioning, optional PC, custom application work, freight and taxes are quoted separately.
Package: Core Kit
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Core Kit supplies Desktop 6D, its standard controls/controller/power accessories and included device API resources.
- Commissioned System adds the defined API/demo setup, device checks and handover; service fees are quoted separately.
- PC, display, dedicated Ethernet/Cat6 and mounting surface are customer supplied or separately quoted.
- Custom simulation applications, XR headsets, clinical curricula and ongoing support are separate unless expressly quoted.
Product details
Overview
Selected package: Core Kit. Supplies the listed components for your integration team. Choose Commissioned System to add the services listed below.
What it does: Feel simulated contact, resistance and torque through the Desktop 6D's six-axis force-feedback handle. Use the included API to connect the device to your engineering, simulation or research application.
Designed for: For developers adding physical interaction to virtual assembly, engineering research or a custom simulation. The manufacturer demo provides a device starting point; your finished application is a separate scope.

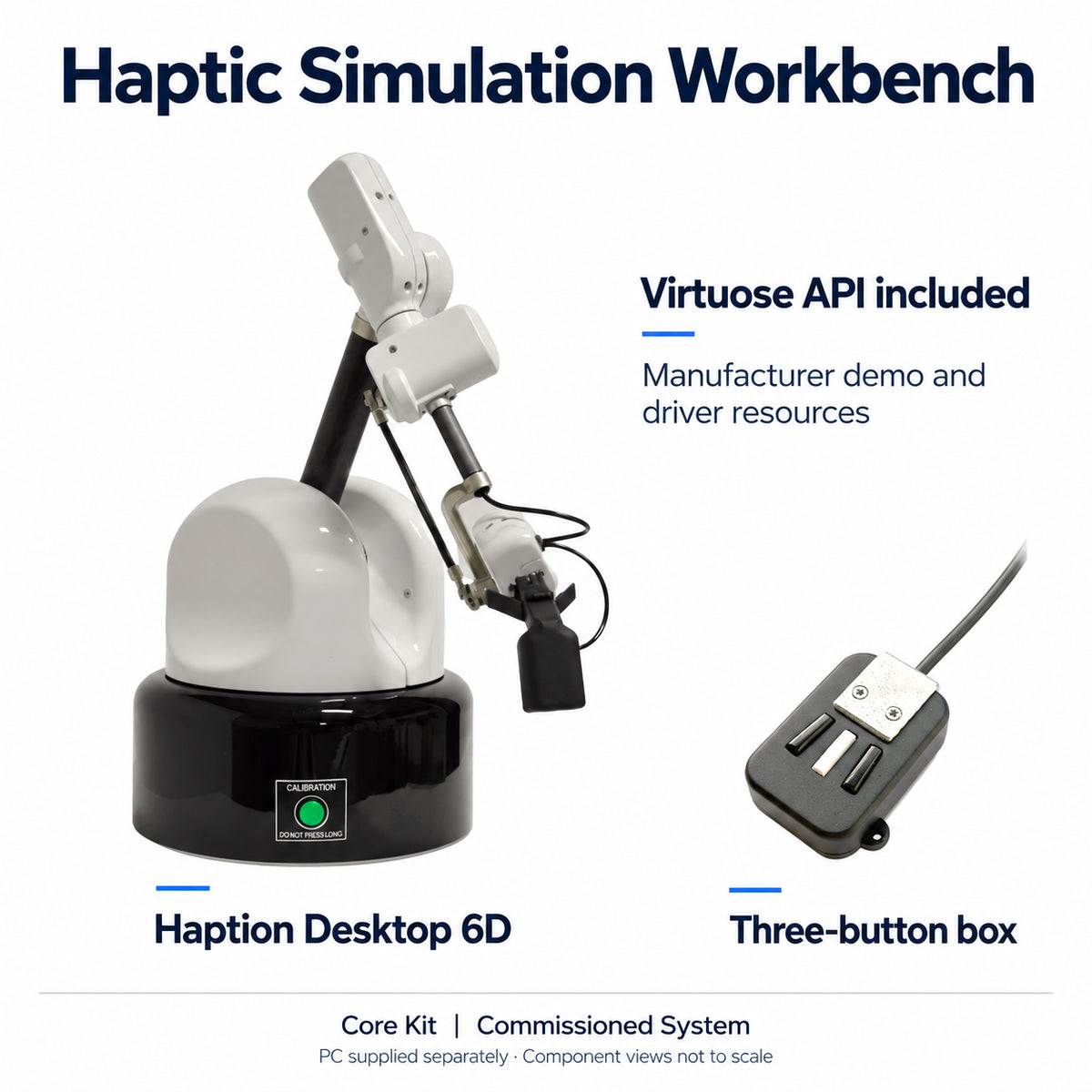

What's included — Core Kit
- 1 × Haption Desktop 6D: Renders force and torque from a connected simulation and captures operator inputs. Six active feedback axes with its own analog finger pinch, handle button and separate three-button box.
- 1 × manufacturer controller/power set: Controls and powers the haptic device. Standard external controller and power accessories for the quoted Desktop 6D configuration.
- 1 × included Virtuose API license: Provides the software interface for integrating device motion, forces and controls into an application. Device API included with Desktop 6D; supported versions and deployment rights confirmed on quote.
- Manufacturer demo and driver resources: Helps developers connect and check the device with the manufacturer software. Provided software resources; installation and validation are part of Commissioned System.
Commissioned System adds
- Review the Windows/Linux workstation, dedicated Ethernet interface, application requirements and mounting/power arrangement.
- Install the manufacturer device API, drivers and demonstration application on the agreed PC.
- Validate six-axis device feedback, finger-pinch signal and operator buttons using the agreed demo/test.
- Provide setup/configuration notes, operator orientation and a scoped C++/ROS 2 developer handover; custom application code is a separate deliverable.
You provide or request separately: Windows/Linux PC, display, dedicated Ethernet/Cat6, mounting surface and mains power.
Quotation: Configuration quote required. Commissioning, optional PC, custom application work, freight and taxes are quoted separately.
Technical reference
| Feedback | 6 active DoF plus passive analog finger pinch (0–100% signal). |
|---|---|
| Translation / rotation workspace | 500 × 230 × 380 mm; 257° × 87° × 242°. |
| Peak / continuous force | 10 N / 3 N at the center of the workspace. |
| Peak / continuous torque | 0.78 Nm / 0.21 Nm. |
| Position / rotation resolution | 0.0234 mm / 0.0023°. |
| Mass and power | Device 4 kg plus external controller 2.4 kg; less than 350 W; 100–240 VAC, 50/60 Hz. |
| Device update / network | 1,000 Hz manufacturer control update; Ethernet / UDP. This is not a guaranteed application or logging rate. |
| Software | Included Virtuose API; native C/C++, Windows/Linux, ROS/ROS 2 and CHAI3D routes listed by Haption. Partner/application integration may be required. |
Customer requirements and exclusions
| Customer supplies | Windows or Linux PC, suitable display, dedicated Ethernet port, RJ45 Cat6 cable, stable mounting surface and compatible mains power. |
|---|---|
| Suggested PC starting point | Supplier guidance suggests a dual- or quad-core PC with 16 GB RAM; final CPU/GPU, OS and interface requirements depend on the chosen application. |
| Workstation procurement | A configured PC can be quoted separately. No PC model or PC price is included in the known hardware subtotal. |
| Optional XR display | HMD/display selected only after application, SDK and graphics review; not included by default. |
| Excluded unless itemized | Custom simulation content, customer application development, HMD, workstation, special mounting, onsite travel, ongoing support and any clinical curriculum or validation. |
| Quote information | Application and API stack, required task/feedback, OS/PC/GPU/network, display/HMD, mounting/site power, handover needs, destination and required date. |
Ordering and delivery
| Availability | Configuration quote required. Lead time and supplier production allocation confirmed before order. |
|---|---|
| Delivery | Haption hardware ships from France; multi-vendor fulfillment and any consolidation are agreed in the quote. |
| Commercial terms | Hardware, required integration, commissioning, optional PC, freight, tax and import treatment are itemized in the final quotation. |
| Product images | Individual component and manufacturer application reference images. Surrounding equipment or illustrated systems are included only when listed in the final BOM. |
Questions and configuration
What is the difference between Core Kit and Commissioned System?
Core Kit supplies Desktop 6D, its standard controller/power/control accessories and included API resources for your integration team. Commissioned System adds the scoped API/demo installation, device test, documentation and handover.
Is a workstation included?
No. Supply a suitable Windows/Linux PC, dedicated Ethernet interface and Cat6 cable, or request a separately priced workstation. The PC price is not included in the known hardware subtotal.
Do I need another API, TREX license or ERGO handle?
The Desktop 6D device API is included. TREX robot licensing and an extra site SDK are not automatic additions. ERGO is a TAO/TAO HF accessory and does not fit Desktop 6D.
Is my simulation application included?
The manufacturer demo is different from a completed customer application. Custom simulation content, engine integration and application code require a separate scope and quote.
Does it work directly with Isaac Sim, Unity or Unreal?
Haption lists native C/C++, ROS/ROS 2 and CHAI3D routes; partner integration is available for Unity/Unreal. A ready-made Isaac Sim or customer application integration is not assumed and must be scoped and tested.
Is this a medical training or clinical system?
No specific medical curriculum, clinical validation or regulatory approval is included. Any medical use requires an appropriate application-specific scope.
Can commissioning be remote?
Remote or onsite delivery is agreed in the quotation. Onsite travel, site preparation and continuing support are separate unless itemized.
What is confirmed before order?
Application requirements, API rights, accessories, PC suitability, lead time, freight, import treatment and commissioning acceptance scope.
Manufacturer resources
Features
- Six-axis desktop haptics—Render translation forces and rotational torque through the compact Desktop 6D interface.
- Included device API—Use the supplied Virtuose API with manufacturer-listed C/C++, ROS and ROS 2 integration routes.
- Start from a defined demo—Commissioned System installs and validates the manufacturer demo before the agreed handover.
- Scale the application scope—Use your own PC and application, or quote a workstation and custom simulation integration separately.
Technical Specifications
Everything you need to know about tracking, performance, connectivity, and deployment hardware.
Core Kit — reference bill of materials
- 1 × Haption Desktop 6D
- Six active feedback axes with its own analog finger pinch, handle button and separate three-button box.
- 1 × manufacturer controller/power set
- Standard external controller and power accessories for the quoted Desktop 6D configuration.
- 1 × included Virtuose API license
- Device API included with Desktop 6D; supported versions and deployment rights confirmed on quote.
- Manufacturer demo and driver resources
- Provided software resources; installation and validation are part of Commissioned System.
Package options
- Core Kit
- Listed reference hardware and applicable licenses for customer integration; required unpriced configuration items are itemized in the final quote.
- Commissioned System
- Core Kit plus the scoped services below. Commissioning is priced separately; PC and robot remain customer supplied or separately quoted.
- Commissioned service 1
- Review the Windows/Linux workstation, dedicated Ethernet interface, application requirements and mounting/power arrangement.
- Commissioned service 2
- Install the manufacturer device API, drivers and demonstration application on the agreed PC.
- Commissioned service 3
- Validate six-axis device feedback, finger-pinch signal and operator buttons using the agreed demo/test.
- Commissioned service 4
- Provide setup/configuration notes, operator orientation and a scoped C++/ROS 2 developer handover; custom application code is a separate deliverable.
Technical reference
- Feedback
- 6 active DoF plus passive analog finger pinch (0–100% signal).
- Translation / rotation workspace
- 500 × 230 × 380 mm; 257° × 87° × 242°.
- Peak / continuous force
- 10 N / 3 N at the center of the workspace.
- Peak / continuous torque
- 0.78 Nm / 0.21 Nm.
- Position / rotation resolution
- 0.0234 mm / 0.0023°.
- Mass and power
- Device 4 kg plus external controller 2.4 kg; less than 350 W; 100–240 VAC, 50/60 Hz.
- Device update / network
- 1,000 Hz manufacturer control update; Ethernet / UDP. This is not a guaranteed application or logging rate.
- Software
- Included Virtuose API; native C/C++, Windows/Linux, ROS/ROS 2 and CHAI3D routes listed by Haption. Partner/application integration may be required.
Customer requirements and exclusions
- Customer supplies
- Windows or Linux PC, suitable display, dedicated Ethernet port, RJ45 Cat6 cable, stable mounting surface and compatible mains power.
- Suggested PC starting point
- Supplier guidance suggests a dual- or quad-core PC with 16 GB RAM; final CPU/GPU, OS and interface requirements depend on the chosen application.
- Workstation procurement
- A configured PC can be quoted separately. No PC model or PC price is included in the known hardware subtotal.
- Optional XR display
- HMD/display selected only after application, SDK and graphics review; not included by default.
- Excluded unless itemized
- Custom simulation content, customer application development, HMD, workstation, special mounting, onsite travel, ongoing support and any clinical curriculum or validation.
- Quote information
- Application and API stack, required task/feedback, OS/PC/GPU/network, display/HMD, mounting/site power, handover needs, destination and required date.
Ordering and delivery
- Availability
- Configuration quote required. Lead time and supplier production allocation confirmed before order.
- Delivery
- Haption hardware ships from France; multi-vendor fulfillment and any consolidation are agreed in the quote.
- Commercial terms
- Hardware, required integration, commissioning, optional PC, freight, tax and import treatment are itemized in the final quotation.
- Product images
- Individual component and manufacturer application reference images. Surrounding equipment or illustrated systems are included only when listed in the final BOM.
Why Teams Choose Haptic Simulation Workbench
Choose the hardware kit for your engineering team or add scoped commissioning and handover.
Six-axis desktop haptics
Render translation forces and rotational torque through the compact Desktop 6D interface.
Included device API
Use the supplied Virtuose API with manufacturer-listed C/C++, ROS and ROS 2 integration routes.
Start from a defined demo
Commissioned System installs and validates the manufacturer demo before the agreed handover.
Scale the application scope
Use your own PC and application, or quote a workstation and custom simulation integration separately.
🛠
