Product details
Overview

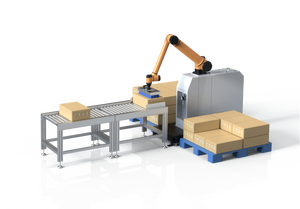

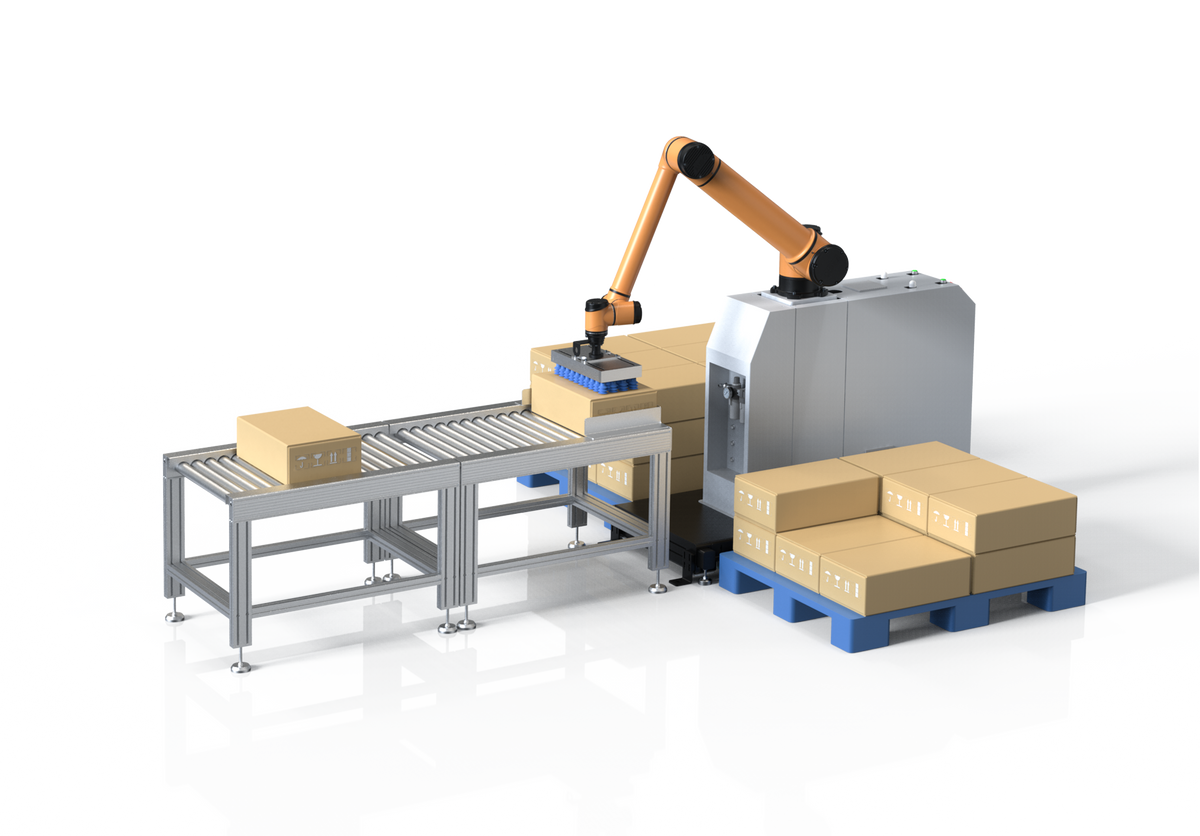

A bolt-down palletizing cell on a single-phase 220 V supply, available with the iS20, iS20L, iS25 or iS35. Pattern generation is one click and a new project takes under a minute, so a product changeover does not require programming or an integrator visit.
Proven in food and beverage, pharmaceuticals, home appliances and household chemicals. Integrates with existing lines over ModBus-RTU/TCP, TCP/IP or EtherNet/IP. Ten levels of collision detection, and the arm locks its joints on power loss so product is not dropped.
Workstation specifications
| iS20 | iS20L | iS25 | iS35 | |
|---|---|---|---|---|
| Payload | 20 kg / 44.1 lb | 20 kg / 44.1 lb | 25 kg / 55.1 lb | 35 kg / 77.2 lb |
| Robot reach | 1,647 mm / 64.8 in | 2,000 mm / 78.7 in | 1,700 mm / 66.9 in | 2,100 mm / 82.7 in |
| Repeatability | ±0.05 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Cycle time | up to 9 boxes/min | up to 9 boxes/min | up to 9 boxes/min | up to 8.5 boxes/min |
| Workstation size | 840 × 1,784 mm | 840 × 1,784 mm | 840 × 1,784 mm | 900 × 1,784 mm |
| Max pallet | 1,200 × 1,200 mm / 48 × 48 in | 1,200 × 1,200 mm / 48 × 48 in | 1,200 × 1,200 mm / 48 × 48 in | 1,300 × 1,300 mm / 51 × 51 in |
| Palletizing height | 2,300 mm / 90.6 in | 2,300 mm / 90.6 in | 2,300 mm / 90.6 in | up to 2,800 mm / 110 in |
| Lift stroke | 750 mm / 29.5 in | 750 mm / 29.5 in | 750 mm / 29.5 in | up to 500 mm / 19.7 in |
| Total weight | 490 kg / 1,080 lb | 490 kg / 1,080 lb | 490 kg / 1,080 lb | 600 kg / 1,323 lb |
| Rated voltage | Single-phase 220 V | Single-phase 220 V | Single-phase 220 V | Single-phase 220 V |
| Working temperature | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50°C / 32–122°F |
| External sensor | NPN | NPN | NPN | NPN |
Cycle times are based on single-pick operation and vary by application. Multi-pick configurations are available as custom builds.
Site requirements
Single-phase 220 V at the install point, dock or liftgate delivery, and floor space of 840 × 1,784 mm (900 × 1,784 mm for the iS35). Cell weight is 1,080 lb, or 1,323 lb for the iS35 configuration. Talk to us before ordering so we can confirm freight class and power.
End-of-arm tooling
Rubber and foam suction cups, split suction cups in four sizes, and a clamp-type gripper are available. See AUBO Palletizing End-of-Arm Tooling.
Quote-only. Contact Knoxlabs for configuration, freight and lead time.
