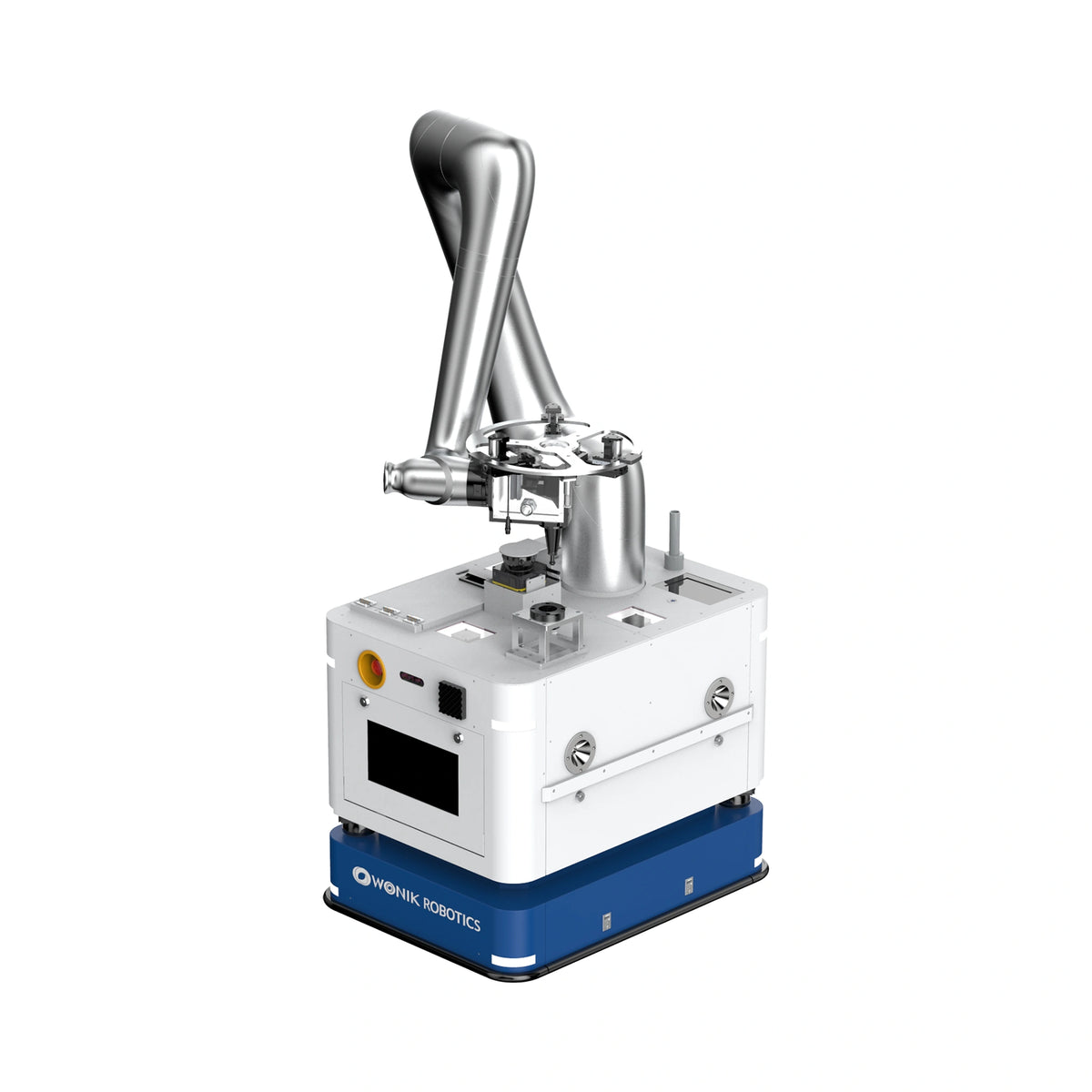

Wonik Robotics WR-AMMR20-CT
WR-AMMR20-CT combines a SLAM-based mecanum mobile platform, a Neuromeka Nuri20 collaborative arm, and a published quartz-gripper configuration for mobile precision handling.
From$ 0.10
Pricing on request
Project quote required; configuration, supplier pricing and logistics are confirmed before order.
Model: WR-AMMR20-CT
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:Pricing on request
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Quote-only: supplier purchase cost and public MSRP have not been supplied.
- Confirm configuration, delivery scope, commissioning, freight, import costs and warranty before ordering.
- USA project inquiries; a site and integration assessment may be required.
Product details
Overview
WR-AMMR20-CT combines a SLAM-based mecanum mobile platform, a Neuromeka Nuri20 collaborative arm, and a published quartz-gripper configuration for mobile precision handling.
Built for industrial automation
- Mobile manipulation — A SLAM-navigated Mecanum platform positions a Neuromeka Nuri20 arm for workstation and material-handling workflows.
- Arm capability — Published arm payload: 20 kg. Mobile-platform payload and arm lifting capacity are separate limits.
- End-effector selection — Quartz gripper. Confirm the quoted hand/gripper, mounting and integration scope; optional parts are not automatically included.
- Facility integration — Plan routes, docking, charging and safety zones around the actual site. Wi-Fi is standard in the published configuration; LTE/5G is optional.

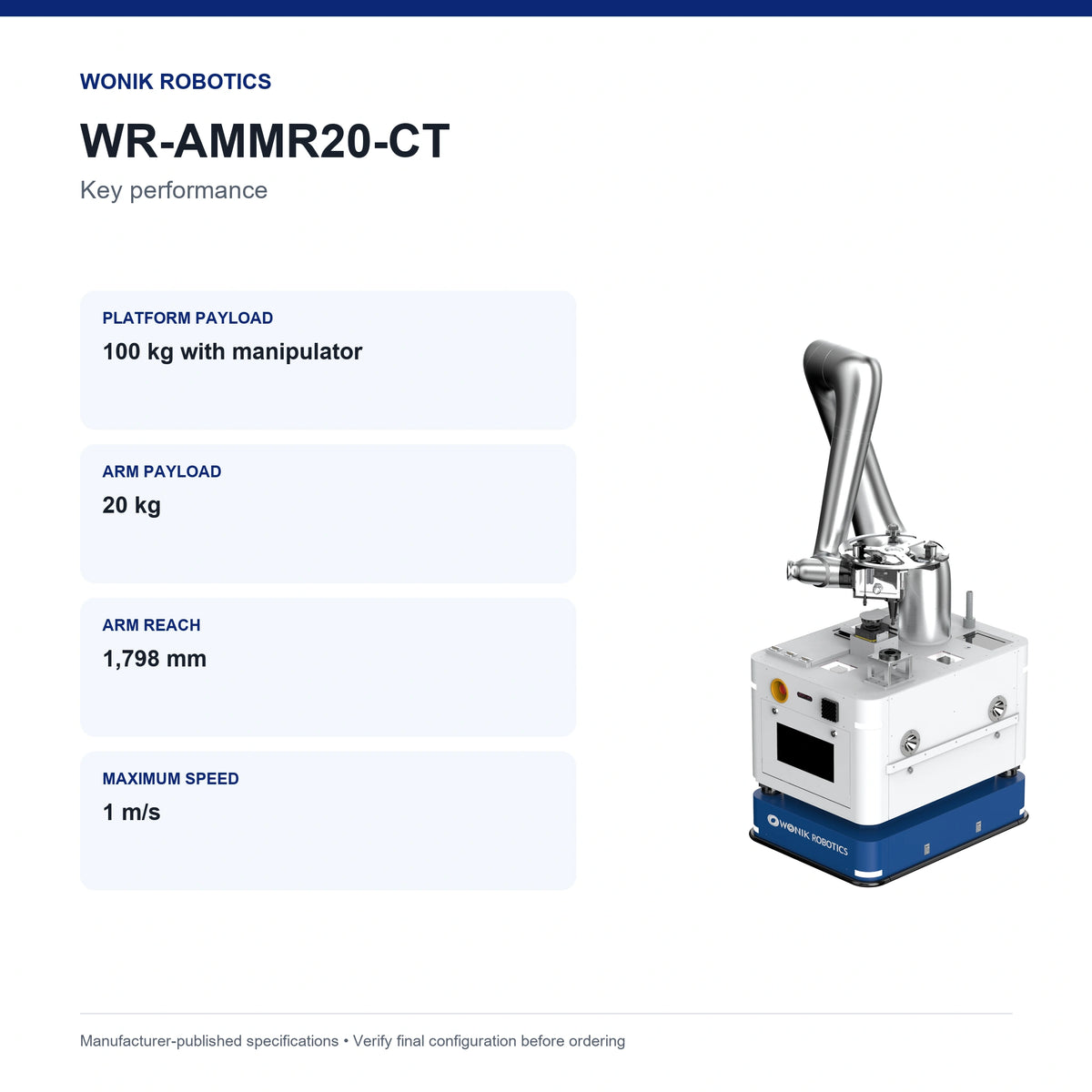

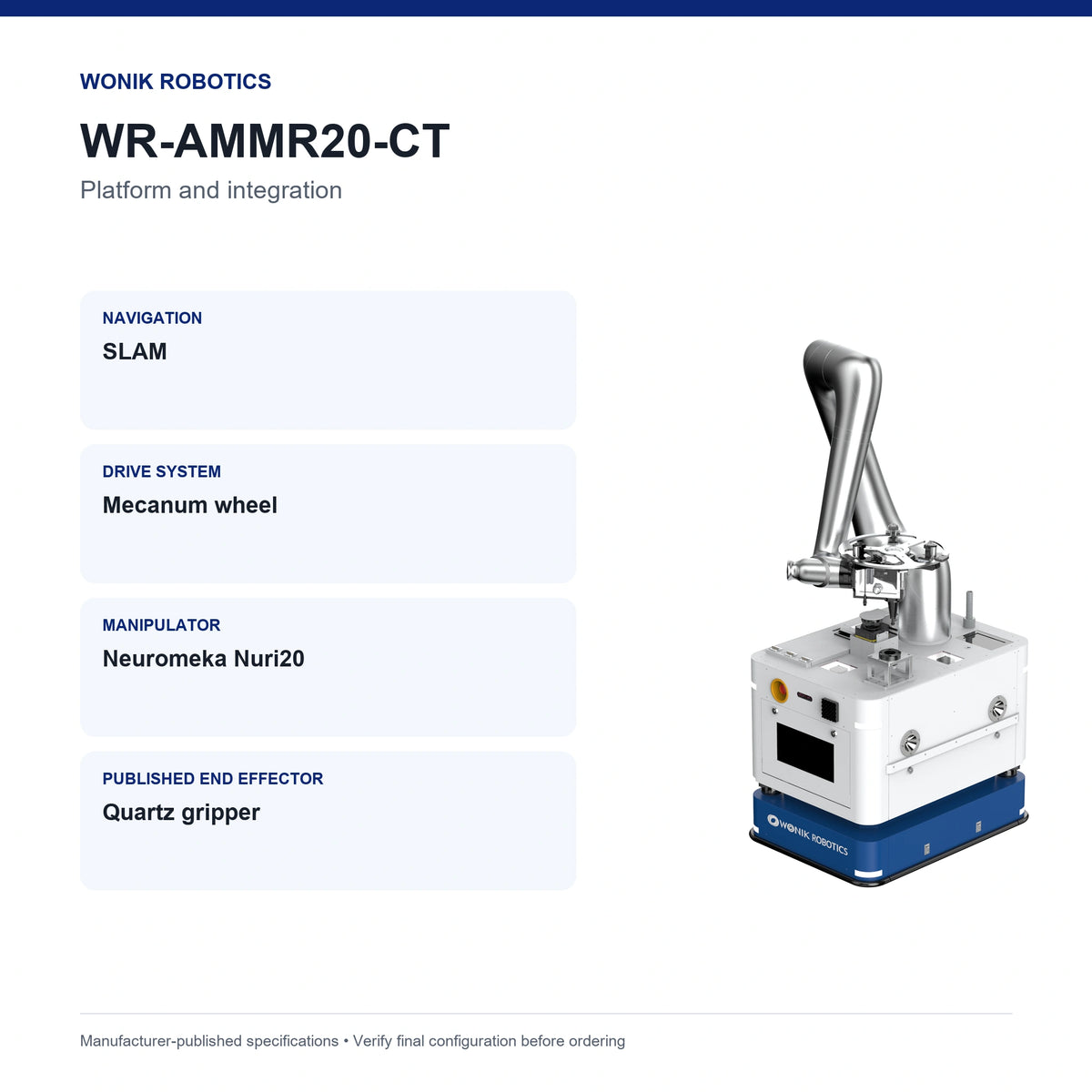

Technical highlights
- Navigation: SLAM
- Mobile Platform Dimensions: 700 x 950 x 810 mm
- Mobile Platform Payload: 100 kg with manipulator
- Driving System: Mecanum wheel
- Manipulator: Neuromeka Nuri20
- Manipulator Payload: 20 kg
- Manipulator Reach: 1,798 mm
- Published End Effector: Quartz gripper
What's included and integration
- Delivery scope: WR-AMMR20-CT configuration is specified in the written project quote; published specifications do not establish package contents.
- Optional components: Quartz gripper. Confirm whether the quoted end effector and mounting parts are included.
Setup and deployment
- Review floor conditions, load geometry, workstation interfaces, network coverage and safety zones with an integrator.
- Confirm delivered robot/station configuration, charging hardware and all optional accessories in the written quote.
- Commission docking, charging or battery-exchange behavior and operator safety before production operation.
Ordering and support
- Quote-only: supplier purchase cost and public MSRP have not been supplied.
- Confirm configuration, delivery scope, commissioning, freight, import costs and warranty before ordering.
- USA project inquiries; a site and integration assessment may be required.
Full technical specifications, setup guidance and FAQs are provided below. Manufacturer product information.
Features
- Navigation: SLAM
- Mobile Platform Dimensions: 700 x 950 x 810 mm
- Mobile Platform Payload: 100 kg with manipulator
- Driving System: Mecanum wheel
- Manipulator: Neuromeka Nuri20
- Manipulator Payload: 20 kg
- Manipulator Reach: 1,798 mm
- Published End Effector: Quartz gripper
Technical Specifications
Product specifications, requirements, and deployment details.
Technical specifications
- Navigation
- SLAM
- Mobile Platform Dimensions
- 700 x 950 x 810 mm
- Mobile Platform Payload
- 100 kg with manipulator
- Driving System
- Mecanum wheel
- Manipulator
- Neuromeka Nuri20
- Manipulator Payload
- 20 kg
- Manipulator Reach
- 1,798 mm
- Published End Effector
- Quartz gripper
- Stop Accuracy
- +/-10 mm
- Docking Accuracy
- +/-1 mm
- Maximum Speed
- 1 m/s
- Average Speed
- About 0.5 m/s
- Battery
- Li-ion, DC 50 V / 50 Ah
- Charging Time
- About 1 to 1.5 hours
- Charging Method
- Automatic or manual
- Network
- Wi-Fi 2.4 GHz and 5 GHz with external patch antenna; LTE/5G optional
What's included and ordering scope
- Delivery scope
- WR-AMMR20-CT configuration is specified in the written project quote; published specifications do not establish package contents.
- Optional components
- Quartz gripper. Confirm whether the quoted end effector and mounting parts are included.
Who it is for
- Details
Industrial automation teams, facility operators, robotics integrators and procurement teams planning a commissioned deployment.
Mechanical
- Navigation
- SLAM
- Mobile platform dimensions
- 700 x 950 x 810 mm
- Mobile platform payload
- 100 kg with manipulator
- Driving system
- Mecanum wheel
- Manipulator
- Neuromeka Nuri20
- Manipulator payload
- 20 kg
- Manipulator reach
- 1,798 mm
- Published end effector
- Quartz gripper
- Stop accuracy
- +/-10 mm
- Docking accuracy
- +/-1 mm
- Maximum speed
- 1 m/s
- Average speed
- About 0.5 m/s
- Battery
- Li-ion, DC 50 V / 50 Ah
- Charging time
- About 1 to 1.5 hours
- Charging method
- Automatic or manual
- Network
- Wi-Fi 2.4 GHz and 5 GHz with external patch antenna; LTE/5G optional
Power & battery
- Battery
- Li-ion, DC 50 V / 50 Ah
- Charging time
- About 1 to 1.5 hours
- Charging method
- Automatic or manual
Software & interfaces
- Communication interfaces
- Wi-Fi 2.4 GHz and 5 GHz with external patch antenna; LTE/5G optional
Integration requirements
- Details
Review floor conditions, load geometry, workstation interfaces, network coverage and safety zones with an integrator.
Confirm delivered robot/station configuration, charging hardware and all optional accessories in the written quote.
Commission docking, charging or battery-exchange behavior and operator safety before production operation.
Resources & documents
- Details
Manufacturer product page: https://wonikrobotics.com/en/sub/product/view.php?s_cate=2011&a_idx=3&idx=29
Specifications reviewed October 12, 2026; confirm configuration and revisions before purchase.
Configuration notes
- Details
Quote-only: supplier purchase cost and public MSRP have not been supplied.
Confirm configuration, delivery scope, commissioning, freight, import costs and warranty before ordering.
USA project inquiries; a site and integration assessment may be required.
Related robotics products
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
Is this a complete, ready-to-use system?
The final hardware, accessories, software and commissioning scope are defined in a project quote. Do not assume optional components are included.
What should we confirm before selecting this model?
Confirm loads, floor conditions, workstation or robot interfaces, electrical supply and safety/commissioning requirements for WR-AMMR20-CT.
What is included?
Delivery scope: WR-AMMR20-CT configuration is specified in the written project quote; published specifications do not establish package contents. Optional components: Quartz gripper. Confirm whether the quoted end effector and mounting parts are included.
What about shipping and import costs?
Pricing, EXW delivery scope, freight, brokerage and import-duty allowance require a project quote. No duty amount or supplier cost is invented for this item.
What warranty and support apply?
Warranty, installation, training and support terms are confirmed in the written project quote.
