Robotic Hand
Wonik Robotics Allegro Hand V6 V

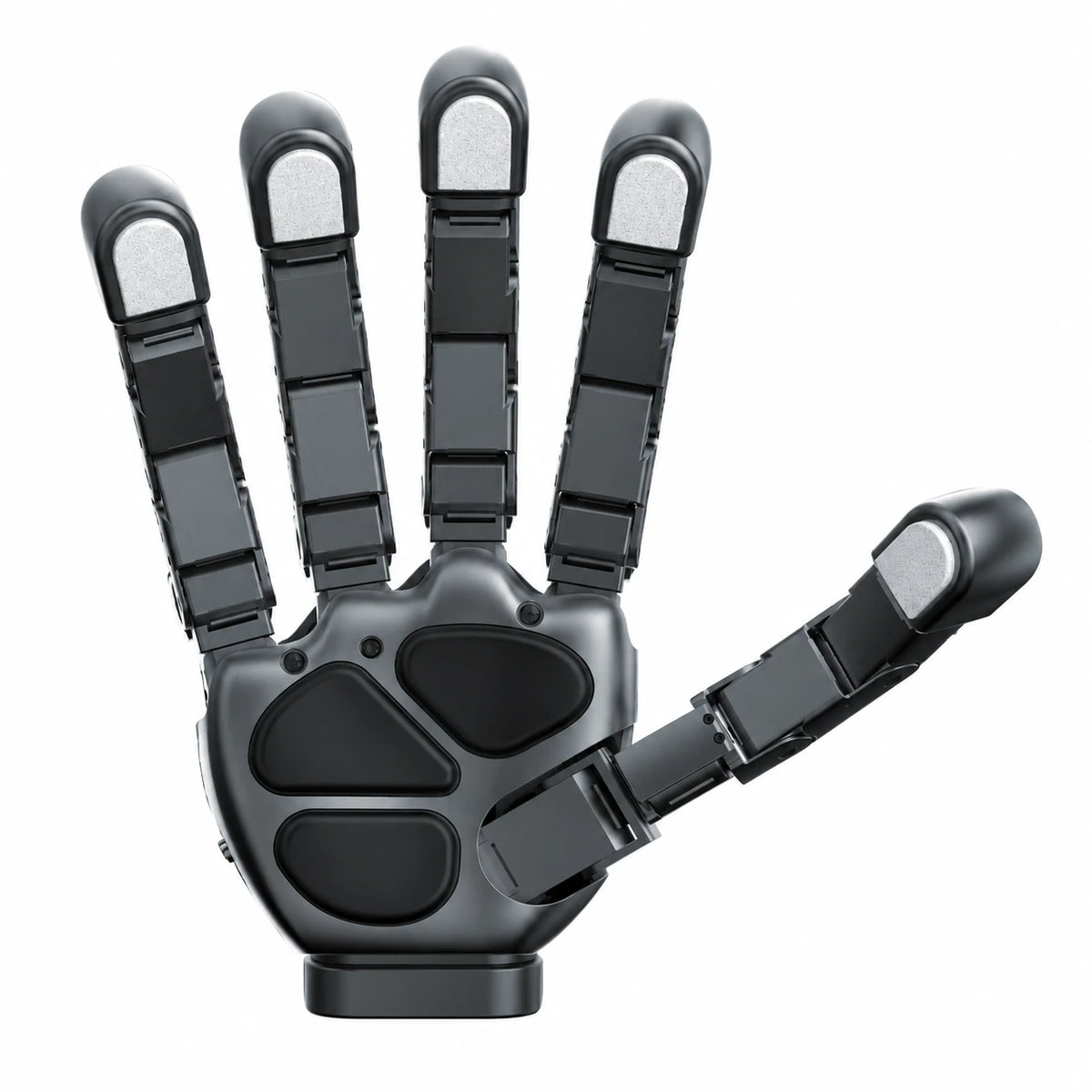

A five-finger robotic hand combining 20 active joints with DIGIT vision-based tactile sensing for contact-rich manipulation research.
Compatible with Linux · ROS 2
From$ 19,820.00
Price per hand, including provisional import allowance. Freight and brokerage separate. Confirm handedness and availability.
Your Configuration
Total
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
Ships within 15-30 days
- Unit pricing is per hand, not a pair. Confirm left/right configuration before ordering.
- USA distribution territory; contact Knoxlabs for delivery timing and installation scope.
- Manufacturer-to-Knoxlabs freight, broker fees and customer delivery are separate from the included provisional import allowance.
- Officially launched October 12, 2026; first shipments planned for late October or early November, subject to supplier confirmation.
- Supplier agreement provides 12-month warranty coverage from sale to the end user. Misuse, neglect and unauthorized changes are excluded; confirm claim and service procedures with Knoxlabs.
Product details
Overview
A five-finger robotic hand combining 20 active joints with DIGIT vision-based tactile sensing for contact-rich manipulation research.
Built for research and dexterous manipulation
- Dexterous manipulation — 5 (4 fingers and 1 thumb) fingers and 20 active (4 per finger) degrees of freedom provide a configurable platform for grasp planning and object-handling experiments.
- Vision-based touch — DIGIT fingertip images reveal local contact geometry; the palm provides pressure sensing. DIGIT 360 is not included.
- Control and integration — Hand control uses RS-485 and Ethernet. Confirm the mechanical mount, controller, power supply and software environment for your application.
- Research deployment — For robotics laboratories, university teaching and embodied-AI development. Payload figures describe manufacturer test conditions, not a guarantee for every grasp or installation.
Technical highlights
- Number Of Fingers: 5 (4 fingers and 1 thumb)
- Degrees Of Freedom: 20 active (4 per finger)
- Actuation: DC motor
- Gear Ratio: 288.35:1
- Stall Torque: 0.92 Nm
- Nominal Torque: 0.23 Nm
- Payload: Maximum 15 kg; application-dependent
- Weight: 1,150 g
What's included and integration
- Product: One Allegro Hand V6 V; confirm left/right configuration before ordering.
- Mounting adapter: ISO 9409-1 mounting adapters included, per supplier confirmation.
- Cables, power and accessories: LAN cable not included. Separate power supply required; confirm supply and other cable inclusion on the order.
Setup and deployment
- Confirm the hand model, left/right configuration, mount and ordered accessory scope with Knoxlabs before purchase.
- Provide the model-specific power requirement (24 V / 5 A / 120 W) and control connection (RS-485 and Ethernet).
- V6 mounting adapters follow ISO 9409-1 and are included per supplier confirmation. LAN cables are not included; use a separate power supply. Do not assume direct UR5e or Franka R3 integration.
- Connect the DIGIT sensor USB interface separately from the hand-control connection. Configure the Ubuntu/ROS2 environment and sensor acquisition before grasp experiments.
- Commission torque/current limits and emergency-stop behavior in a controlled environment; protect operators from pinch points.
Ordering and support
- Unit pricing is per hand, not a pair. Confirm left/right configuration before ordering.
- USA distribution territory; contact Knoxlabs for delivery timing and installation scope.
- Manufacturer-to-Knoxlabs freight, broker fees and customer delivery are separate from the included provisional import allowance.
- Officially launched October 12, 2026; first shipments planned for late October or early November, subject to supplier confirmation.
- Supplier agreement provides 12-month warranty coverage from sale to the end user. Misuse, neglect and unauthorized changes are excluded; confirm claim and service procedures with Knoxlabs.
Full technical specifications, setup guidance and FAQs are provided below. Manufacturer product information.
Features
- Number Of Fingers: 5 (4 fingers and 1 thumb)
- Degrees Of Freedom: 20 active (4 per finger)
- Actuation: DC motor
- Gear Ratio: 288.35:1
- Stall Torque: 0.92 Nm
- Nominal Torque: 0.23 Nm
- Payload: Maximum 15 kg; application-dependent
- Weight: 1,150 g
Technical Specifications
Product specifications, requirements, and deployment details.
Technical specifications
- Number Of Fingers
- 5 (4 fingers and 1 thumb)
- Degrees Of Freedom
- 20 active (4 per finger)
- Actuation
- DC motor
- Gear Ratio
- 288.35:1
- Stall Torque
- 0.92 Nm
- Nominal Torque
- 0.23 Nm
- Payload
- Maximum 15 kg; application-dependent
- Weight
- 1,150 g
- Joint Resolution
- 0.088 degrees
- Communication Interfaces
- RS-485 and Ethernet
- Communication Protocols
- Modbus RTU, Modbus TCP, custom RS-485
- Sensor Interface
- USB Type-C / USB 2.0; independent of hand-control interface
- Tactile Sensors
- GelSight DIGIT vision-based tactile sensors; not DIGIT 360
- Image Modes
- VGA 640 x 480 at 15/30 fps; QVGA 320 x 240 at 30/60 fps
- Sensor Output
- Color tactile images and contact geometry; individual sensor ID
- Palm Pressure Range
- 260–1,260 hPa (atmospheric pressure approximately 1,013.25 hPa)
- Sensor Temperature Range
- 0–60 °C
- Pressure Accuracy
- 1 hPa
- Power Requirement
- 24 V / 5 A / 120 W
- Software Platform
- Ubuntu 22.04 LTS or 24.04 LTS with ROS2
- Minimum Compute
- Intel Core i3-8109U or higher; 2 GB RAM; 2 GB storage; OpenGL 3.0 GPU with 64 MB video memory
What's included and ordering scope
- Product
- One Allegro Hand V6 V; confirm left/right configuration before ordering.
- Mounting adapter
- ISO 9409-1 mounting adapters included, per supplier confirmation.
- Cables, power and accessories
- LAN cable not included. Separate power supply required; confirm supply and other cable inclusion on the order.
Who it is for
- Details
Robotics researchers, university laboratories, manipulation and embodied-AI developers.
Mechanical
- Number of fingers
- 5 (4 fingers and 1 thumb)
- Degrees of freedom
- 20 active (4 per finger)
- Actuation
- DC motor
- Gear ratio
- 288.35:1
- Stall torque
- 0.92 Nm
- Nominal torque
- 0.23 Nm
- Payload
- Maximum 15 kg; application-dependent
- Weight
- 1,150 g
- Joint resolution
- 0.088 degrees
- Communication interfaces
- RS-485 and Ethernet
- Communication protocols
- Modbus RTU, Modbus TCP, custom RS-485
- Sensor interface
- USB Type-C / USB 2.0; independent of hand-control interface
- Tactile sensors
- GelSight DIGIT vision-based tactile sensors; not DIGIT 360
- Image modes
- VGA 640 x 480 at 15/30 fps; QVGA 320 x 240 at 30/60 fps
- Sensor output
- Color tactile images and contact geometry; individual sensor ID
- Palm pressure range
- 260–1,260 hPa (atmospheric pressure approximately 1,013.25 hPa)
- Sensor temperature range
- 0–60 °C
- Pressure accuracy
- 1 hPa
- Power requirement
- 24 V / 5 A / 120 W
- Software platform
- Ubuntu 22.04 LTS or 24.04 LTS with ROS2
- Minimum compute
- Intel Core i3-8109U or higher; 2 GB RAM; 2 GB storage; OpenGL 3.0 GPU with 64 MB video memory
Software & interfaces
- Operating systems
- Ubuntu 22.04 LTS, Ubuntu 24.04 LTS
- Middleware & frameworks
- ROS2
- Communication interfaces
- RS-485, Ethernet
Integration requirements
- Details
Confirm the hand model, left/right configuration, mount and ordered accessory scope with Knoxlabs before purchase.
Provide the model-specific power requirement (24 V / 5 A / 120 W) and control connection (RS-485 and Ethernet).
V6 mounting adapters follow ISO 9409-1 and are included per supplier confirmation. LAN cables are not included; use a separate power supply. Do not assume direct UR5e or Franka R3 integration.
Connect the DIGIT sensor USB interface separately from the hand-control connection. Configure the Ubuntu/ROS2 environment and sensor acquisition before grasp experiments.
Commission torque/current limits and emergency-stop behavior in a controlled environment; protect operators from pinch points.
Resources & documents
- Details
Manufacturer product page: https://www.allegrohand.com/sub/product/p.php?idx=26
Specifications reviewed October 12, 2026; confirm configuration and revisions before purchase.
Configuration notes
- Details
Unit pricing is per hand, not a pair. Confirm left/right configuration before ordering.
USA distribution territory; contact Knoxlabs for delivery timing and installation scope.
Manufacturer-to-Knoxlabs freight, broker fees and customer delivery are separate from the included provisional import allowance.
Officially launched October 12, 2026; first shipments planned for late October or early November, subject to supplier confirmation.
Supplier agreement provides 12-month warranty coverage from sale to the end user. Misuse, neglect and unauthorized changes are excluded; confirm claim and service procedures with Knoxlabs.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
Is the price for one hand or a pair?
The listed unit price is for one hand. Confirm the left/right configuration and mounting requirements with Knoxlabs before placing an order.
What power and control connection are required?
24 V / 5 A / 120 W; hand control uses RS-485 and Ethernet. DIGIT tactile acquisition also needs its independent USB Type-C / USB 2.0 connection.
What is included?
Product: One Allegro Hand V6 V; confirm left/right configuration before ordering. Mounting adapter: ISO 9409-1 mounting adapters included, per supplier confirmation. Cables, power and accessories: LAN cable not included. Separate power supply required; confirm supply and other cable inclusion on the order.
What about shipping and import costs?
The public price includes a provisional import allowance included in the displayed total. This is a budgeting allowance, not a confirmed customs rate. EXW supplier terms exclude freight and duties; inbound freight, brokerage and customer delivery are quoted separately.
What warranty and support apply?
Supplier agreement provides 12-month warranty coverage from sale to the end user. Misuse, neglect and unauthorized changes are excluded; confirm claim and service procedures with Knoxlabs.
