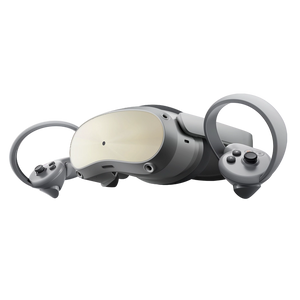

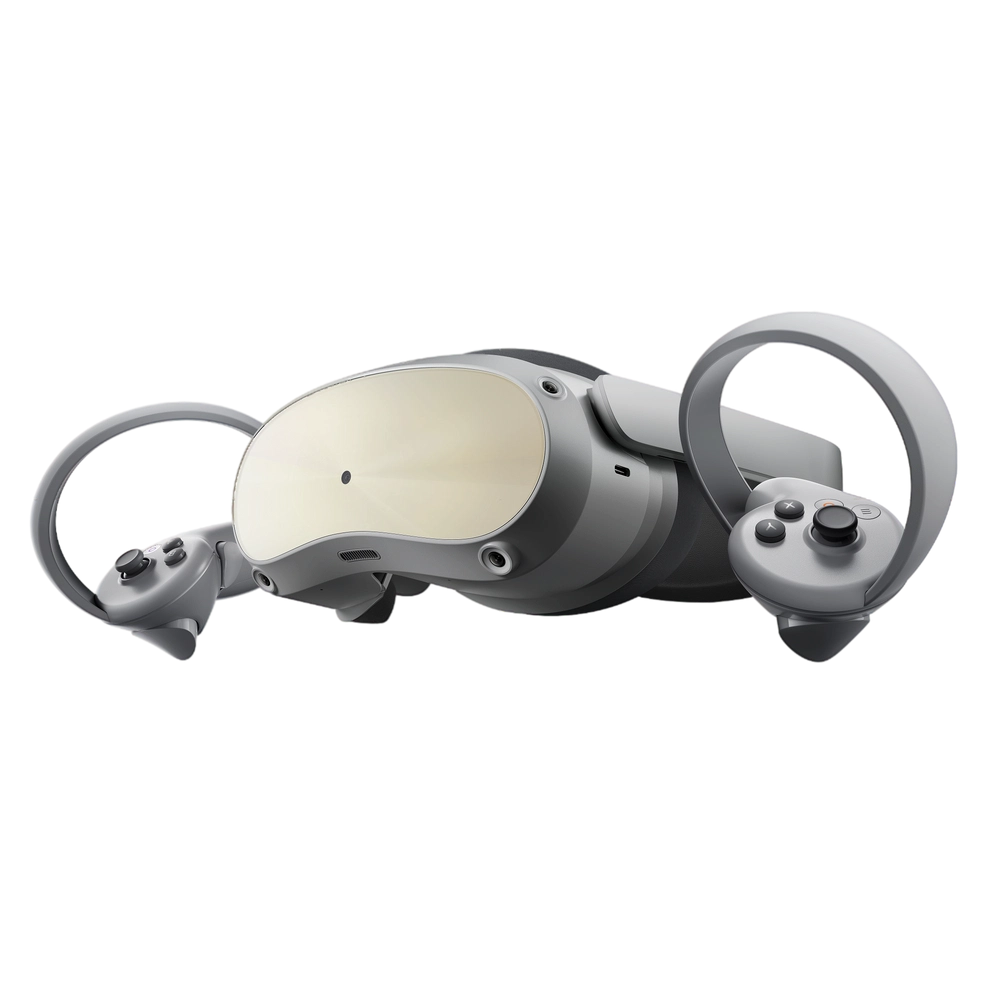

PICO 4 Enterprise

Flexible Interactions
Immersive Experience

PICO 4E provides clear, flexible and immersive interactions to enhance the XR business experience.

Eye Tracking
Eye tracking decodes eye movements to produce insights that can be used in a wide range of applications or as an additional input modality.

Face Tracking
Face Tracking lets your avatar reflect your real-time facial expressions more naturally—truly bringing your avatar to life.

Video Seethrough
With the front RGB camera, you can view your surroundings clearly and in full color without taking off the headset, or unlock mixed reality experiences in your VR apps as a developer.

Controllers
The HyperSense controllers are equipped with built-in broadband linear motors and create responsive haptics that engage your tactile senses for a more realistic VR experience.

Dual Stereo Speakers
3D Spatial Effects

6DoF Tracking
PICO 4E uses multiple cameras positioned around the HMD to provide inside-out 6DoF tracking, and enables you to move freely and organically in 360°.

Redefining VR Quality

PICO 4E allows you to enjoy silky smooth VR interactions at high resolution with the HD display and high refresh rate.

Qualcomm Snapdragon XR2
Powered by the Snapdragon™ XR2 chipset, PICO 4E provides an ultra-smooth VR experience with 256 GB storage and 8 GB DDR5 RAM.

Field of View 105° FOV
Brace yourself for a super wide field of view and get immersed in the stunning visuals.

Battery Life
5300 mAh (2 Hours +)

1200 PPI 4K+ Display
Equipped with a 4K+ display, PICO 4E offers a max resolution of 4320 × 2160 (1200 PPI) and a 90Hz refresh rate, providing ultra-clear, immersive, and life-like XR experience.

Pancake Lenses Thinner & Lighter

The pancake lenses give PICO 4E a slim, light-weight design. The headset weighs only 300g without the head straps.

PU Face Foam
The detachable PU face cushion allows you to easily clean the PICO 4E headset after each use.

Thin & Light Design
Ergonomically designed for long-lasting comfort, PICO 4E's battery is mounted on the back of the headset to balance the weight, and the flexible side straps provide solid support for your head.

Dimensions and Weight
Dimensions: 255–310mm (length) × 195mm (width) × 106mm (height)
Product weight: 591g (300g without straps)

Computing Platform
CPU: Qualcomm XR2, Kryo 585, 8 cores, 64-bit, 2.84 GHz, 7nm
GPU: Adreno 650, 587 MHz
RAM: 8 GB LPDDR5, 6400 MHz
ROM: 256 GB, UFS3.1
Wi-Fi: Wi-Fi 6，2×2 MIMO，802.11 a/b/g/n/ac/ax，2.4G/5G
BT: BT5.1
Android: Android 10
SDK: PICO SDK

Display
Display: 2.56'' ×2
Resolution: 4320 × 2160 (2160 × 2160 per eye), 1200 PPI
Refresh rate: 72Hz/90Hz
Brightness: Stepless adjustment

Optics
FOV: 105°
Lenses: Pancake, PMMA
Eye protection: TÜV Low Blue Light-certified (available in "Settings")
IPD adjustment: Software and auto interpupillary distance adjustment, 62mm–72mm

Cameras
Fisheye Monochrome Camera (×4): 640 × 480 @60Hz, H157°/V116°
RGB Camera (×1): IMX 471, 16MP fixed focus, H130°/V115°
Resolution: 16MP 4656 × 3496 @30Hz, 4MP 2328 × 1748 @60Hz (Seethrough)
Eye Tracking Camera (×2): Infrared VGA, OV6211, 400 × 400 @60Hz/90Hz, H70°/V70°
Face Tracking Camera (×1): Infrared VGA, OV6211, 400 × 400 @60Hz/90Hz, H70°/V70°

Design and Ergonomics
Straps: Flexible, adjustable side straps and a removable top strap
Face cushion: Removable PU foam pad
Fogging solution: A quiet built-in cooling fan to improve circulation and reduce fogging
Ergonomics: Counter-balanced design with rear-mounted battery

Interaction
Headset: Inside-out 6DoF tracking, HD seethrough and multi-room guardian system
Controllers: 6DoF haptic controllers ×2
Hand Tracking: 26DoF tracking and supports 4 gestures
Buttons: Power / Volume Up / Volume Down

Battery
Capacity: 5300 mAh
Charging: Qualcomm QC 3.0, USB PD 3.0

Ports
Speaker: Stereo speakers for 360° sound with 3D spatial effects. Lowest frequency: 200Hz.
Microphone: Dual microphone with up to 30dB noise reduction and 50dB echo cancellation.
USB-C 3.0 port:
Supports USB 2.0 (cable comes with the headset) and USB 3.0 (buy cable separately).
Supports 5V/1A OTG charging.
Supports USB 3.0 OTG adapter (buy cable separately).
LED indicator: 3 colors for "power on", "power off", and "charging" repectively.

Controller
Tracking: 6DoF tracking with 20 infrared sensors
Motor: Built-in broadband motors (50–500Hz, F0 = 65Hz), 2.5G vibration amplitude
Bluetooth: 5.1
Buttons: Joystick, Trigger, Menu, (Screen) Capture, Home, X/Y (left controller), A/B (right controller)
Battery: 1.5V AA alkaline battery ×2 (for each controller)
