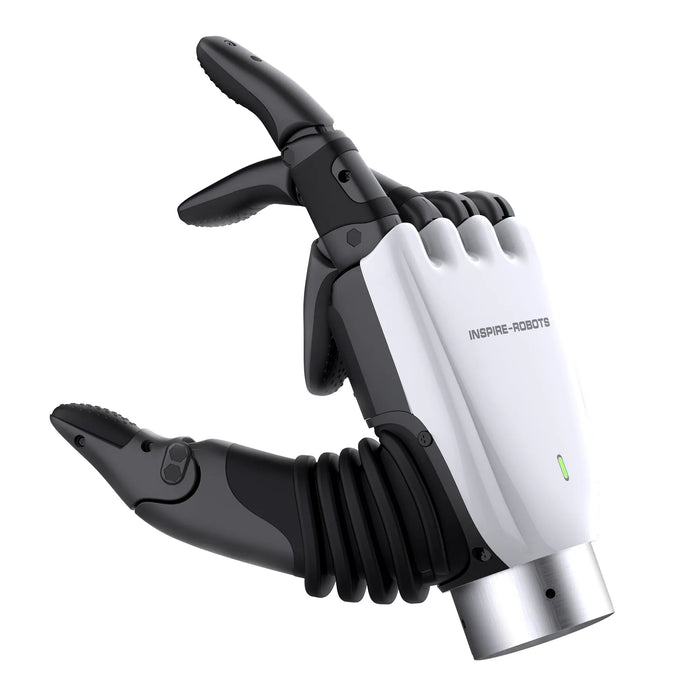

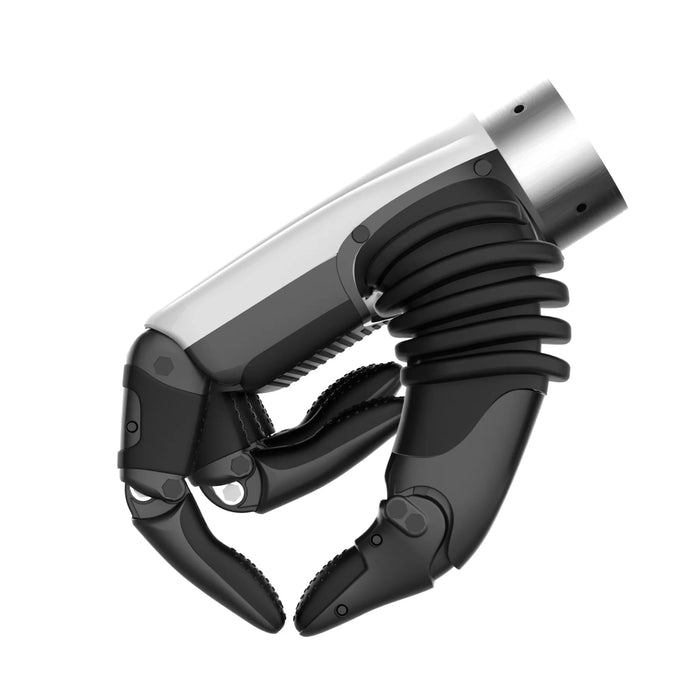

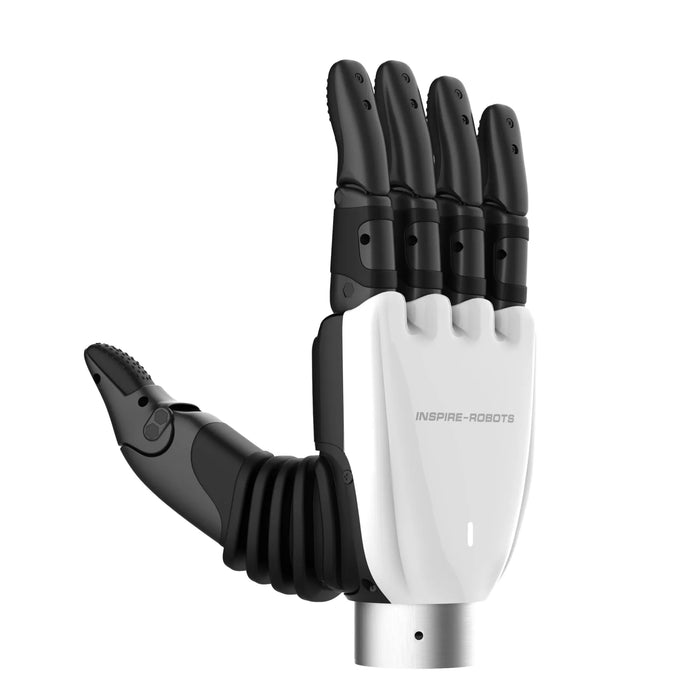

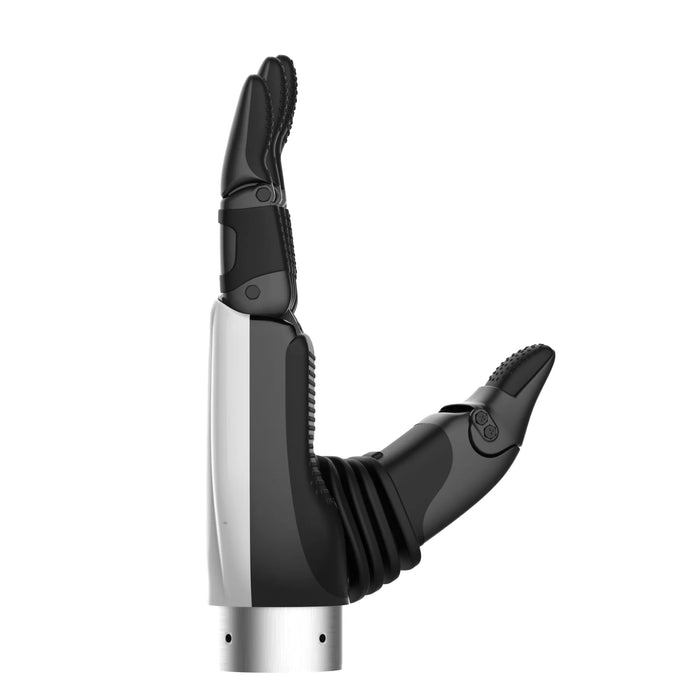

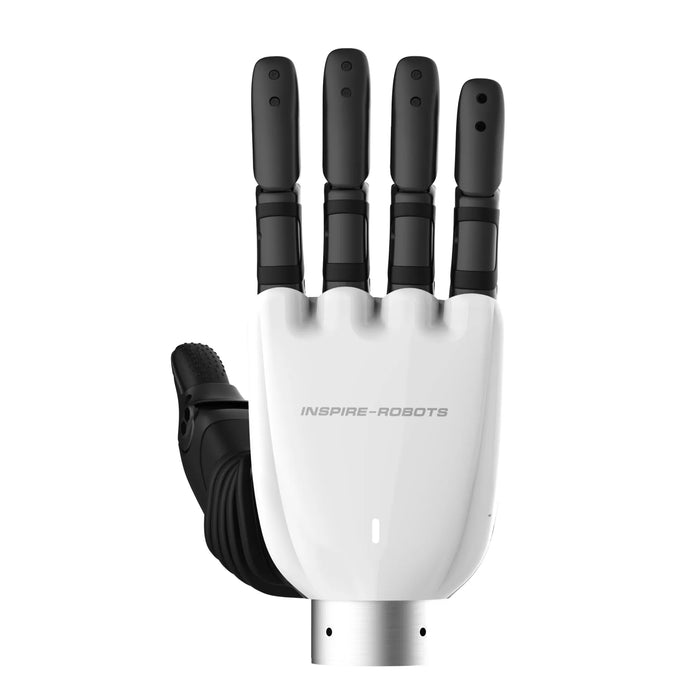

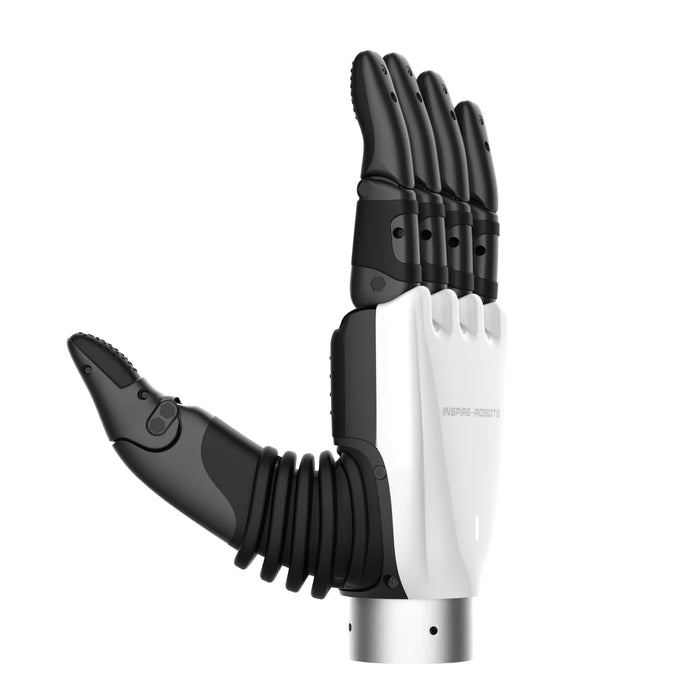

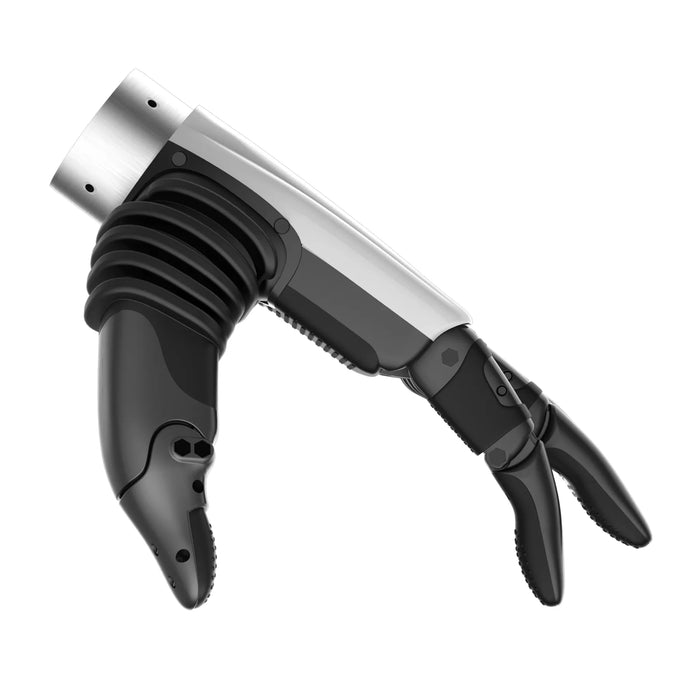

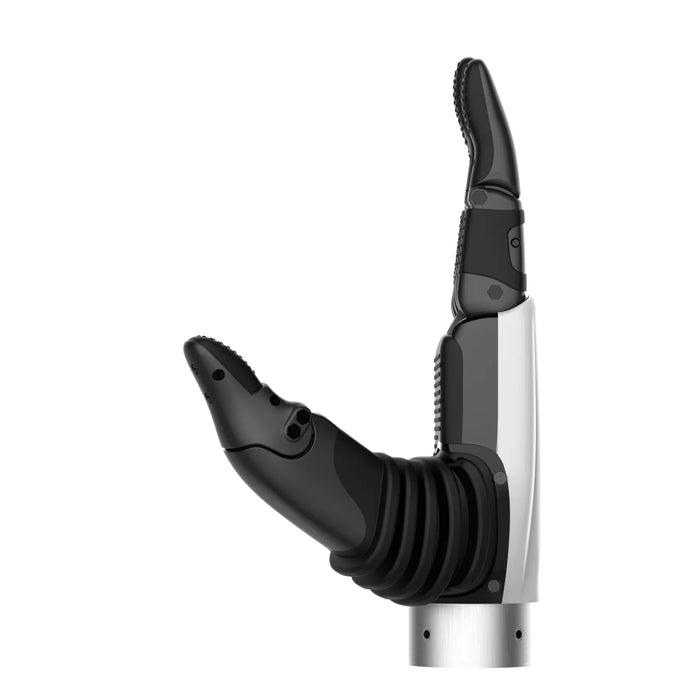

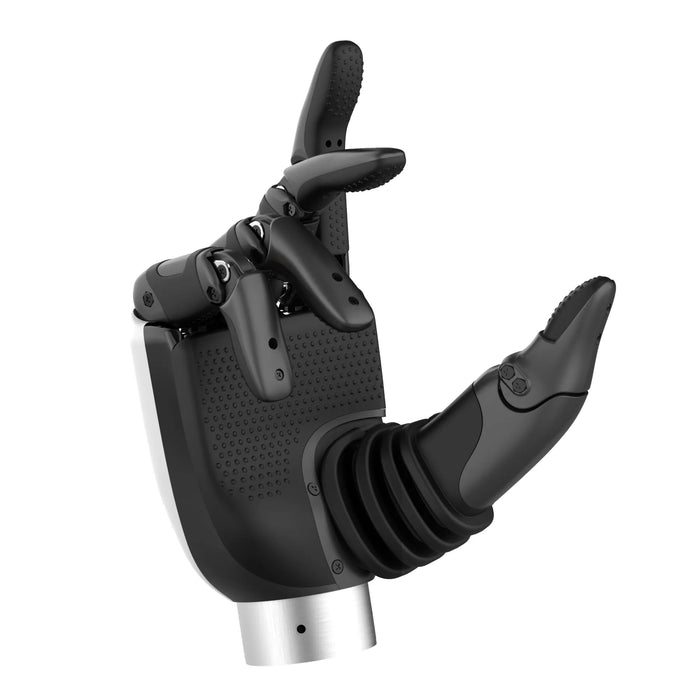

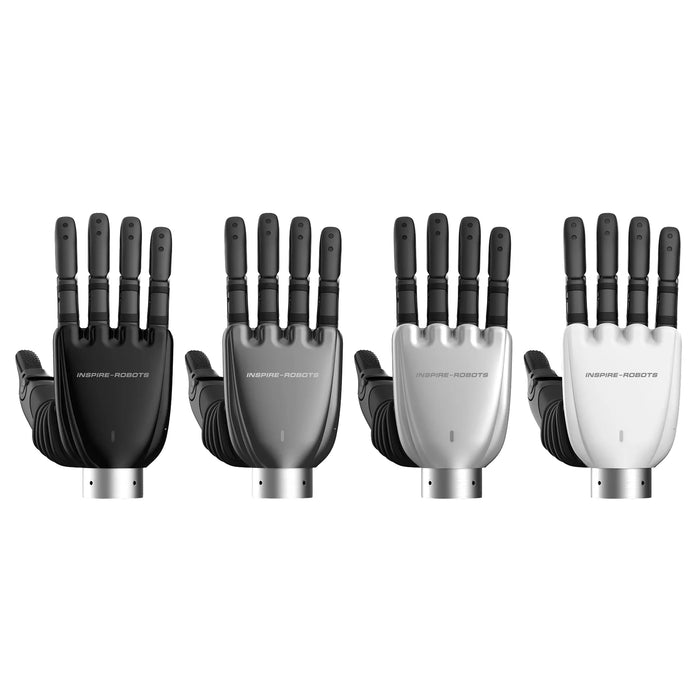

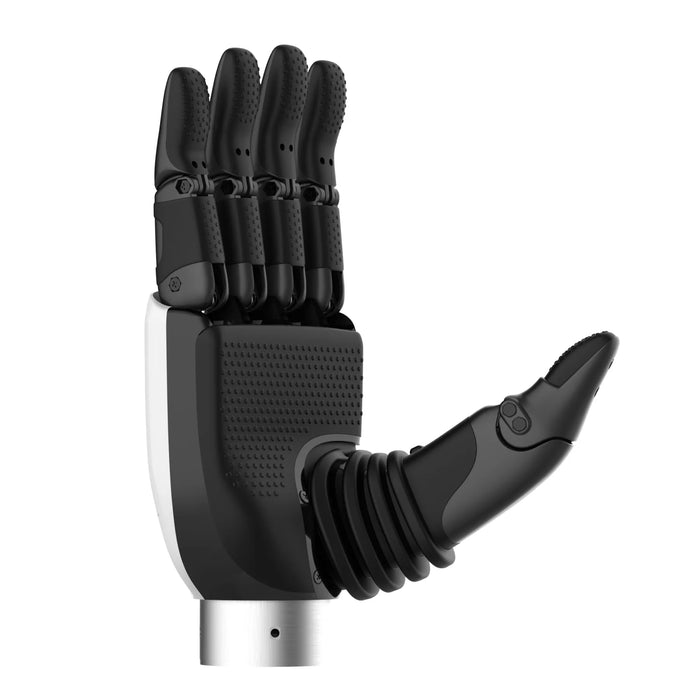

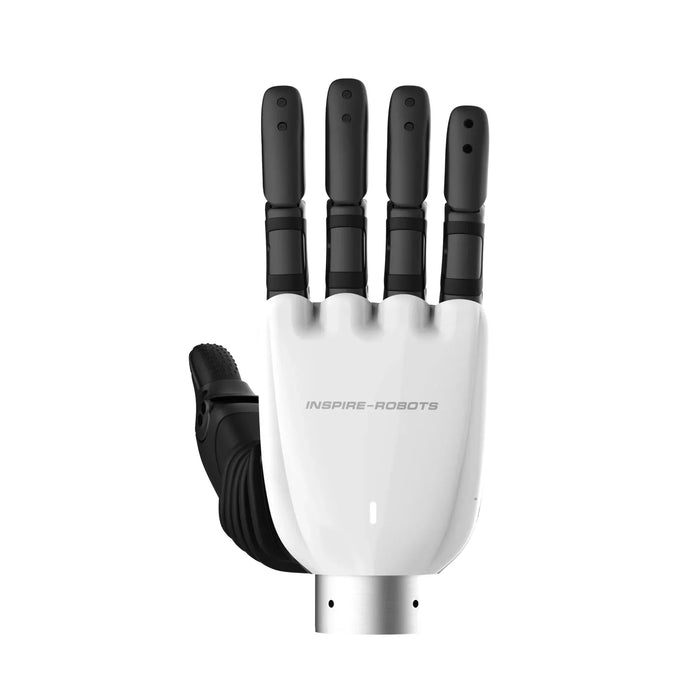

Inspire Robots RH56H1 Dexterous Hand

Original price $ 4,500.00 - Original price $ 4,500.00
Original price
$ 4,500.00
$ 4,500.00 - $ 4,500.00
Current price $ 4,500.00
Hand: Left Hand
Interface: RS485 + CAN FD
Request a quote
Overview

The RH56H1 — taglined Ultra Compact, Ultimate Power — is Inspire Robots' most compact dexterous hand and the most densely instrumented platform in the lineup. At 159.70 × 75.18mm and 470g, it is the smallest and lightest hand Inspire Robots produces, yet it delivers flagship-tier performance: 15N thumb fingertip strength, 8 kg passive payload per finger, and 1 kHz real-time communication.

Where the H1 stands apart from every other RH56 model is tactile coverage. 170 fingertip tactile sensors (34 per finger) and 90 palm tactile sensors give it 260 total sensing points — the richest haptic awareness in the Inspire Robots lineup by a wide margin. Its all-metal structure provides exceptional rigidity, and advanced software algorithms support multiple simultaneous intelligent control modes. Available in two interface configurations: RS485+CAN FD or EtherCAT+RS485+CAN FD.

Key Features
  • 159.70 × 75.18mm form factor — smallest and most compact hand in the Inspire Robots lineup
  • 470g — lightest dexterous hand in the RH56 family; minimal impact on robot arm payload budget
  • 170 fingertip tactile sensors — 34 per finger; highest per-finger tactile density in the lineup

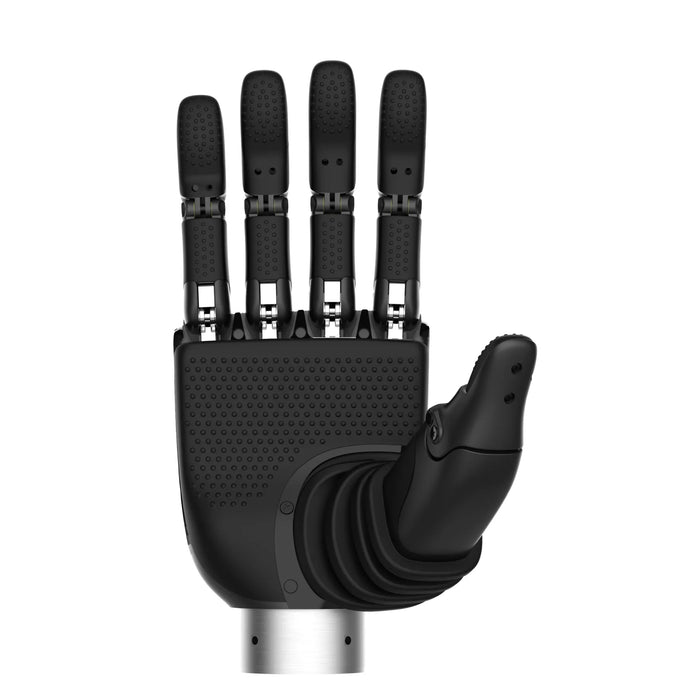

  • 90 palm tactile sensors — full palm surface coverage for localized contact detection
  • 260 total tactile sensing points — richest haptic awareness of any Inspire Robots hand
  • 1 kHz real-time communication — millisecond-level response across all 6 DOF
  • ≥15N thumb / ≥10N finger grip force — flagship-tier grip in a compact body

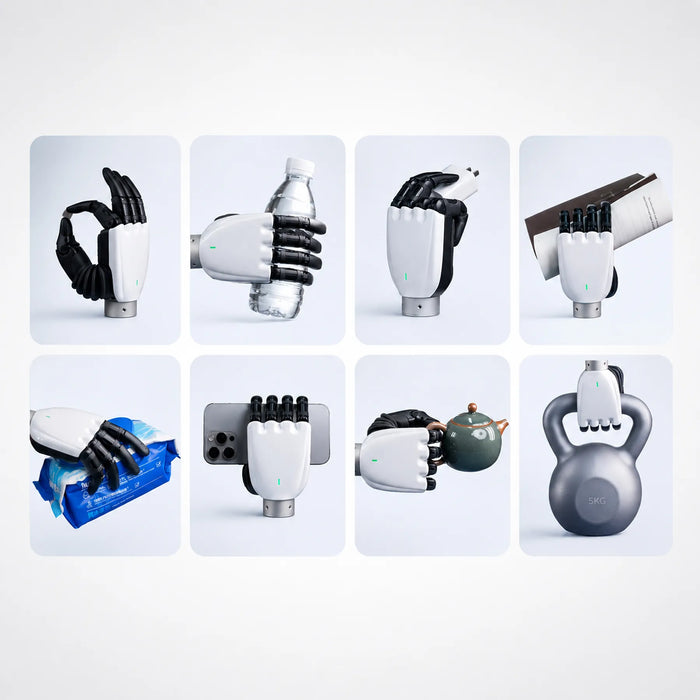

  • 8 kg passive payload per finger — robust and stable heavy-duty grasping capability
  • All-metal structure — exceptional rigidity matching larger, heavier hands in the lineup
  • Multiple intelligent control modes — force, position, and impedance control running simultaneously
  • Triple protocol support — RS485, CAN FD, and EtherCAT (E6 variants) on a single unit
  • Left and right hand configurations — available as matched pairs for bimanual setups
Specifications
Degrees of Freedom 6
Number of Joints 11
Weight 470g ±10g
Dimensions (H × W) 159.70 × 75.18mm
Control Interface (42 variants) RS485 + CAN FD
Control Interface (E6 variants) EtherCAT + RS485 + CAN FD
Operating Voltage 24V–48V
Quiescent Current 160mA ±20mA
Peak Current 5A @ 24V
Communication Frequency 1 kHz
Repeatability ±0.2mm
Thumb Fingertip Strength ≥15N
Fingertip Strength ≥10N
Maximum Fingertip Pressure 8 kg passive load per finger
Thumb Lateral Rotation Range 75–165°
Hand Closing Time ≤0.8s
Fingertip Tactile Sensors 170 (34 per finger)
Palm Tactile Sensors 90
Total Tactile Sensing Points 260
Tactile Sensing Range 30N
Tactile Sensor Accuracy 5% FS
Wrist Mount Ø38mm, 4× M3-6H THRU evenly spaced
Body Construction All-metal structure
Use Cases
  • Space-constrained humanoid integration — 470g and 160mm height fits platforms where larger hands cannot mount
  • High-fidelity tactile sensing research — 260 sensing points enable texture recognition, slip detection, and contact localization at a resolution no other RH56 model matches
  • Embodied AI and robot learning — dense fingertip and palm tactile data for training dexterous manipulation and in-hand manipulation policies
  • NVIDIA Isaac Lab / Isaac Sim pipelines — compact form factor with 1 kHz EtherCAT for sim-to-real transfer on smaller humanoid platforms
  • Prosthetics research — lightweight and compact with human-comparable grip force; suited for wearable and assistive device programs
  • VR teleoperation with haptic feedback — rich tactile data stream enables detailed closed-loop operator feedback
  • Bimanual dexterous manipulation — matched left/right pairs for two-handed tasks on compact humanoid platforms
Compatibility
  • Control: ROS / ROS 2, RS485, CAN FD, and EtherCAT systems (E6 variants require EtherCAT master)
  • AI / Simulation: NVIDIA Isaac Lab, NVIDIA Isaac Sim
  • Robotic arms: RS485, CAN FD, and EtherCAT-compatible robot arms and humanoid platforms
  • Teleoperation input: MANUS Prime 3 Metagloves, MANUS Quantum Metagloves
  • Power: 24V–48V
  • Wrist mount: Ø38mm flange — 4× M3-6H THRU evenly spaced circumferentially

Dexterous Hand Selection Guide

Compare the full Inspire Robots lineup to find the right hand for your application.

Specification
RH56BFX Dexterous Hand RH56BFX High Speed
Piano Hand
View Product
RH56DFX Dexterous Hand RH56DFX High Force
Workhorse
View Product
RH56E2 Dexterous Hand RH56E2 Tactile
Heavy Load
View Product
RH56F1 Dexterous Hand RH56F1 All-Metal
Flagship
View Product
RH5DG2 Dexterous Hand RH5DG2 High DOF
G2 Series
View Product
RH56H1 Dexterous Hand RH56H1 Ultra Compact
Ultimate Power
View Product
Mechanical
Degrees of Freedom 6 6 6 6 13 6
Number of Joints 12 12 12 12 18 11
Weight 540g 540g 790g ±10g 620g ±10g 990g ±10g 470g ±10g
Index/Middle Finger Lateral Swing ±15°
Electrical
Control Interface RS485 / CAN RS485 / CAN RS485 / CAN
ModbusTCP
EtherCAT + RS485
EtherCAT + CAN FD
EtherCAT + RS485
EtherCAT + CAN FD
EtherCAT + RS485
EtherCAT + CAN FD + RS485
Operating Voltage DC 24V ±10% DC 24V ±10% 24V ±10% 24V – 48V 14V – 48V 24V – 60V
Peak Current 2A 2A 4A 5A @ 24V 7.5A @ 24V 5A @ 24V
Performance
Repeatability ±0.20mm ±0.20mm ±0.20mm ±0.2mm ±0.2mm ±0.2mm
Four-Finger Flexion Speed 570°/s 260°/s >200°/s >107°/s 175°/s >110°/s
Thumb Flexion Speed 150°/s 70°/s >130°/s >37°/s 155°/s >65°/s
Thumb Lateral Rotation Range >65° >65° 75° – 170° 60° – 180° 60° – 170° 70° – 170°
Thumb Lateral Rotation Speed 235°/s 107°/s >130°/s >155°/s 165°/s >157°/s
Hand Closing Time 0.4s 0.8s 0.8s ≤0.8s ≤0.8s ≤0.8s
Max Fingertip Pressure 8 kg 8 kg 8 kg 8 kg 8 kg 8 kg
Force
Thumb Fingertip Strength 6N 15N 30N ≥15N ≥20N ≥15N
Finger Fingertip Strength 4N 10N 28N ≥10N ≥10N ≥10N
Force Resolution 0.50N 0.50N ±0.05N 0.1N 0.1N 0.1N
Tactile Sensing
Tactile Sensors 5 / 17 8 8 260170 fingertip + 90 palm
Tactile Sensing Range 0 – 30N 30N 30N 30N
Tactile Sensor Accuracy ≤5% FS 5% FS 5% FS 5% FS
