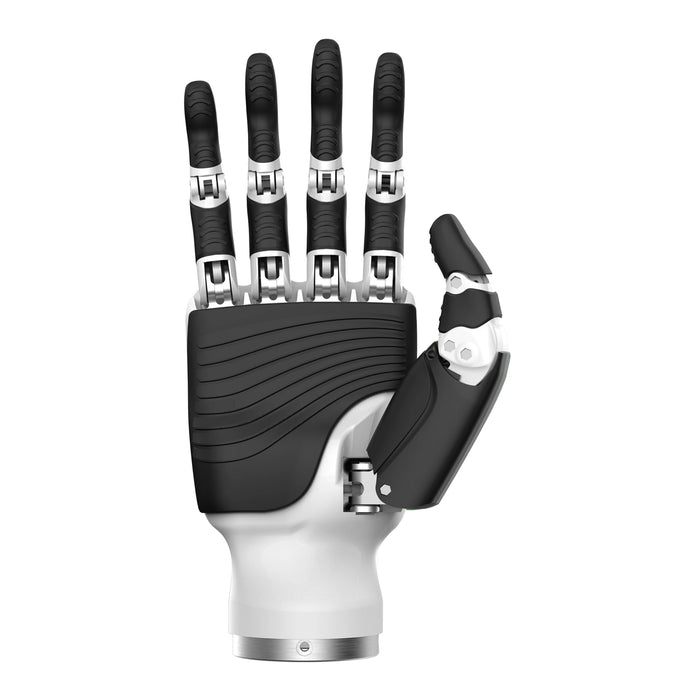

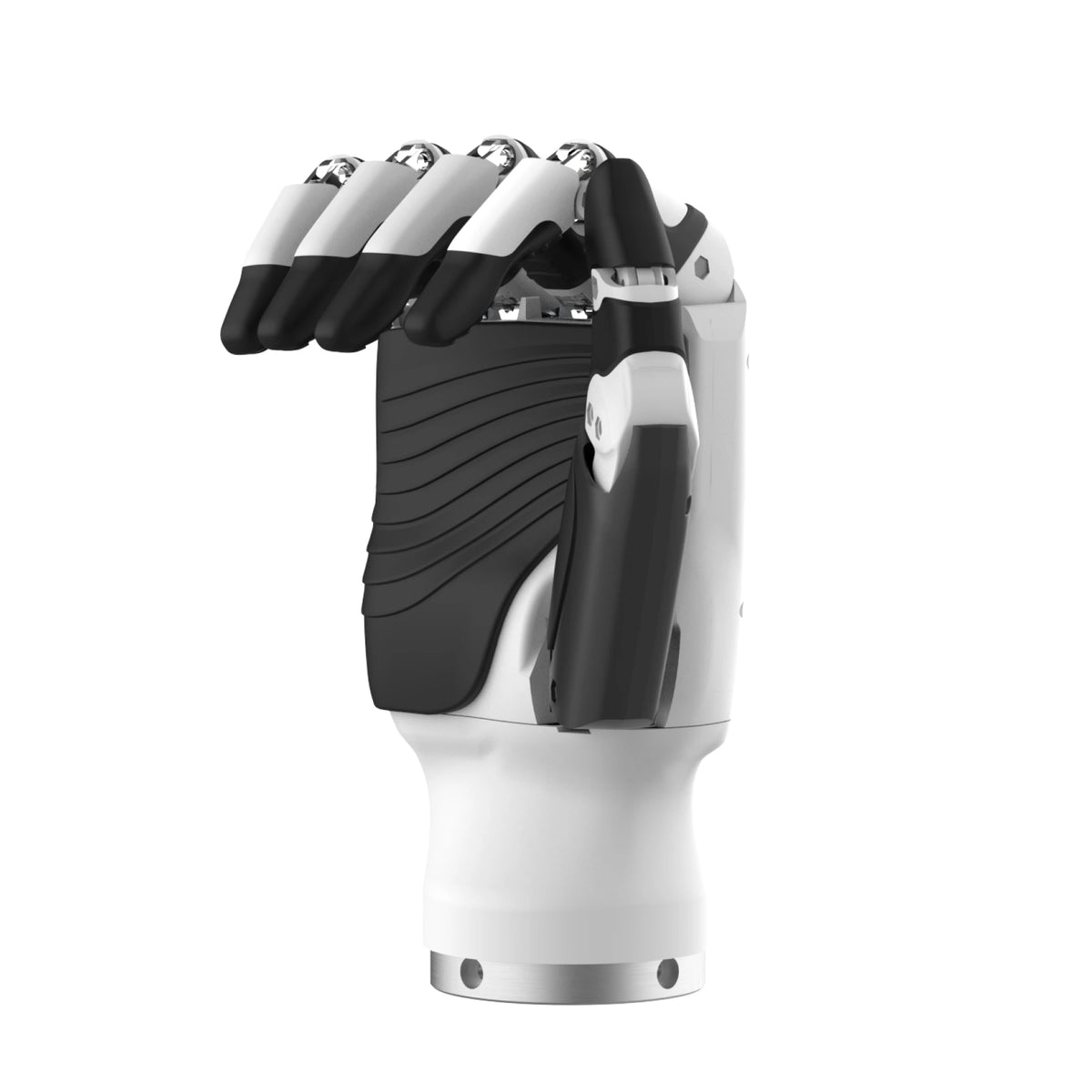

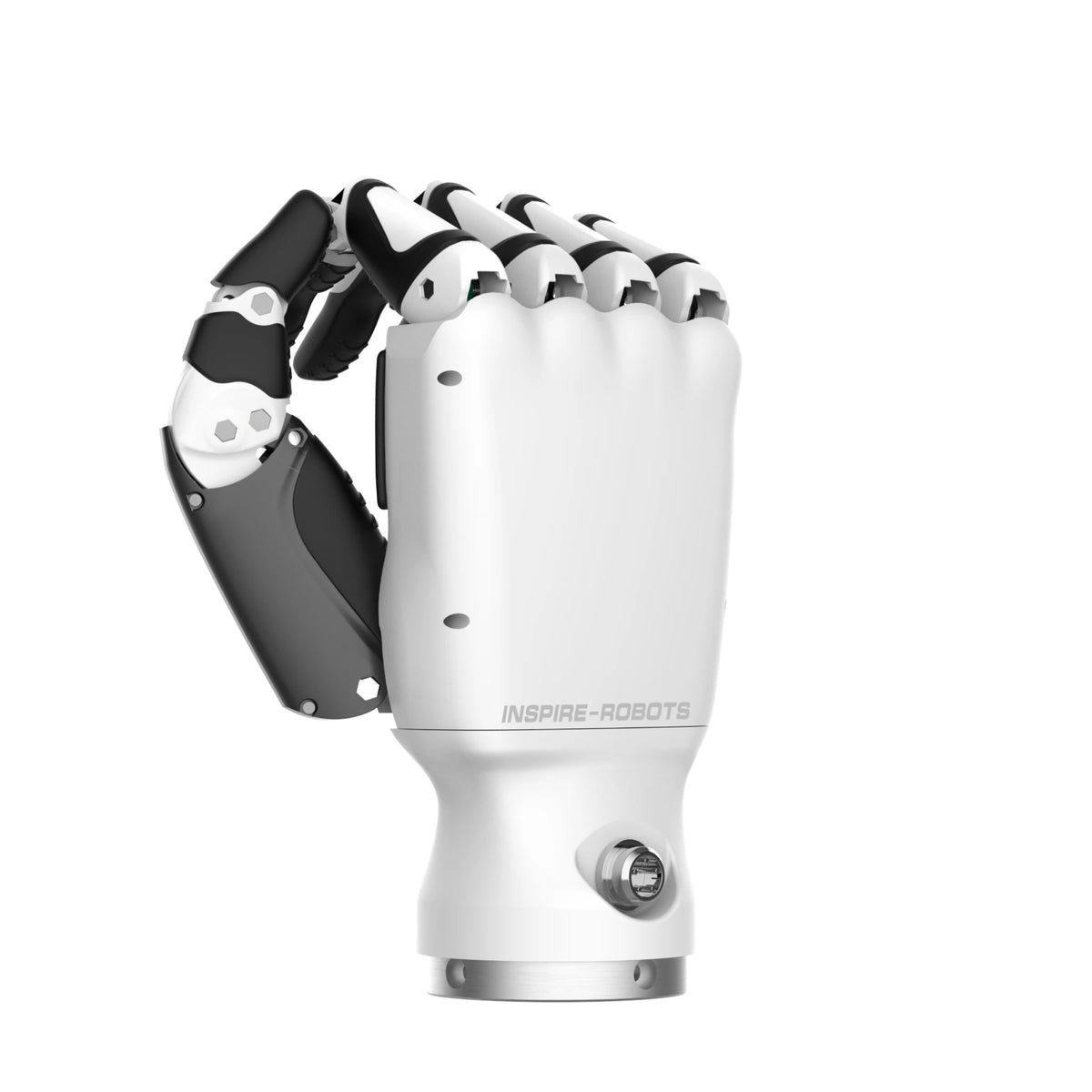

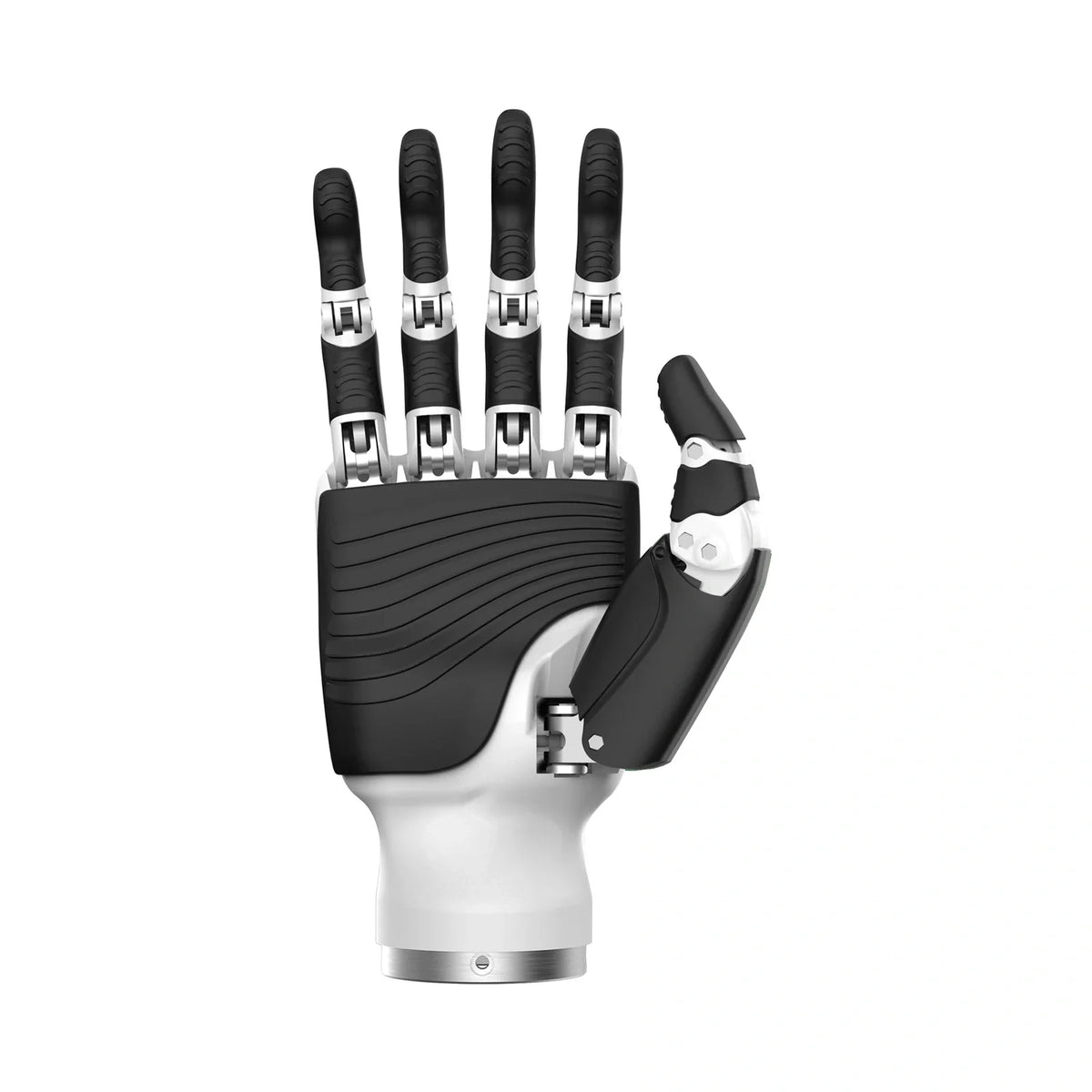

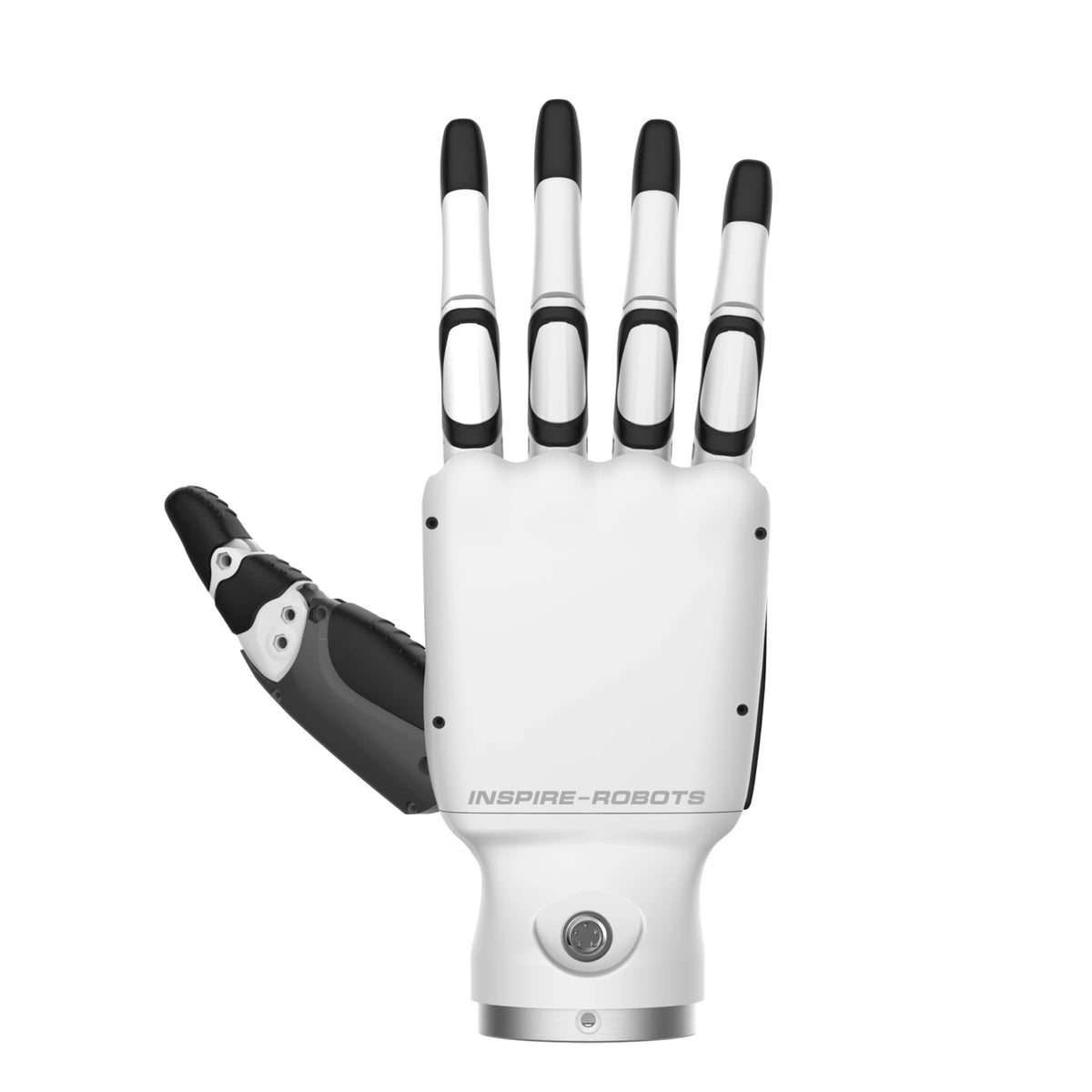

Inspire Robots RH56DFX Dexterous Hand

The RH56DFX is the balanced workhorse of the Inspire Robots RH56 lineup — combining 15N thumb grip force and 10N per-finger force with a 260°/s flexion speed capable of handling real grasping workloads. Where the BFX prioritizes speed, the DFX prioritizes force: delivering 2.5× the grip strength with integrated absolute position sensors and force sensors providing real-time feedback throughout every motion.

Six integrated micro linear servo actuators drive six degrees of freedom across 12 joints. Configurable force thresholds allow the hand to adapt grip pressure to object hardness — holding delicate items without crushing and heavier loads without slipping. Power-off self-locking holds position without continuous power, making it practical for sustained grasping tasks. Available in left and right configurations with RS485 or CAN control interface.

• 15N thumb / 10N per-finger grip force — 2.5× stronger than the RH56BFX; built for real grasping workloads
• 6 micro linear servo actuators — compact linear drive architecture powering all 6 DOF
• 6 integrated force sensors — real-time force feedback with configurable grip thresholds per finger
• Absolute position sensors — precise positional awareness throughout every motion
• 8 kg passive load capacity per finger — handles significant payloads without structural compromise
• Power-off self-locking — holds grip position without power; no repositioning required on startup
• ±0.20mm repeatability — sub-millimeter precision across all 6 DOF
• RS485 or CAN control interface — select the protocol that matches your control stack
• ROS / ROS 2 compatible — plugins available for direct integration
• Left and right hand configurations — available as matched pairs for bimanual setups

• VR/XR teleoperation — force-sensitive remote grasping where grip strength and feedback matter
• Prosthetics research and development — human-level grip force with real-time feedback for assistive device research

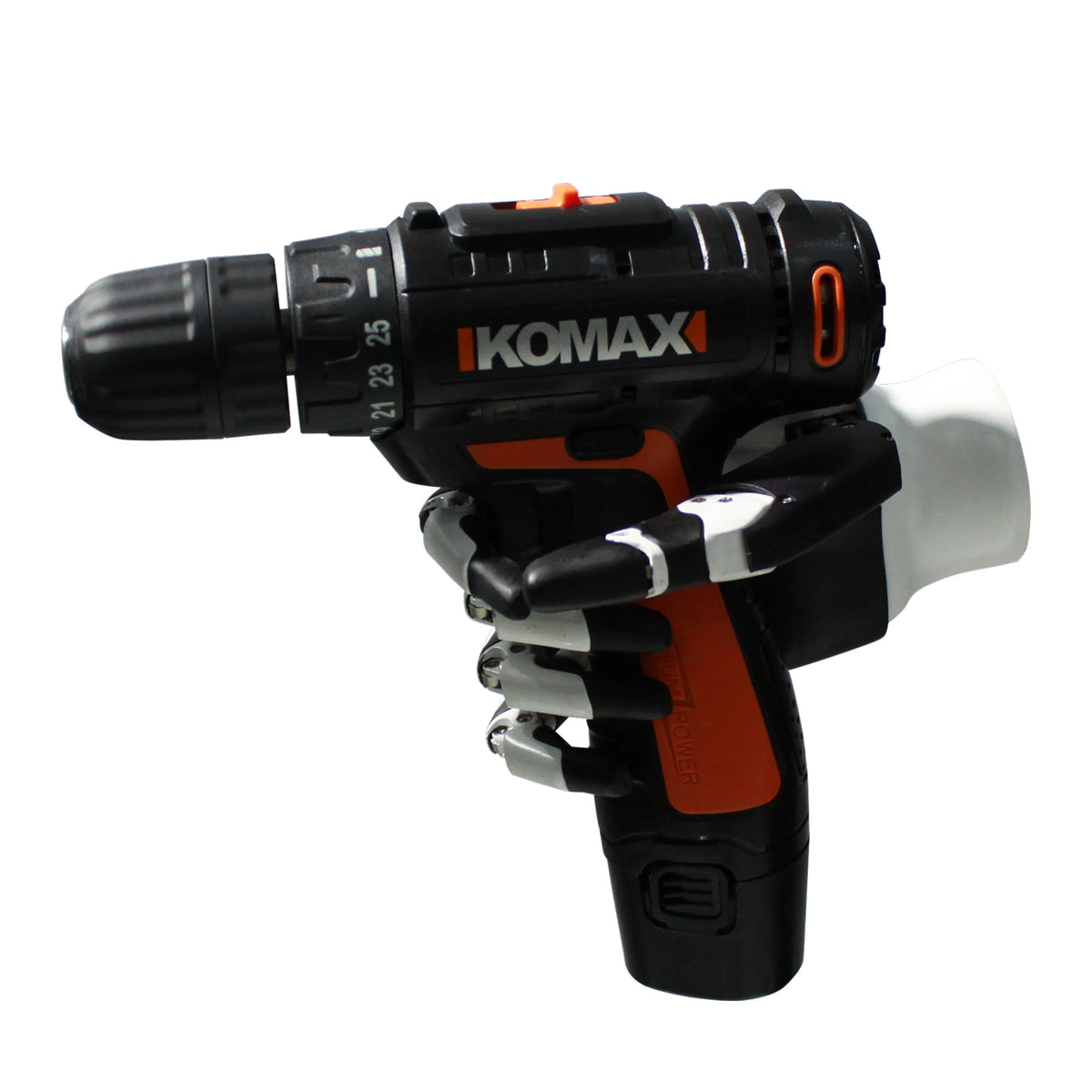

• Robot manipulation research — pick-and-place, tool use, and contact-rich tasks requiring controlled force
• AI training data collection — high-fidelity grasping datasets for dexterous manipulation models
• Industrial end-effector replacement — human-like grasping for objects parallel grippers cannot handle
• Unmanned laboratory automation — handling lab consumables, pipettes, and varied containers
• Special industry applications — hazardous environment handling, elderly and disability assistance

• Control: ROS / ROS 2 (plugins available), RS485 and CAN bus systems
• Robotic arms: Universal Robots (UR), Kinova, UFactory xArm, Franka, and other RS485/CAN-compatible arms
• Teleoperation input: MANUS Prime 3 Metagloves, MANUS Quantum Metagloves
• Wrist mount: Standard humanoid wrist flanges — Ø38mm and Ø50mm
• Humanoid platforms: Compatible with major humanoid robot arms using RS485 or CAN wrist interfaces
