Inspire Robots RH56BFX Dexterous Hand

The RH56BFX — widely known as the Pianist — is Inspire Robots' speed-optimized dexterous hand, built for applications where rapid, fluid finger motion is the priority. With a peak four-finger flexion speed of 570°/s, it is designed for high-frequency coordinated finger movement such as gesture interaction, musical instrument demonstrations, fast teleoperation, and robotics research.

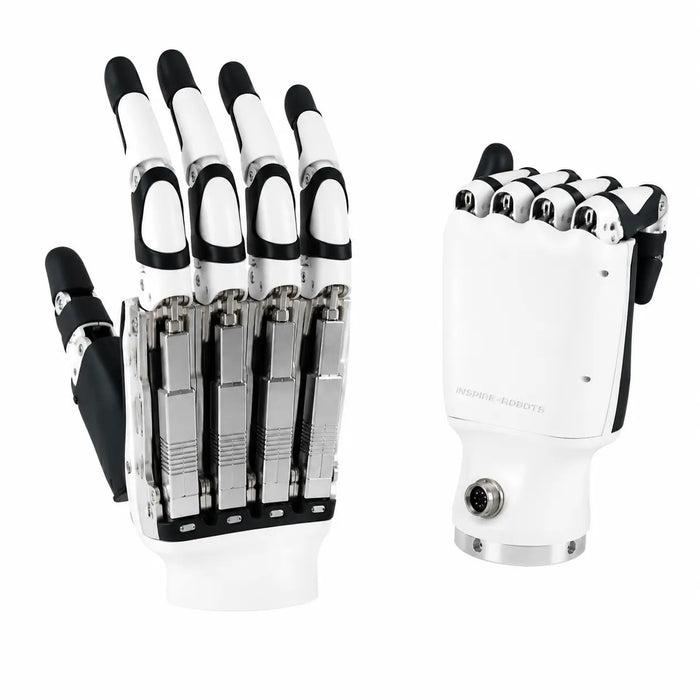

Six integrated micro linear servo actuators drive 6 degrees of freedom across 12 joints, with built-in force sensors providing real-time feedback throughout motion. Power-off self-locking allows the hand to hold its position without continuous power, so no repositioning is required on startup. The RH56BFX is available in left-hand and right-hand configurations with RS485 or CAN control interface options.

Package note: This product is available in Without Wrist and With Wrist options. If your robot arm, humanoid platform, or teleoperation setup requires a mechanical wrist, choose the With Wrist package.

• 570°/s four-finger flexion speed — fastest in the RH56 family, enabling rapid gesture execution and high-frequency teleoperation
• 6 degrees of freedom — dexterous hand motion across 12 joints
• 6 micro linear servo actuators — compact linear drive architecture powering all RH56 motion
• 6 built-in force sensors — real-time grip force feedback with configurable thresholds per finger
• Power-off self-locking — hand holds its position without power; no repositioning required on startup
• ±0.20mm repeatability — sub-millimeter precision across all 6 DOF
• RS485 or CAN control interface — select the protocol that matches your control stack
• ROS / ROS 2 compatible — suitable for robotics research and integration workflows
• Left and right hand configurations — available individually or as matched pairs for bimanual setups
• Human-scale form factor — designed for humanoid robot and teleoperation projects
• Optional mechanical wrist — choose the With Wrist package if your setup requires a wrist mechanism

• High-speed VR/XR teleoperation — fast finger response for remote hand-control workflows

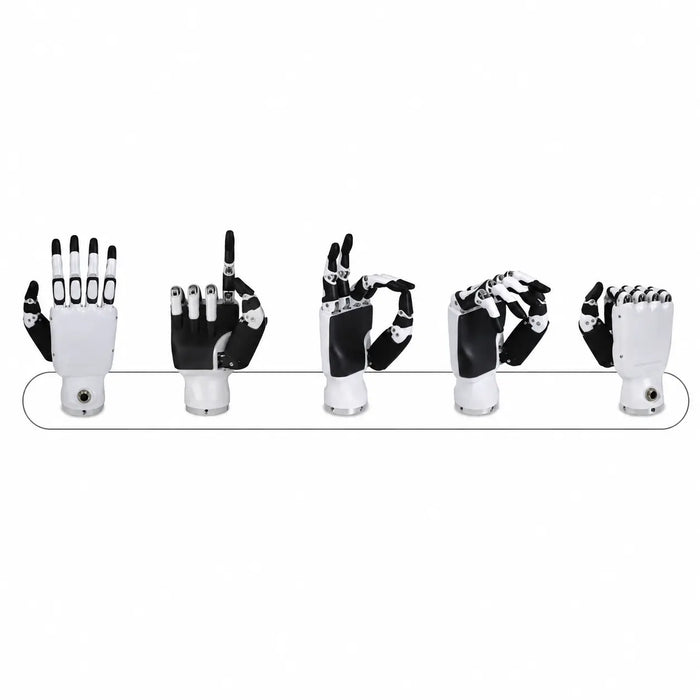

• Gesture-based humanoid interaction — expressive hand motion, sign language research, gesture demos, and interaction testing
• Piano and instrument demonstration robots — rapid flexion speed for musical and coordinated finger-movement demonstrations
• Gesture recognition research — fast, repeatable finger poses for vision systems and AI training
• AI embodied motion learning — high-speed motion datasets for dexterous manipulation models
• Reactive games and demonstrations — fast gesture execution for robotics demos and outreach
• Education and research labs — compelling live demonstrations of humanoid hand capability

• Control: RS485 or CAN bus systems
• Software: ROS / ROS 2 compatible workflows
• Robot platforms: Suitable for compatible robotic arms, humanoid platforms, and custom research systems
• Teleoperation input: Can be paired with data gloves, haptic gloves, motion capture systems, and XR-based control setups

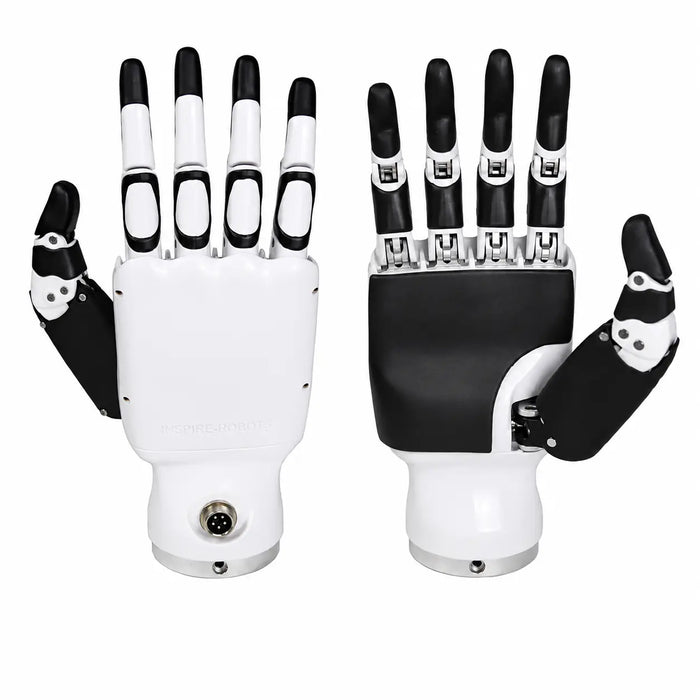

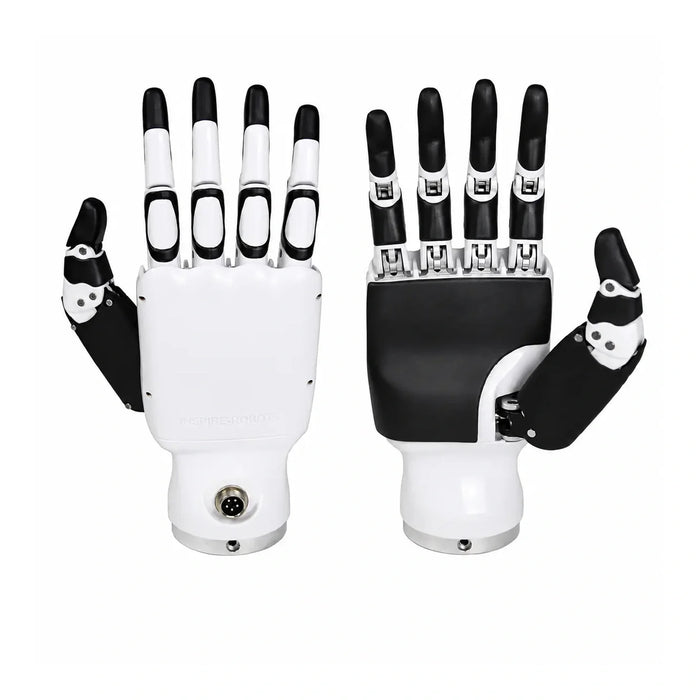

• Hand side: Available in left-hand and right-hand configurations
• Wrist: Choose With Wrist if your setup requires a mechanical wrist; choose Without Wrist if you already have your own wrist, adapter, or mounting solution

• Without Wrist: Dexterous hand only. Best for teams using their own wrist, adapter, or custom mounting solution.
• With Wrist: Dexterous hand with mechanical wrist package. Choose this option if your robot arm, humanoid platform, or teleoperation setup requires a wrist mechanism.
