VIVE Mars CamTrack

by HTC
Sold out
Original price $ 5,000.00 - Original price $ 7,100.00
Original price
$ 5,000.00
$ 5,000.00 - $ 7,100.00
Current price $ 5,000.00
Options: VIVE Mars CamTrack
Overview

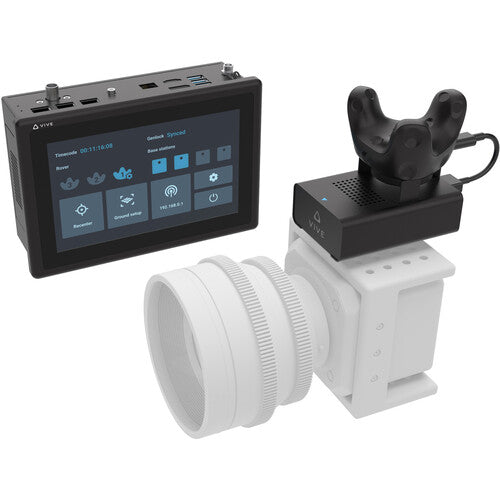

VIVE Mars CamTrack is a professional camera-tracking solution that brings SteamVR tracking into virtual production pipelines. It delivers accurate, low-latency camera position and lens data into real-time engines such as Unreal Engine using Live Link and FreeD protocols.

The system is available in two configurations:

  • Mars CamTrack (Base Kit) – a wired, compact setup ideal for smaller stages and fixed installations

  • Mars CamTrack Studio Edition – a fully expanded, wireless system built for large sets, complex motion, and professional broadcast environments

Both variants use the same Mars core system and software, ensuring consistent workflows while allowing studios to scale hardware based on production needs.

Key Features
  • Real-Time Camera Tracking
    Accurate positional tracking for virtual production and XR environments

  • Unreal Engine Integration
    Native support for Unreal Live Link and FreeD protocols

  • Plug-and-Play Architecture
    Fast setup with minimal configuration using the Mars touchscreen interface

  • Multi-Camera & Multi-Object Support
    Track cameras, props, or additional objects using VIVE Trackers

  • Integrated Calibration Tools
    Includes camera calibration kit for fast alignment between physical and virtual space

  • Inside-Out & SteamVR Tracking Support
    Flexible tracking workflows for different studio environments

Variant-Specific Features

Mars CamTrack (Base Kit)

  • Wired Ethernet workflow (PoE to Rover units)

  • Compact tracking volume using 2 base stations

  • Ideal for fixed stages and entry-level virtual production

  • Lower cost of entry with upgrade path to Studio configuration

Mars CamTrack Studio Edition

  • Wireless tracking support (includes wireless dongles)

  • Expanded tracking volume with 4 base stations (up to ~33 × 33 ft)

  • Lens data capture via included Mars FIZTrack units

  • Additional tracker for multi-object or prop tracking

  • Rugged rolling hard case for transport and mobile productions

Technical Specifications (Mars System)

Display

  • 7" LCD touchscreen

Inputs / Outputs

  • USB-C I/O

  • 4× USB-A outputs

  • 3× RJ45 PoE ports (Rover units)

  • Ethernet (Mars ↔ Router / Rover data)

  • 3.5 mm analog audio input (timecode)

  • REF input for Genlock

  • Pogo pin port

Wireless

  • Wi-Fi (via included adapter)

  • GPS support

Power

  • AC adapter with power brick (included)

Physical

  • Mars unit: 7.7 × 5.3 × 2.6 in

  • Rover unit: 3.7 × 2.6 × 1.9 in

  • Mars weight: 3.1 lb

  • Rover weight: 0.7 lb

Use Cases
  • Virtual production for film & television

  • Broadcast studios and live XR graphics

  • LED volume camera tracking

  • Mixed reality content creation

  • XR research labs and media schools

  • Real-time previs and on-set visualization

Base Kit is best for

  • Small to mid-size studios

  • Fixed camera setups

  • Pilot programs and education labs

Studio Edition is best for

  • Professional broadcast and film sets

  • Wireless camera movement

  • Larger tracking volumes

  • Multi-camera or prop-heavy scenes

What’s In the Box

Mars CamTrack (Base Kit)

  • Mars unit with touchscreen

  • 3 × Rover units

  • 2 × SteamVR Base Station 2.0

  • 2 × VIVE Tracker 3.0

  • Calibration kit

  • Mars power cable

  • Base station power adapters

  • Mars-to-Rover LAN cables

  • Tracker-to-Rover USB cables

  • Limited manufacturer warranty

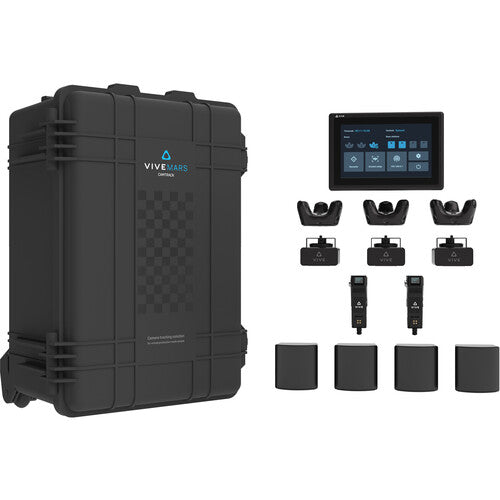

Mars CamTrack Studio Edition

  • Mars unit with touchscreen

  • 3 × Rover units

  • 4 × SteamVR Base Station 2.0

  • 3 × VIVE Tracker 3.0

  • 2 × Mars FIZTrack lens encoders

  • 3 × VIVE wireless dongles

  • Calibration kit

  • All required power and data cables

  • Wheeled hard transport case

  • Limited manufacturer warranty
