Maximum clarity
Pimax Crystal Super
For users who want the most premium Pimax visual experience with modular optical engine options.
Best forPro PCVR
FocusResolution + FOV
Pimax Crystal vs Crystal Light vs Dream Air
Pimax PCVR Buying Guide
Pimax Crystal vs Crystal Light vs Dream Air vs Dream Air SE
Pimax has several high-resolution PCVR headsets, but the right choice depends on what matters most: maximum clarity, lighter weight, Micro-OLED visuals, or a more affordable Dream Air-style setup.
This guide compares the main Pimax options and explains the key difference between Lighthouse / Headset Only and SLAM / With Controllers, so you can avoid buying the wrong tracking setup.
Quick Comparison
Start here if you are trying to decide which Pimax headset fits your setup.
| Model | Best For | Display / Resolution | Tracking | Why Choose It |
|---|---|---|---|---|
| Pimax Crystal Super | High-end visual fidelity, simulation, professional PCVR | High-resolution QLED / optical engine options | SLAM tracking | Maximum clarity and large-FOV options |
| Pimax Crystal Light | PCVR users who want strong resolution at a lower cost | 2880 x 2880 pixels per eye | Inside-out, optional Lighthouse compatibility | Best value for high-resolution tethered PCVR |
| Pimax Dream Air | Premium lightweight PCVR, racing/flight simulation, long sessions | Sony Micro-OLED, 3840 x 3552 pixels per eye | Lighthouse or SLAM | Micro-OLED quality in a very light headset |
| Pimax Dream Air SE | Affordable lightweight Dream Air-style setup | Micro-OLED, 2560 x 2560 pixels per eye | Lighthouse or SLAM | Lower-cost entry into the Dream Air design |
Featured Pimax Headsets
PCVR value

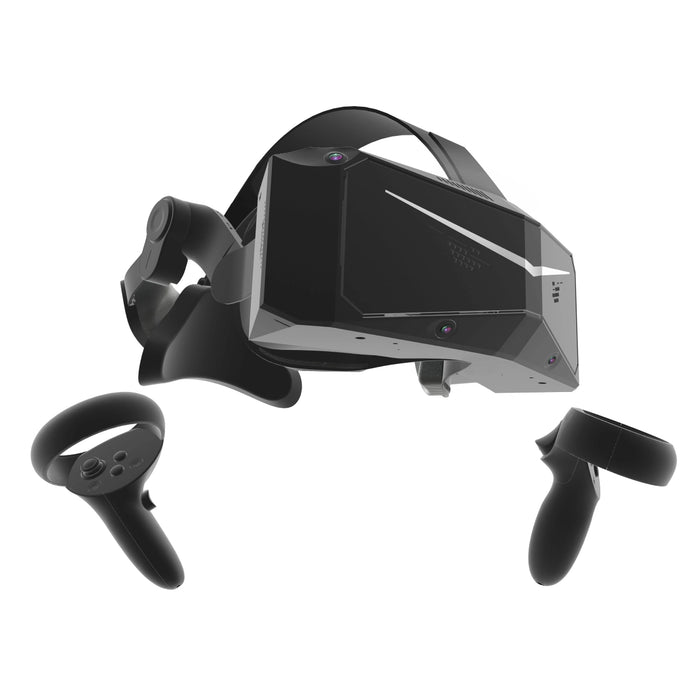

Pimax Crystal Light
A streamlined PCVR headset for users who want sharp visuals without the full Crystal Super price.
Best forPCVR gaming
Resolution2880 x 2880 / eye
Micro-OLED

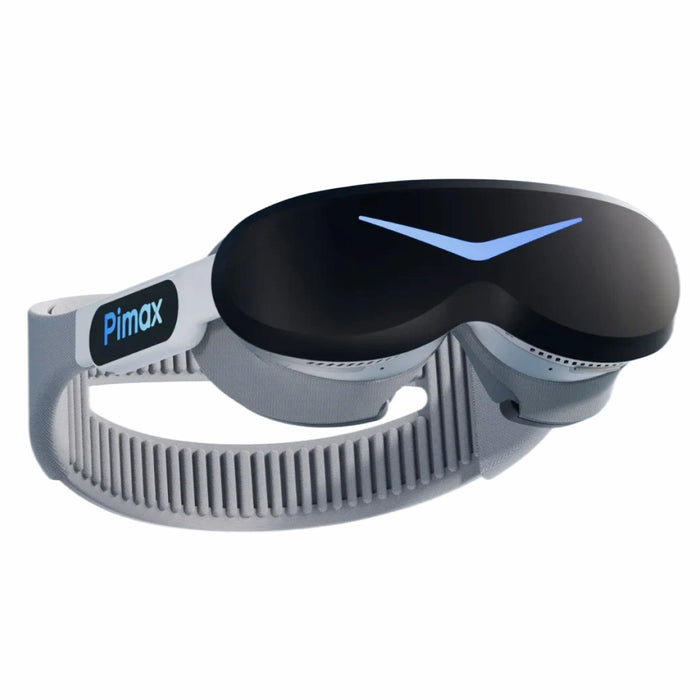

Pimax Dream Air
Ultra-lightweight premium PCVR with Sony Micro-OLED visuals and Lighthouse or SLAM tracking options.
Resolution3840 x 3552 / eye
Weight<170g headset
Affordable Dream Air

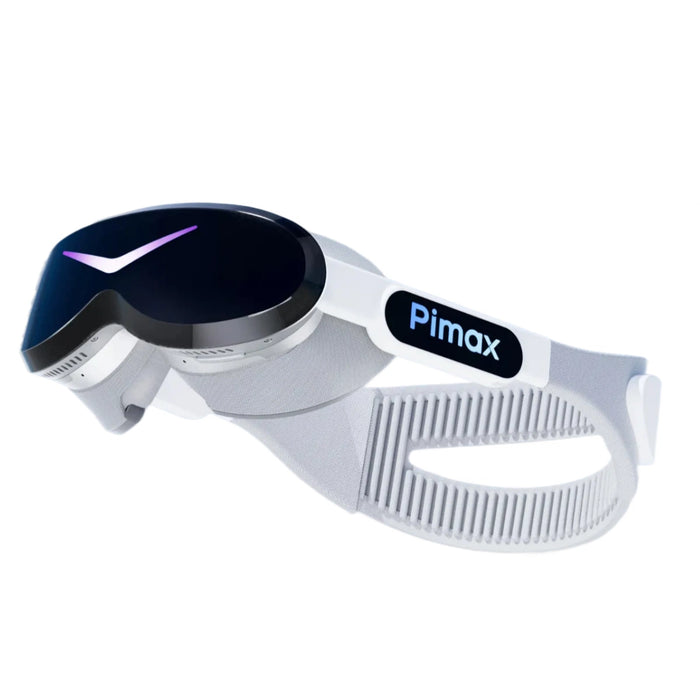

Pimax Dream Air SE
A more affordable lightweight Dream Air-style headset with Micro-OLED visuals and compact design.
Resolution2560 x 2560 / eye
Weight<140g headset
Which One Should You Choose?
Choose Crystal Super for maximum visual fidelity.
Best for serious simulation, design review, and high-end PCVR setups where resolution and field of view are the priority.
Choose Crystal Light for PCVR value.
Best for users who want strong resolution and tethered VR performance without moving into the most expensive Pimax options.
Choose Dream Air for lightweight premium Micro-OLED.
Best for long PCVR sessions, racing and flight simulation, and users who want high display quality in a much lighter headset.
Choose Dream Air SE for a lower-cost lightweight option.
Best for users who want the Dream Air design direction but do not need the full Dream Air resolution.
Lighthouse vs SLAM: The Most Important Buying Detail
Dream Air and Dream Air SE can be sold in different tracking configurations. The headset may look similar, but the setup is different.
Simple rule: If you buy the Lighthouse / Headset Only version, you need external SteamVR base stations and compatible controllers. If you buy the SLAM / With Controllers version, controllers are included and base stations are not required.
| Version | Lighthouse / Headset Only | SLAM / With Controllers |
|---|---|---|
| Tracking type | Outside-in SteamVR tracking | Inside-out tracking |
| Base stations | Required, SteamVR 1.0 / 2.0 compatible, sold separately | Not required |
| Controllers | Not included | Included, 2 x 6DoF controllers |
| Hand tracking | Not integrated | Integrated |
| See-through | Not supported | Supported |
| Tracker support | Supported with SteamVR Trackers | Not supported |
| Best for | Users who already have SteamVR base stations/controllers or want Lighthouse tracking precision | Users who want a more complete package without external tracking hardware |
Base stations and controllers are not included with the Lighthouse / Headset Only version unless separately added as accessories or sold as a custom bundle.
Can You Use Pimax Dream Air With a Laptop?
Yes, Pimax Dream Air can work with a compatible laptop, but the laptop must support the right video output. Dream Air is a PCVR headset and depends on a high-bandwidth DisplayPort connection from the computer.
Laptop compatibility rule: the laptop needs a direct GPU output through Mini DisplayPort or USB-C with DisplayPort support. If using an adapter, it must support DisplayPort 1.4a at 8K resolution / 60Hz.
Step 1
Check the video output
Your laptop should have Mini DisplayPort or USB-C with DisplayPort support. Standard USB-C charging/data ports may not be enough.
Step 2
Confirm direct GPU output
The display output should connect directly to the dedicated NVIDIA or AMD GPU, not only to integrated graphics.
Step 3
Use the right adapter
If an adapter is required, use one that supports DisplayPort 1.4a at 8K / 60Hz for the best compatibility.
How to confirm compatibility
- Open NVIDIA Control Panel: Check the PhysX settings to see which ports are connected to the NVIDIA GPU.
- Check the laptop specs: Look for direct GPU output, MiniDP, USB-C DisplayPort Alt Mode, or Thunderbolt DisplayPort support.
- Use a gaming or workstation laptop: High-resolution PCVR requires a strong dedicated GPU.
- Ask before ordering: If unsure, send Knoxlabs a screenshot of your NVIDIA PhysX settings and laptop model.
For business, education, simulation, or professional use, Knoxlabs can help confirm whether your laptop is ready for Dream Air before purchase.
PC Requirements for Pimax Dream Air
Pimax Dream Air is a high-resolution PCVR headset. For the best experience, your computer should have a dedicated GPU, DisplayPort 1.4a output, USB 3.0 or higher, and Windows 10/11.
| Minimum | Recommended | Ultimate | |
|---|---|---|---|
| Use Case | Casual VR titles and basic simulation | Balanced visual quality and performance | Max settings and heavy simulation scenes |
| GPU |
RTX 2070 / 2070S / 2080 / 2080S / 2080Ti RTX 3060 / 3060Ti / 3070 / 3070Ti RTX 4060 / 4060Ti / RX 5700XT / 6700XT |
RTX 3080 / 3080Ti / 3090 RTX 4070 / 4070S RX 6800 / 6800XT / 6900XT / 6950XT |
RTX 4070Ti / 4070Ti Super / 4080 / 4080 Super / 4090 RTX 5090 RX 7900XT / 7900XTX |
| CPU |
Intel i5-14x00 / i7-12x00 / i9-10x00 or above AMD R7-7700X / R9-5900 or equivalent |
Intel i7-13x00 / i9-12x00 or above AMD R9-7900 or equivalent |
Intel i7-14x00 / i9-13x00 or above AMD R9-7950X or equivalent |
| RAM | 16GB | 16GB | 32GB |
| Storage | 5GB free space | 5GB free space | 10GB free space |
| Other |
GPU: DP 1.4a x1 USB: 3.0 or above OS: Windows 10/11 x64 |
GPU: DP 1.4a x1 USB: 3.0 or above OS: Windows 10/11 x64 |
GPU: DP 1.4a x1 USB: 3.0 or above OS: Windows 10/11 x64 |
Recommended Add-Ons for Lighthouse Versions
If you choose the Lighthouse / Headset Only version of Dream Air or Dream Air SE, add compatible SteamVR tracking hardware.
Required for Lighthouse
HTC SteamVR Base Station 2.0
External SteamVR tracking base station for Lighthouse setups. For most room-scale setups, two base stations are recommended.
Controller add-on
HTC VIVE Controller 2018
Compatible SteamVR controller option for Lighthouse-based VR setups. Add controllers if your headset version does not include them.
Note: Lighthouse versions are headset-only configurations unless a separate bundle is created. Always confirm whether controllers and base stations are included before checkout.
Final Recommendation
For maximum visual quality: choose Pimax Crystal Super.
For PCVR value: choose Pimax Crystal Light.
For the best lightweight premium option: choose Pimax Dream Air.
For a more affordable lightweight Dream Air option: choose Pimax Dream Air SE.
Knoxlabs can help configure the correct headset, tracking version, base stations, controllers, and accessories for PCVR gaming, simulation, professional visualization, and business use.
