OptiTrack Gloves by Manus | for Motion Capture, Virtual Production and full-body Virtual Reality

Sold out
Original price $ 5,999.99 - Original price $ 5,999.99
Original price
$ 5,999.99
$ 5,999.99 - $ 5,999.99
Current price $ 5,999.99
Overview

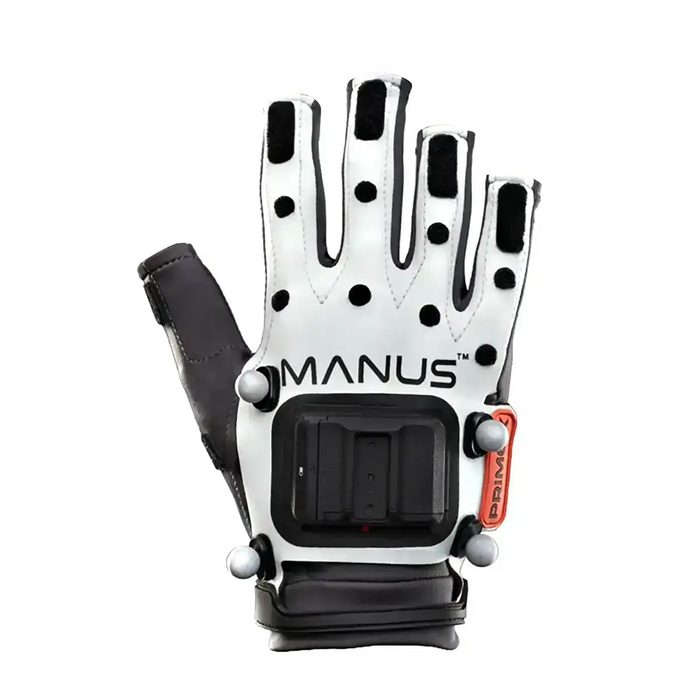

The Manus OptiTrack Gloves provide a groundbreaking solution for integrating hand and finger data into your OptiTrack motion capture workflow. These innovative gloves enable users to directly incorporate Manus finger tracking technology into Motive 3.0 projects, capturing both body and finger movement data in a single, unified file. This seamless integration results in a more streamlined process, as natural hand and finger gestures are recorded during performance, substantially reducing the need for post-recording animation or keyframing. Designed for ease of use and adaptability, the OptiTrack Gloves by Manus enhance the overall quality of motion capture data, while minimizing the impact on your existing pipeline.

Equipped with a perpetual license for Manus Core, the OptiTrack Gloves by Manus offer an unparalleled user experience. Their straightforward calibration process requires just three simple gestures, ensuring an accurate fit for your hands while storing the calibration profile on the glove for use across multiple sessions. With additional features such as compatibility with various sizes, washable and replaceable gloves, and a charging station for stand-alone use, the OptiTrack Gloves by Manus are an invaluable addition to any motion capture project.

See more below...
Specs

Signal latency: <5ms
Sensor sample rate: 90Hz
Battery duration: 5 hours (swappable)
Charging: USB-C (5V)
Weight: 60 grams
Wired Communication: USB-C
Wireless Communication: Proprietary high-performance 2.4 GHz protocol (certified)
Finger sensor type: 5x 2DoF Flexible sensors and 6x 9DoF IMUs
Finger flexible sensor repeatability: >1.000.000 cycles
Orientation sensor accuracy: +/- 2.5 degrees
Textile information: 77% Polyester, 23% spandex

In the Box

1. One pair of Manus OptiTrack Gloves
2. USB-C Cable x2
3. Dongle
4. Batteries x2
5. Charger
6. Mounting adapters
7. Time sync Cable

Gloves

Motive 3.0
Integration

High Fidelity

Plug & Play

1-year
Warranty

FAQ

Stream finger data directly in Motive 3.0

Add Manus finger data directly into Motive 3.0 with the Manus OptiTrack gloves.

Empower your motion capture data with minimal impact on your existing pipeline. Stream highly accurate and detailed finger data into Motive 3.0 effortlessly.

The finger data provided by OptiTrack gloves by Manus will be combined together with the OptiTrack body data inside Motive 3.0.

Motion capture glovesfor OptiTrack.

Stream finger data directly in Motive 3.0

Add Manus finger data directly into Motive 3.0 with the Manus OptiTrack gloves.

Empower your motion capture data with minimal impact on your existing pipeline.

Stream highly accurate and detailed finger data into Motive 3.0 effortlessly. The finger data provided by OptiTrack gloves by Manus will be combined together with the OptiTrack body data inside Motive 3.0.

Quick and easy Calibration

Get started in less than a minute. With only three simple gestures the OptiTrack Gloves' calibration is accurately tailored to your hands.

The calibration profile is then stored on the glove, allowing them to be used over multiple sessions.

Three OptiTrack Gloves Features.

Charging Station

Use OptiTrack gloves by Manus as a stand-alone solution, outside of Motive 3.0, with the Plus Edition. This package comes with a timecoding cable and all the Manus plugins, including the Motionbuilder, Unity, and Unreal Engine plugins.

Multiple Sizes

Additional textile gloves are available, and the electronics module fits both sizes. The OptiTrack gloves are available in the sizes S/M and M/L.

Washable Gloves

The electronics module can be quickly removed from the textile glove, allowing for the glove to be washed or replaced.

Technical Specifications

Signal latency

< 500ms

Sensor sample rate

90 Hz

Battery duration

5 hours (swappable)

Charging time

2 hours USC Type-C

Weight

60 grams

Wired communication

USB Type-C

Wireless communication

Proprietary high performance 2.4 GHz protocol

Supported operating system

Windows 10/11

Finger sensor type

5x 2DoF Flexible sensors and 6x 9DoF IMU’s

Finger flexible sensor repeatability

> 1.000.000 cycles

Orientation sensor accuracy

+/- 2.5 degrees

Textile information

77% Polyester 23% spandex (washable)

Desktop computers

These are the hardware requirements when using Aero with a desktop computer:

Component
PROCESSOR4-core CPU
For example:
Intel Core i5-4590
Intel Xeon E5-1620
AMD Ryzen 5 1500X
or better
GPU*Recommended

NVIDIA  GeForce RTX 3070
NVIDIA GeForce RTX 2080
NVIDIA RTX A4000
NVIDIA Quadro RTX 5000
Minimum

NVIDIA GeForce RTX 3050
NVIDIA GeForce RTX 2060
NVIDIA RTX A2000
NVIDIA Quadro RTX 4000
MEMORY8 GB
STORAGE SPACE2 GB
VIDEO OUTPUT1 x DisplayPort 1.4
USB CONNECTIVITY1 x USB-A 3.0 / 3.1
OPERATING SYSTEMWindows 10 (64-bit)
Windows 11 (64-bit)

* Aero is compatible with NVIDIA GeForce RTX 20- and 30-series GPUs that meet the minimum requirements.
❗ Note that AMD graphics cards are currently not supported.

Laptop computers

These are the hardware requirements when using Varjo Aero with a laptop computer:

PROCESSORHigh-end mobile CPU with 4 cores or more
GPU*High-end NVIDIA laptop GPU with a total graphics power (TGP) of 135W or more:

NVIDIA Geforce RTX 3080 Laptop GPU
NVIDIA RTX A5000 Laptop GPU
MEMORY8 GB
STORAGE SPACE2 GB
VIDEO OUTPUT1 x DisplayPort 1.4
USB CONNECTIVITY1 x USB-C 3.1 port

Use the laptop adapter sold separately in Varjo Store to connect Aero.
Note that the USB port on the laptop must be routed directly to the dedicated NVIDIA GPU and include support for Alternate Mode. See Varjo-Ready computers for Varjo Aero for tested and recommended laptop models.
OPERATING SYSTEMWindows 10 (64-bit)
Windows 11 (64-bit)

* While mobile and desktop GPUs may have identical product names, performance is significantly lower when using mobile GPUs.
❗Note that AMD graphics cards are currently not supported.
❗Note that laptop GPUs have limited processing power compared to desktop GPUs. For the best possible experience, we recommend running simple applications when using a laptop.
